FILTER MART 01-0037 PLEATED PAPER ELEMENT
Quick Overview
Manufactured By: FILTER MART
Manufacturer Part Number: 01-0037
IMS Product Code: 1806881
Packaging: Sold Individually
Description:

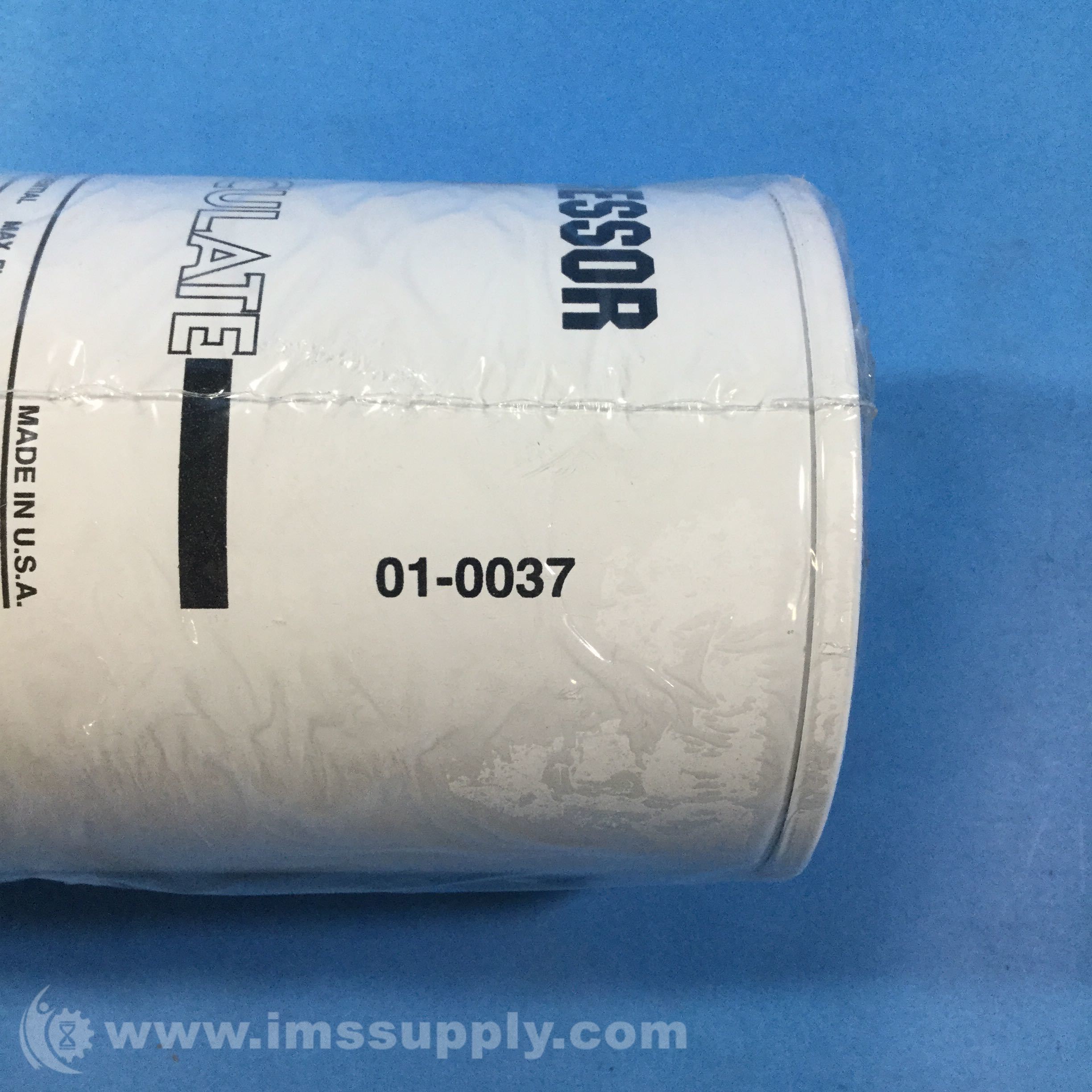

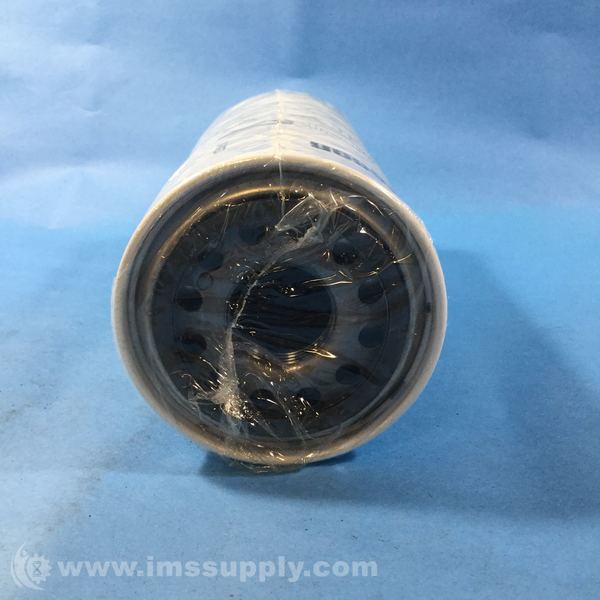

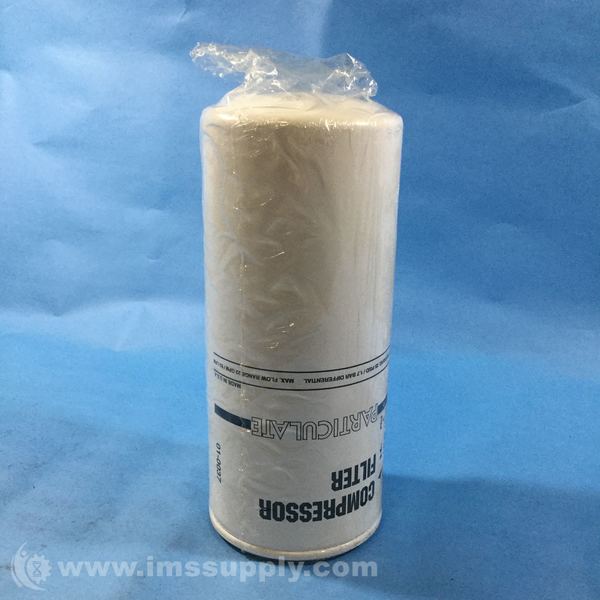

Filter Mart 01-0037 Pleated Paper Element
Specifications:
Performance Data
- Micron Rating: 5.00 NOMINAL
- Beta Rating: N/A
- Collapse Pressure Rating: 100 PSID
- Maximum Temperature: 225 F
- Direction of Flow: OUTSIDE->IN
- Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
- (A) Outer Diameter, Top: 6.00 IN (152.40 MM)
- (B) Outer Diameter, Bottom: 6.00 IN (152.40 MM)
- (C) Inner Diameter, Top: 2.63 IN (66.80 MM)
- (D) Inner Diameter, Bottom: 2.63 IN (66.80 MM)
- (E) Length: 18.00 IN (457.20 MM)
- (F) Thread: NONE
Physical Specifications
- Handle: YES
- Seal Material: CORK
- Type of Adhesive: EPOXY
- Type of Endcap: PLATED STEEL
- Center Tube: PLATED STEEL
- Type of Media: PAPER
- Filter Area: 34 SQ.FT.
- Plating: ELECTROTIN PLATED
- Outer Jacket: YES - METAL
- Configuration: DOUBLE OPEN END
