FLOWLINE L010-1305 OPTIC LEAK SWITCH
Quick Overview
Manufactured By: FLOWLINE
Manufacturer Part Number: L010-1305
IMS Product Code: 2126366
Packaging: Sold Individually
Description:

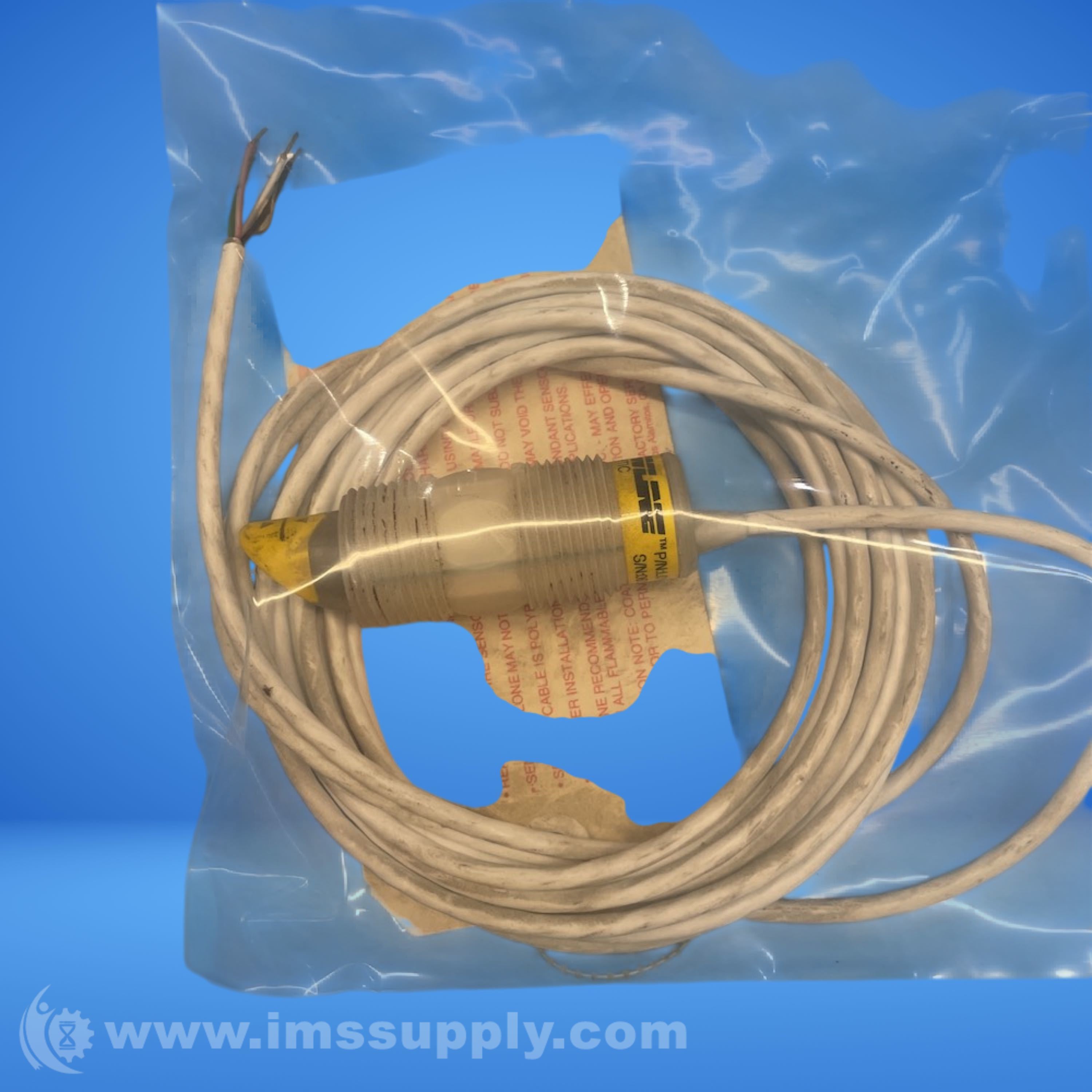

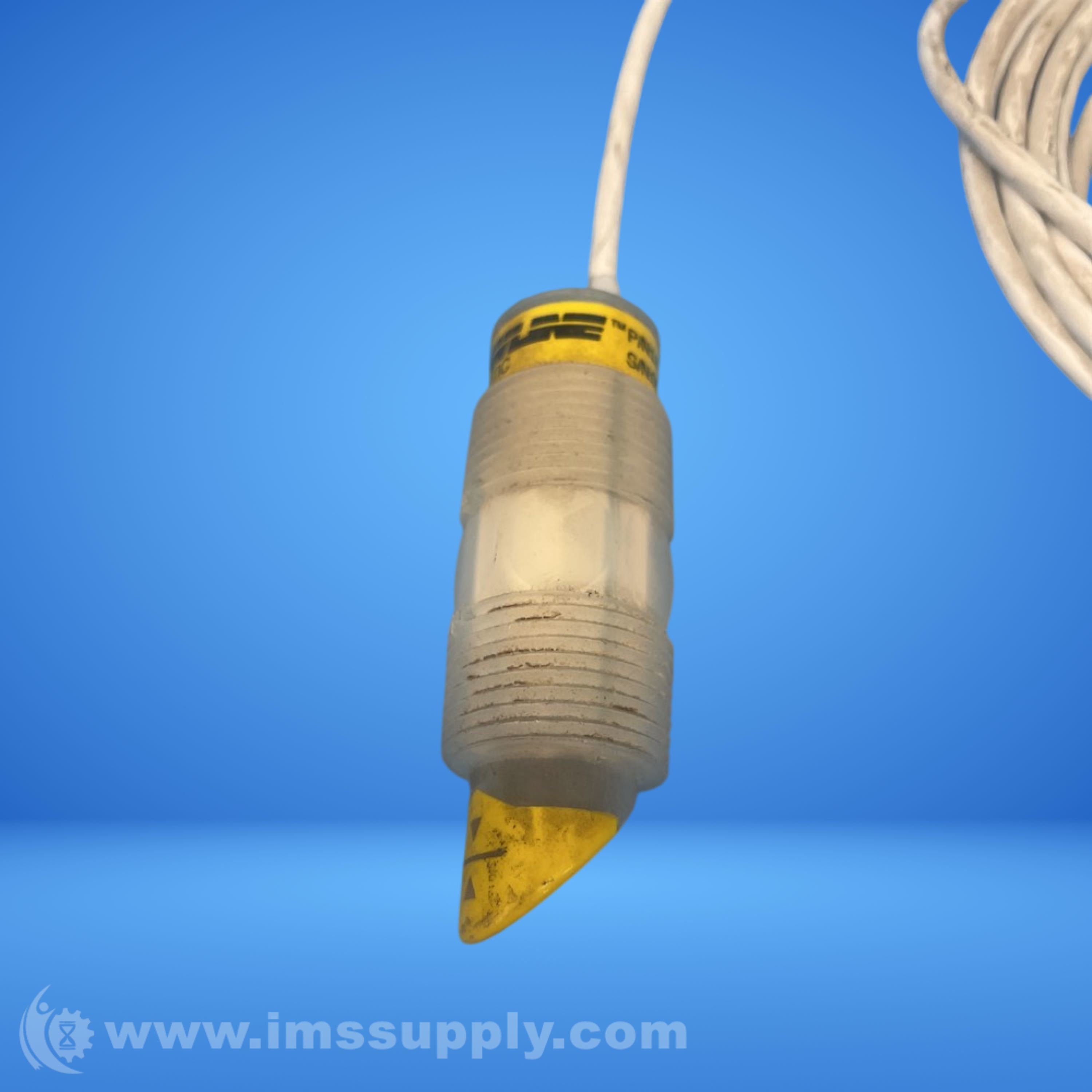

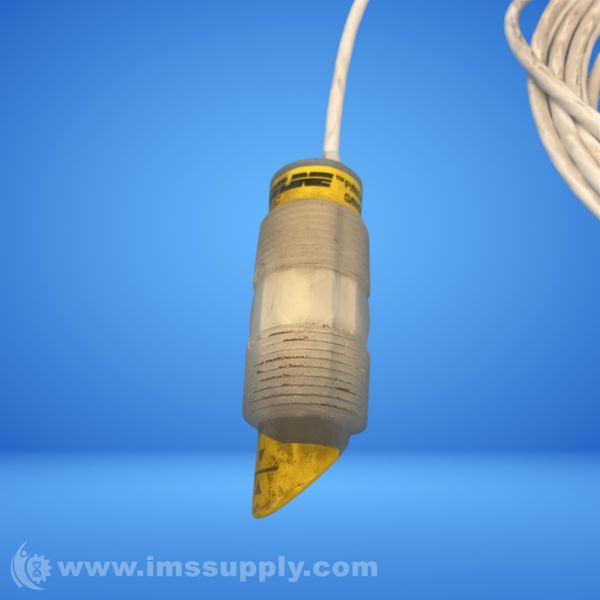

Flowline L010-1305 Optic Leak Switch
General purpose optic leak switch for reliable leak detection in secondary containment sumps, tanks, and piping systems.
Specifications
- Cable Length: 10 ft
- Range: 150 psi
- Type: Leak Detection Switch
- Enclosure Rating: NEMA 6
- Supply Voltage: 12-36 VDC
- Sensing Type: Mechanical
- Mounting: ¾? NPT
- Classification: General purpose
- Pressure: 150 psi / 10 bar
- Material: PP/Viton
- Relay Output: 1 SPST relay, selectable NO/NC
- Weight: 0.75 lbs
- Max Temperature: 176°F (80°C)
- Max Pressure: 150 psi (10 bar) @ 25°, derated @ 1.667 psi (.113 bar) per°. above 25°.
- Cable Type: 4-conductor, #22 AWG (shielded)
- Cable Material: PP
- Sensor Length: Short
- Process Mount: 3/4 in NPT
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
