FOSTER 10-3B BRASS PLUG COUPLER
Quick Overview
Manufactured By: FOSTER
Manufacturer Part Number: 10-3B
IMS Product Code: 2132240
Packaging: Pack of 5
Description:

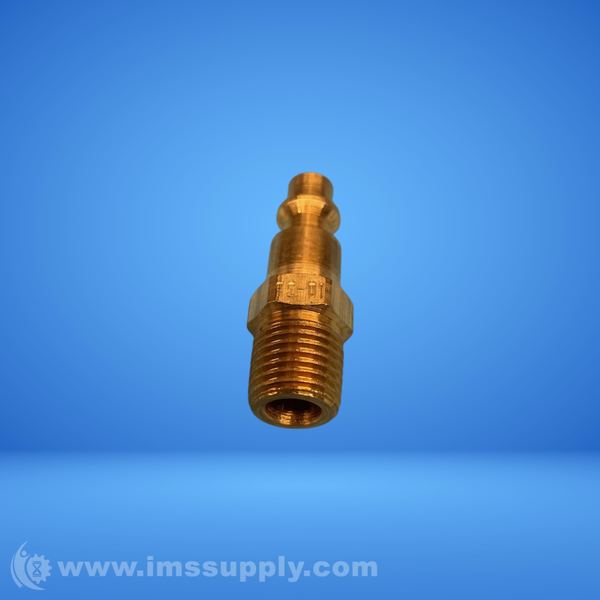

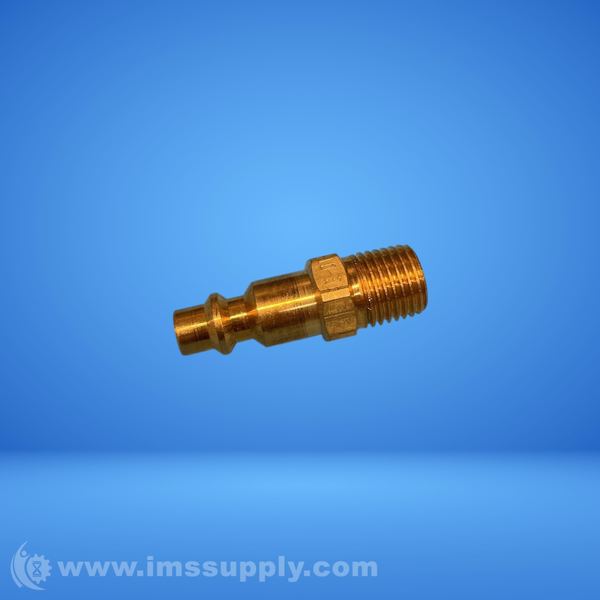

Foster 10-3B Brass Plug Coupler
Foster 3 Series 1/4" x 1/4" MPT Brass Plug couplers are designed for rigid mounting that allows a simple push-to-connect operation, constructed of a solid brass body and a steel valve.
Specifications
- Series: 3 Series
- Shape (Orientation): Straight
- Ends Configuration: 1/4in Male NPT, 1/4in Male ISO-6150 Series B Industrial Pneumatic QD Interchange
- Material(s): Brass
- Working Pressure: 300 PSIG
- Vacuum Data (inches Hg): 27.4
- Temp. Range (Buna-N Seal): -40 deg. to +250 deg. F
- Application: Pneumatic
- Coupling Component: Plug
- Hose Connection Type: Male NPT
- Thread Hose I.D. Tube O.D.: 1/4 in
- Actual Thread Size: 1/4 – 18 NPT
- Working Pressure Range: 251 to 350 psi
- Seal Material: Buna-N
- Body Size: 1/4 in
- Standard Interchange: Industrial
- Industry/Application: Air tools, Industrial/In-Plant, General pneumatic
- Weight: 0.056 lbs
- Number of Items in Set: 5
- Country/Region of Manufacture: United States
New - Open Box (Special):
ITS A PACK OF 5 BUT MISSING 3
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 43 minutes.
