FUJI ELECTRIC 6KM$223F50N1A1 VARIABLE FREQUENCY DRIVE
Quick Overview
Manufactured By: FUJI ELECTRIC
Manufacturer Part Number: 6KM$223F50N1A1
IMS Product Code: 2161626
Packaging: Sold Individually
Description:

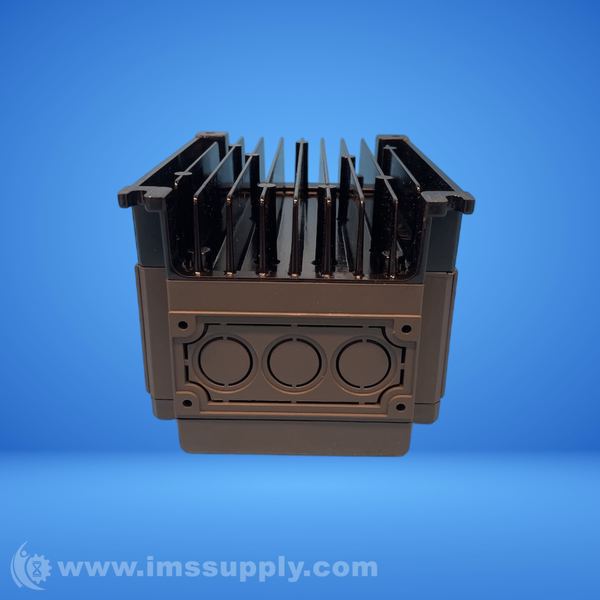

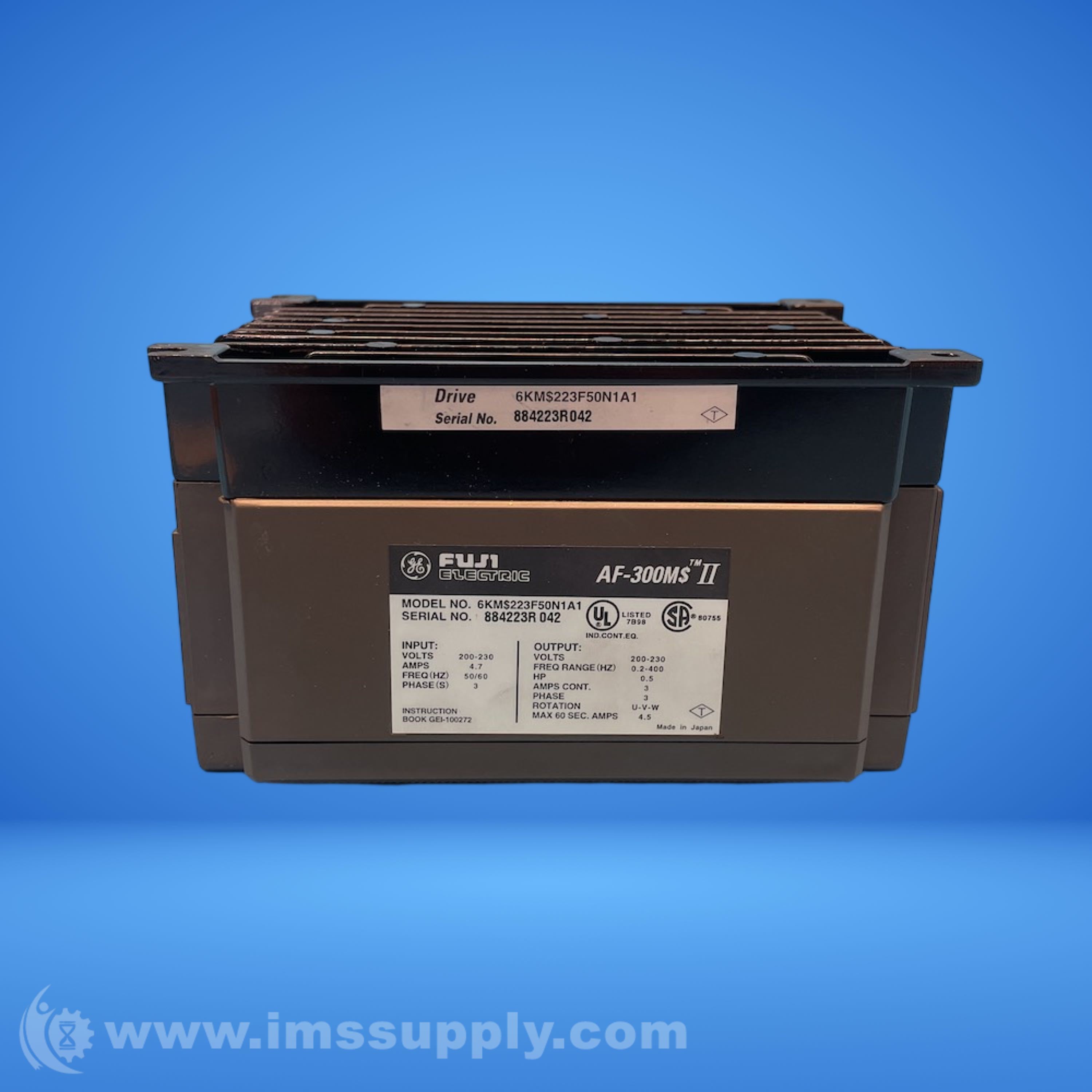

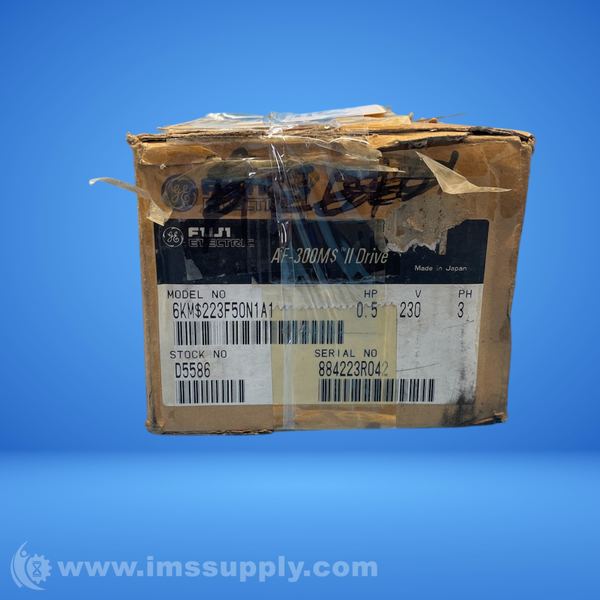

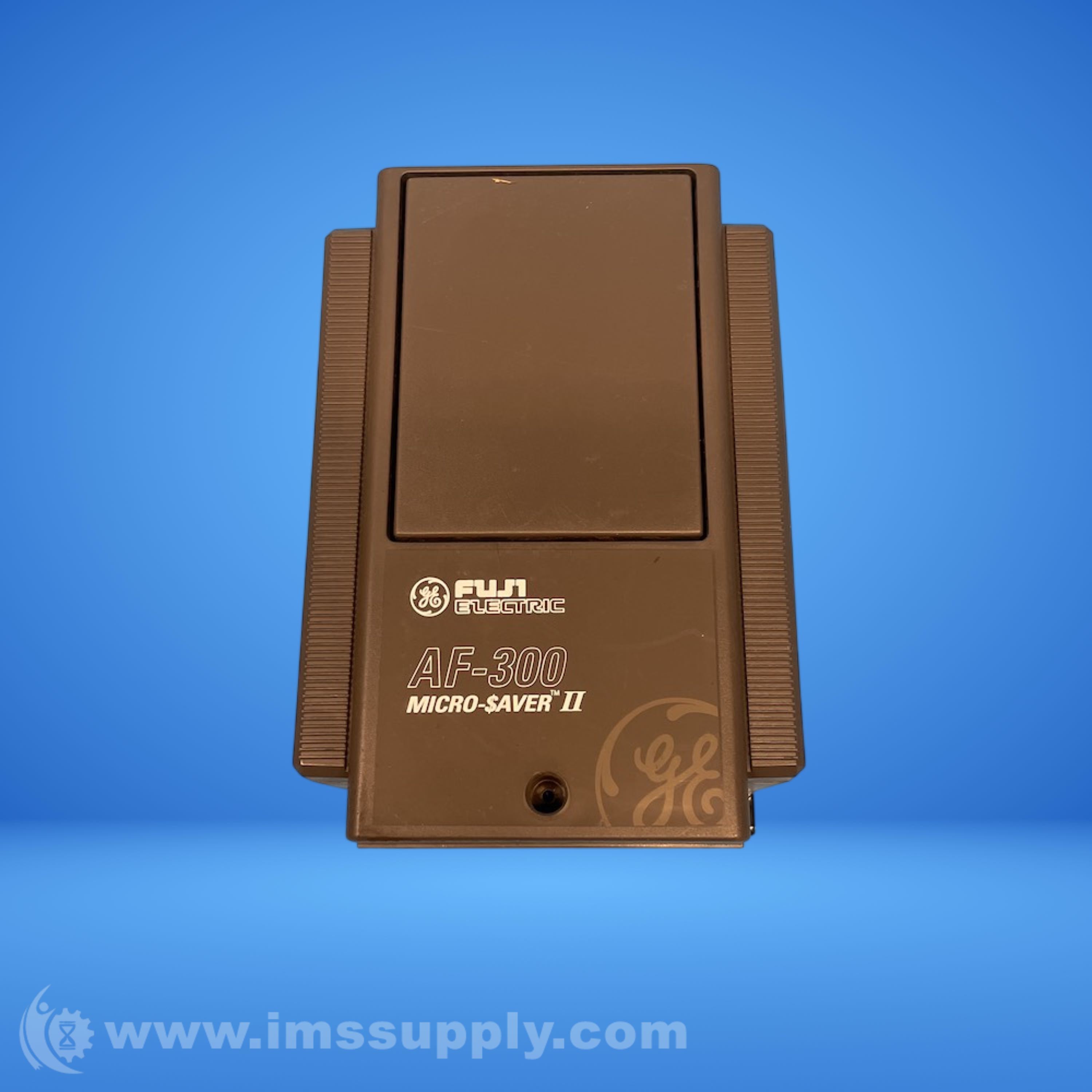

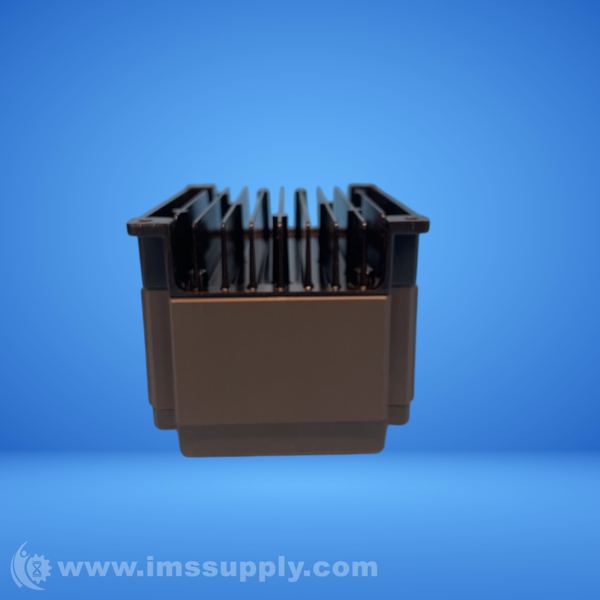

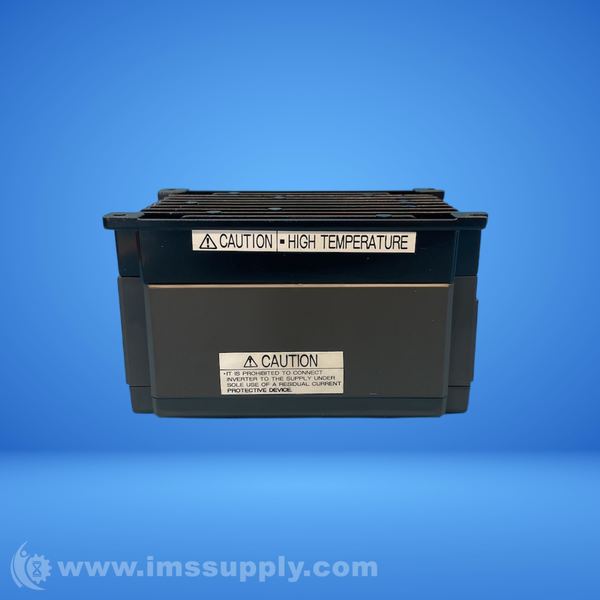

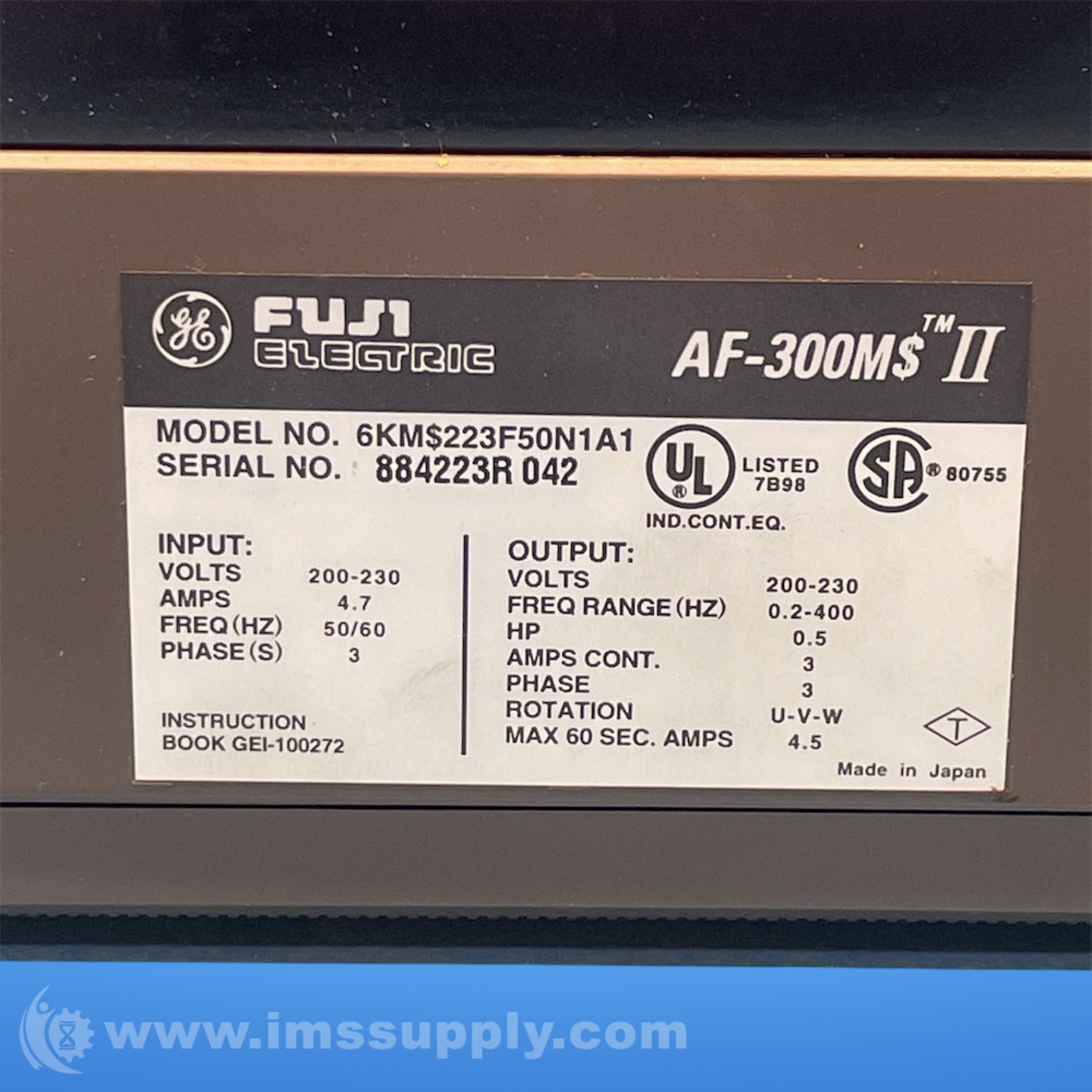

Fuji Electric 6KM$223F50N1A1 Variable Frequency Drive
1/2 HP variable frequency drive for 230VAC 3-phase power systems.
Specifications
- Series: AF-300 M$II
- Power Rating: 1/2 HP
- Input Voltage: 200-230 VAC
- Input Frequency: 50/60 Hz
- Input Current: 4.7 amps
- Phase: 3 Phase
- Output Voltage: 200-230 VAC
- Output Frequency: 0.2-400 Hz
- Output Current: 3 amps continuous, 4.5 amps max for 1 minute
- Enclosure Type: NEMA 1 (Indoor)
- Cooling Method: Convection (No external fan)
- Display: 7-segment 4-digit LED
- Controls: Run, Stop, FUNC/Data, PRG/Reset, Up/Down Arrows
- Dimensions: 158 mm (H) x 109 mm (W) x 90 mm (D)
- Weight: 2.9 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 10 minutes.
