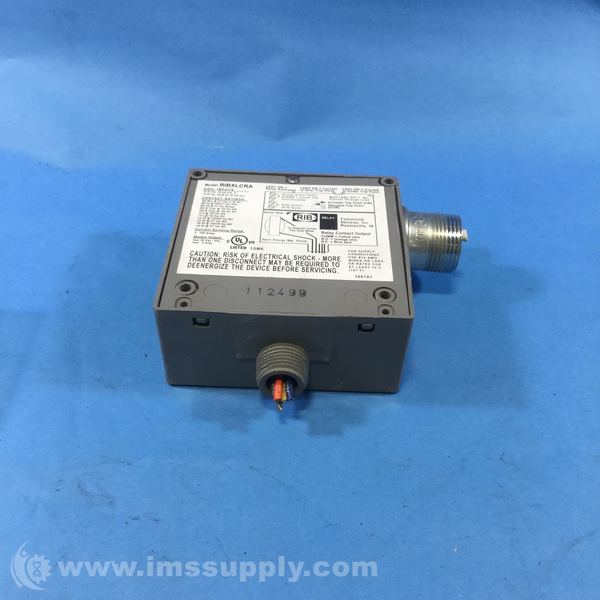

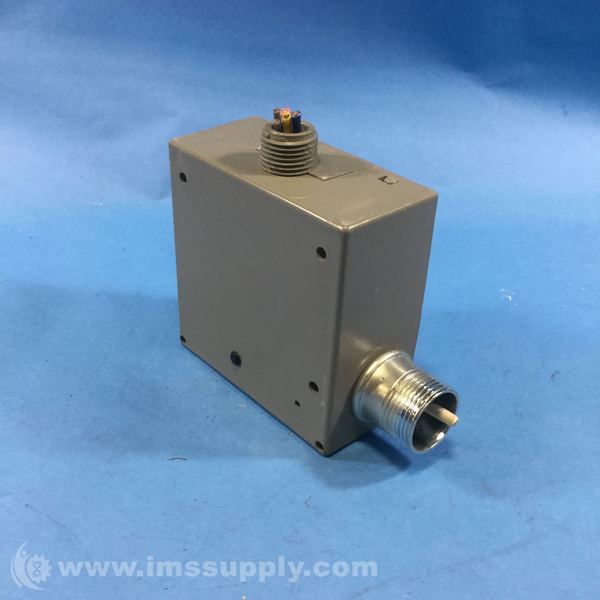

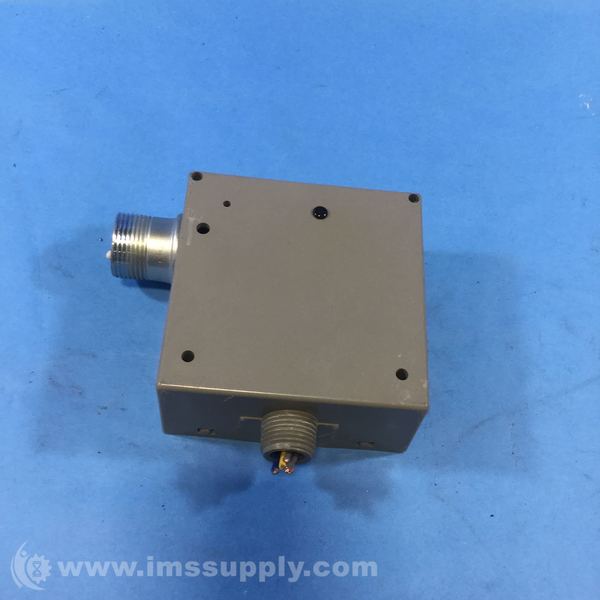

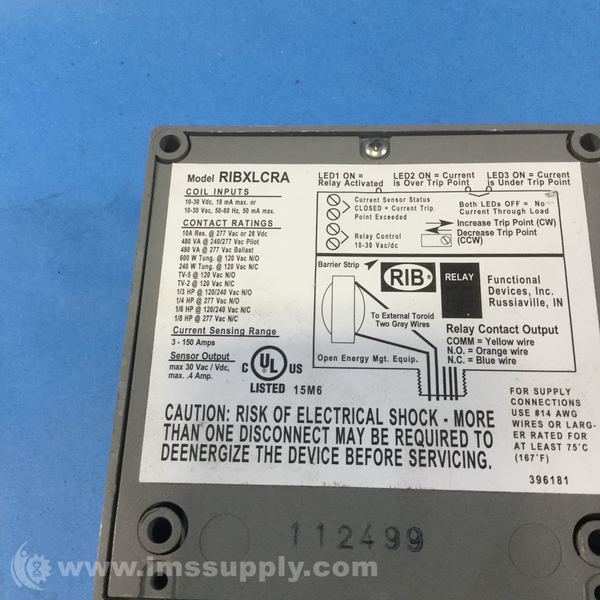

FUNCTIONAL DEVICES RIBXLCRA ENCLOSED RELAY & CURRENT SWITCH
Quick Overview
Manufactured By: FUNCTIONAL DEVICES, INC.
Manufacturer Part Number: RIBXLCRA
IMS Product Code: 1801436
Packaging: Sold Individually
Description:
Functional Devices RIBXLCRA Enclosed Relay & Current Switch
Enclosed 10 Amp Relay/Remote Solid Core Current Switch Combination, Adjustable
Specifications
- Brand: Functional Devices
- MPN: RIBXLCRA
- Current Range: 0.75 - 150 A
- Trip Point Type: Adjustable
- Mount: Split Core
- Frequency: 50/60 Hz
- Switch Rating: 30 VAC/VDC @ 0.4A maximum
- LED Indication: LED#1 ON Relay activated, LED#2 ON Current trip point exceeded
- Response Time: 20mS
- Relay Life Rating: 10 million cycles minimum
- Coil Pull In Voltage: 10 - 30 VAC/VDC Models: 9 VAC, 10 VDC
- Coil Drop Out Voltage: 10-30 VAC/VDC Models: 2.1 VAC, 2.8 VDC
- Off State Leakage: < .03 mA @ 30 VAC/VDC
- On State Voltage Drop: <0.3 VAC/VDC @ 0.1A:, <1.6 VAC/VDC @ 0.4A:
- Lead Wires: 16" (40.6 cm) 600V Rated
- Operating Temperature: -30 to 140 degrees F (-34 to 60 degrees C)
- Operating Humidity: 5 to 95% (non-condensing)
- Enclosure Dimensions: 4"H x 4"W x 1.8"D, (10.2 x 10.2 x 4.6 cm), NEMA 1 with ½" NPT:
- Solid Core Dimensions: 1.86'' x 1.46'' (3 x 3.71 cm )
- Split Core Dimensions: 2.52'' x 2.0'' (6.4 x 5.08 cm)
- Window Size Solid Core: 0.5'' (1.27 cm)
- Window Size Split Core: 0.52'' x 0.52'' (1.32 x 1.32 cm)
- Weight: 1 lb (0.45 kg)
- Approvals: UL File #E68805, (UL 916) and #S7312 (UL 864), CE, RoHs
- Color: Gray
- Coil Voltage: 10-30 VAC/DC
- AMPERAGE: 10
- Sensing Range: 0.125-5 Amps
- Relay Type: Enclosed Relay
- Contact Type: Solid State Contact
- Current Rating: 10 Amps
- Unit Weight: 0.83 lbs
- Country of Origin: USA
- Core Type: SPLIT CORE
- Trip Point: ADJUSTABLE
- Control Output Type: N/O
- Control Signal Output: 0.4A @ 30 VAC/VDC
- Power Relay: N/C | N/O | SPDT
- Relay Rating: 10A @ 277VAC 28VDC
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
