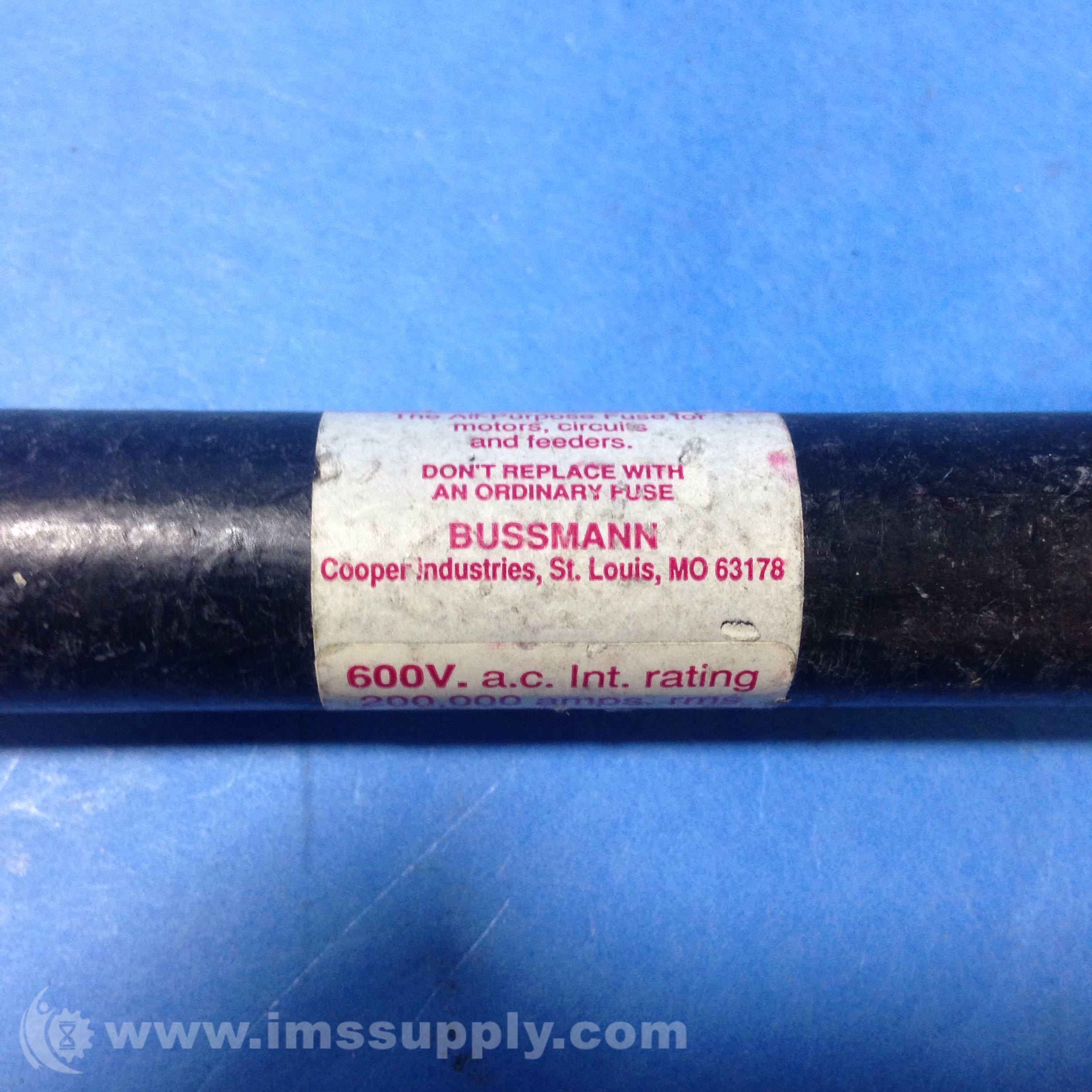

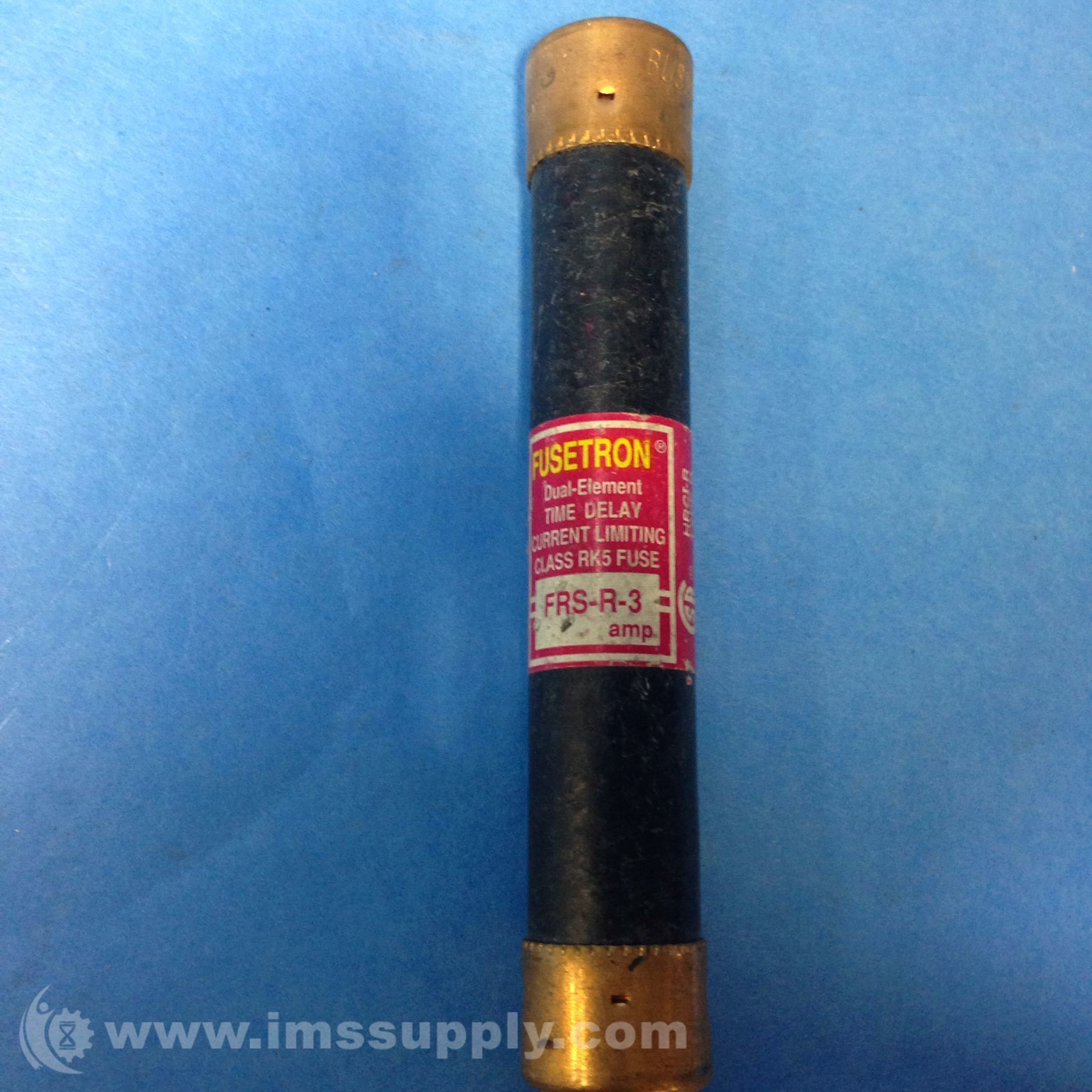

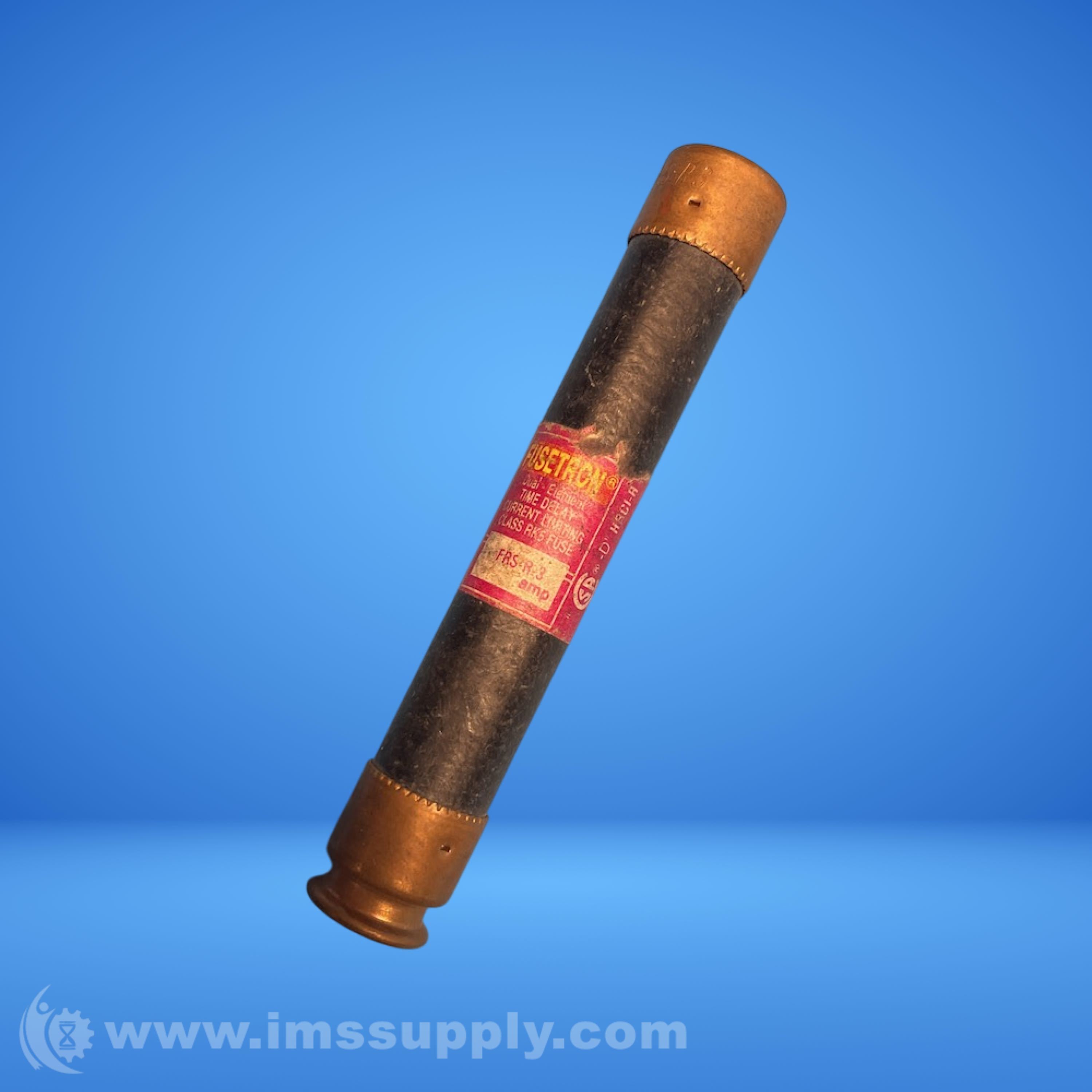

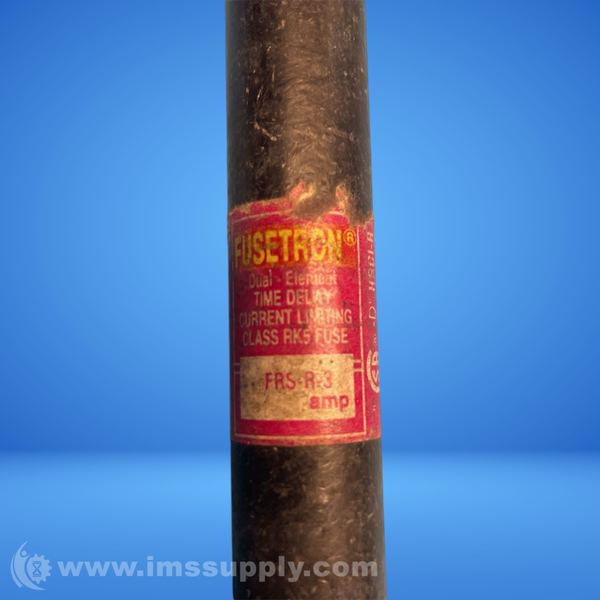

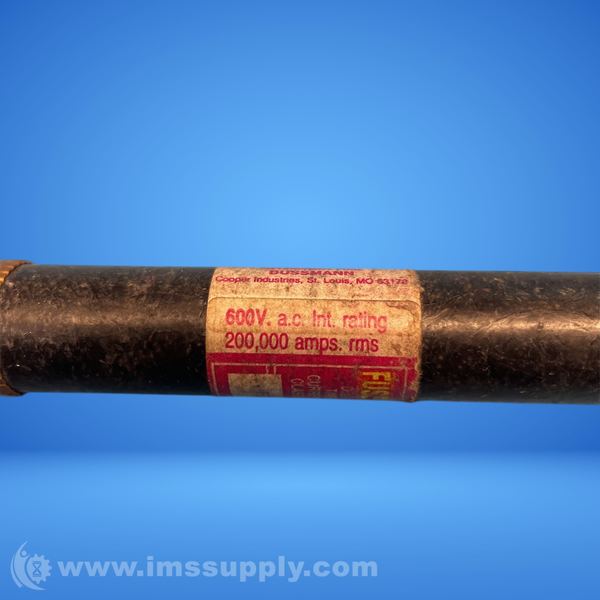

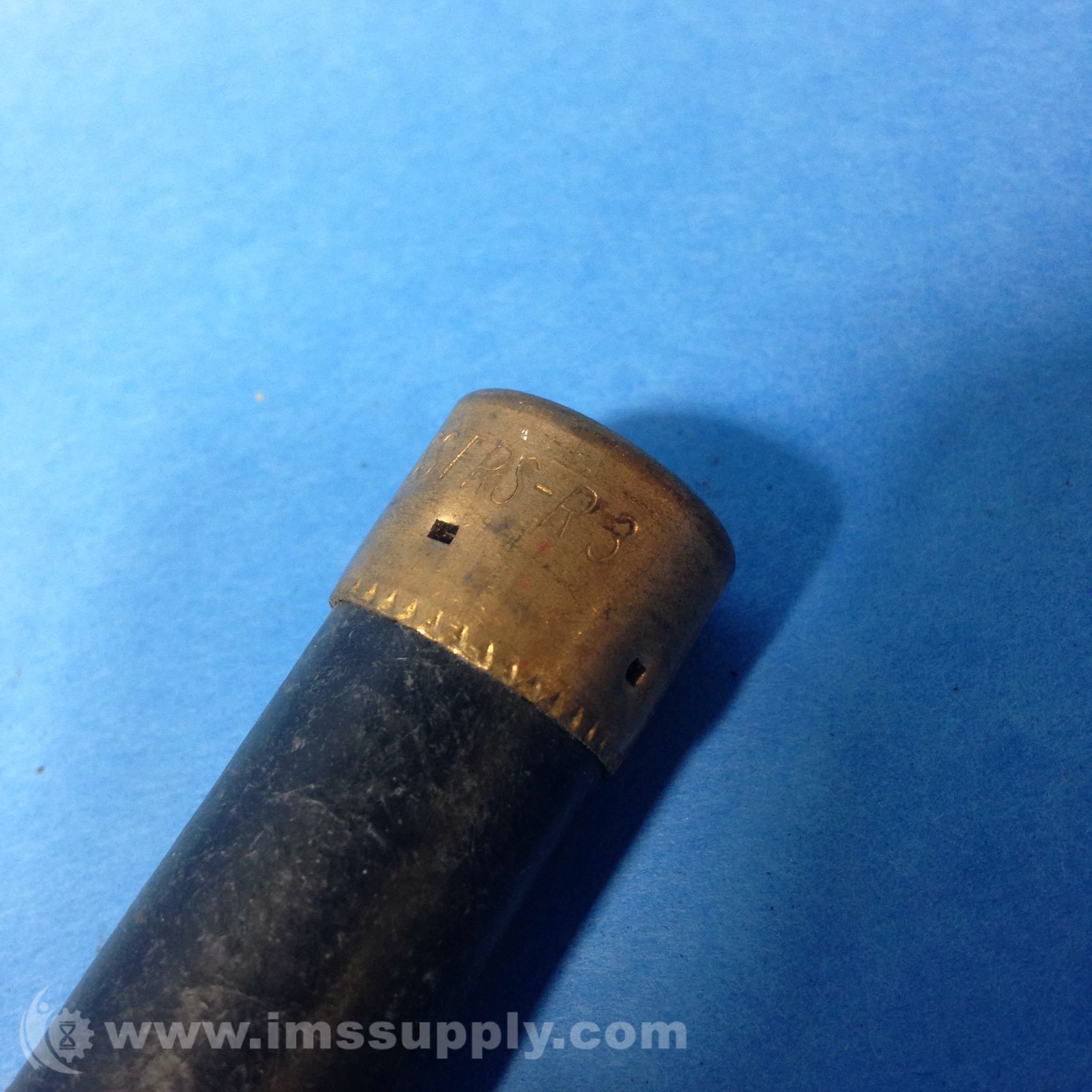

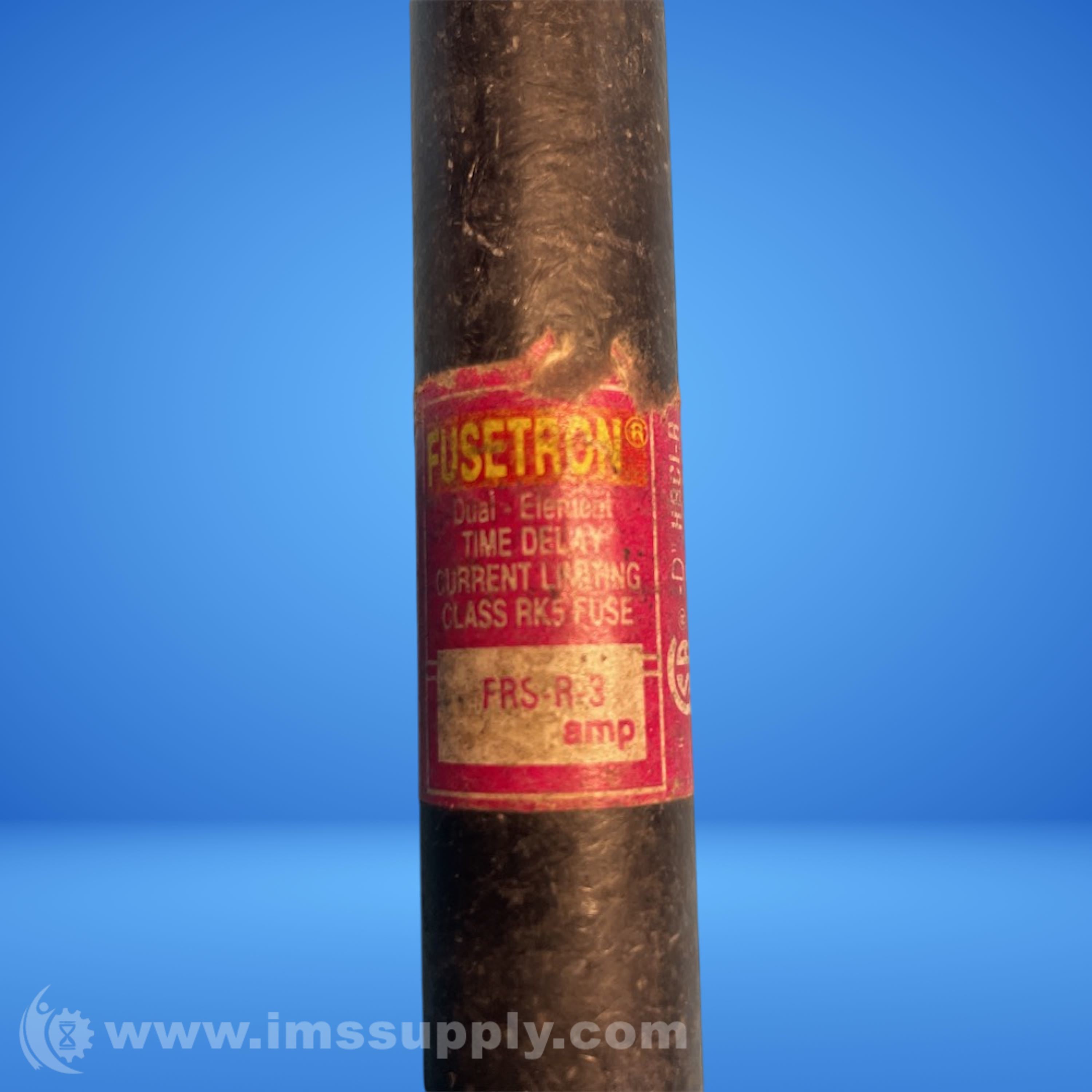

FUSETRON FRS-R-3 DUAL ELEMENT TIME DELAY FUSE
Quick Overview
Brand: FUSETRON
Part Number: FRS-R-3
IMS Product Code: 1749579
Packaging: Sold Individually
Description:
FUSETRON FRS-R-3 Dual Element Time Delay Fuse
FUSETRON FRS-R-3 is a dual-element, time-delay fuse with a current rating of 3 amps and a voltage rating of 600 VAC/300 VDC. It is classified as UL Class RK5 and has an interrupting rating of 200 kA at 600 VAC.
Specifications
- Amperage Rating: 3 A
- Voltage Rating: 600 VAC/300 VDC
- Class: RK5
- Interrupting Rating: 200 kA
- Response Time: 10 s at 500%
- Element: Dual
- Material: Fiberglass
- Body Size: 0.81 in Dia x 5 in L
- Terminal Type: Ferrule
- Type: Current Limiting Renewable
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 28 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
Ships today if ordered in the next 2 hours and 28 minutes.
