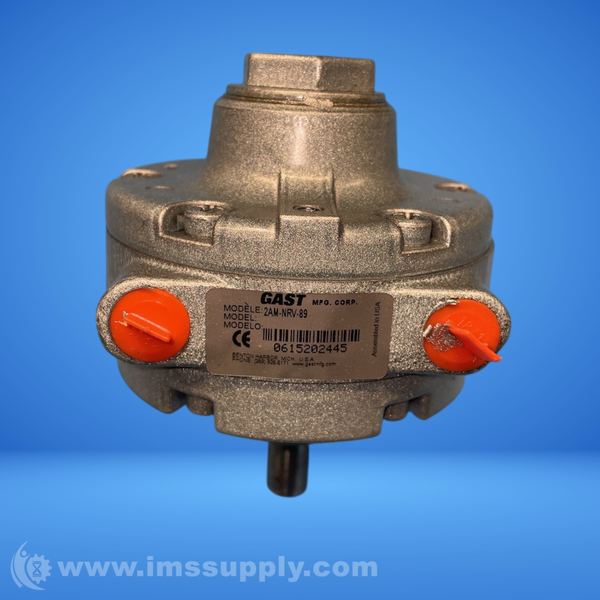

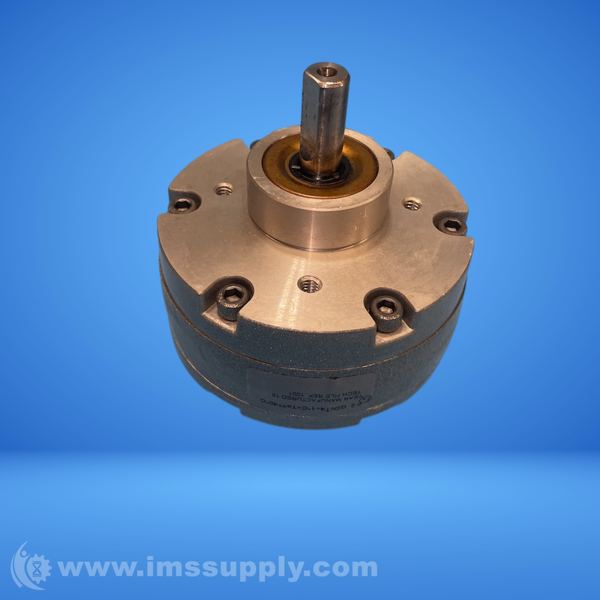

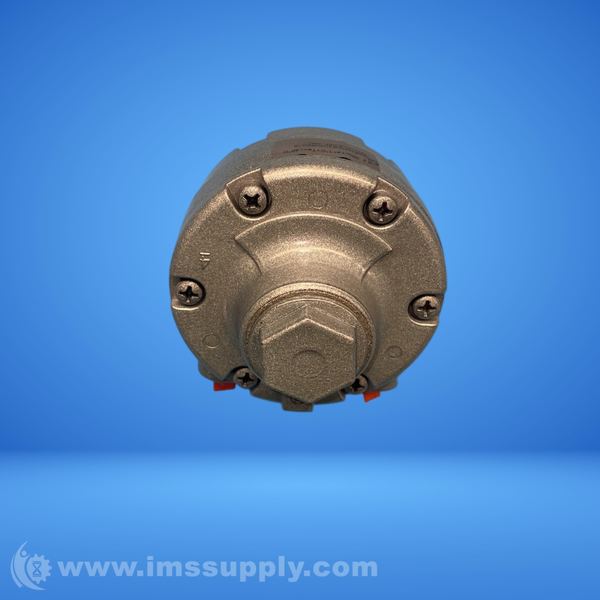

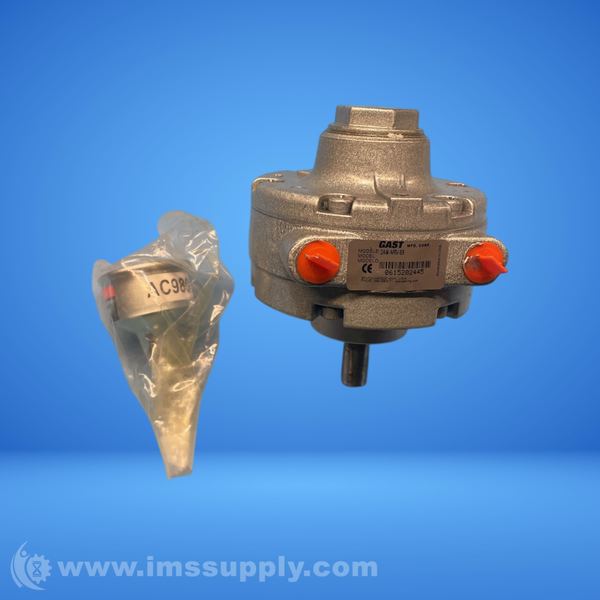

GAST 2AM-NRV-89 LUBRICATED AIR MOTOR
Quick Overview
Manufactured By: GAST MFG
Manufacturer Part Number: 2AM-NRV-89
IMS Product Code: 2158298
Packaging: Sold Individually
Description:
Gast 2AM-NRV-89 Lubricated Air Motor
Lubricated rotary vane air motor with reversible rotation, hub mounting, and flat output shaft. Delivers up to 0.95 HP at 3000 RPM with 30 cfm air consumption.
Specifications
- Mount: Hub
- Vanes: 4
- Weight: 4.2 lbs
- Rotation: Reversible
- Max Power: 0.95 hp
- Max Speed: 3000 rpm
- Max Torque: 28 in-lb
- Shaft Size: 0.5 in
- Max Pressure: 7 bar
- Max Sound Level: 76 dB(A)
- Output Shaft Type: Flat
- Port Size and Type: 1/4 inch NPT
- Max Air Consumption: 30 cfm
- Regulatory Approval: CE, ATEX
- Starting Torque @ 80psi: 17.5 in-lb
- Torque Max Speed: 19.5 in-lb
- Lubrication Type: Lubricated
- Series: 2AM
- Housing Material: Cast Iron
- Shaft Material: Steel
