GAST 1UP-NRV-11-GR11 AIR MOTOR
Quick Overview
Manufactured By: GAST
Manufacturer Part Number: 1UP-NRV-11-GR11
IMS Product Code: 1861685
Packaging: Sold Individually
Description:

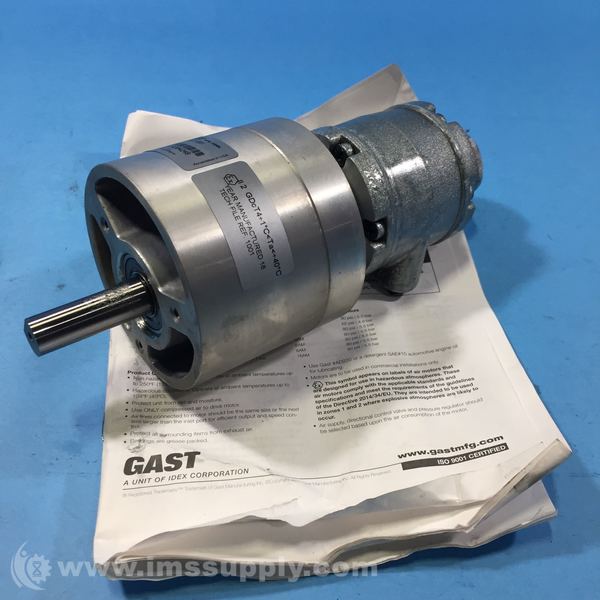

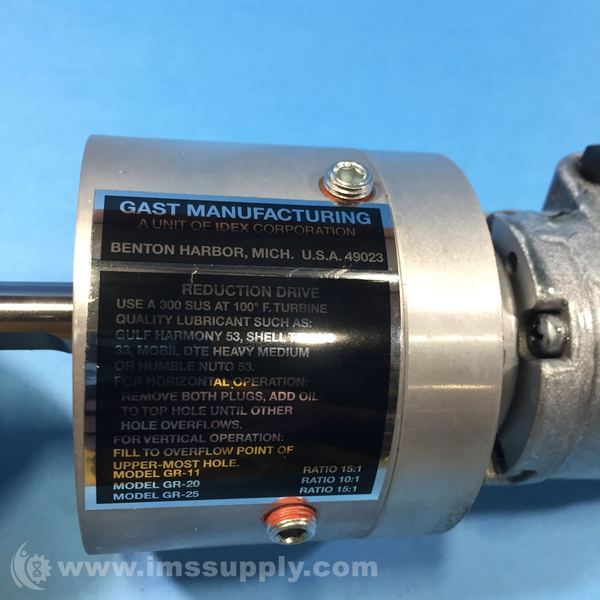

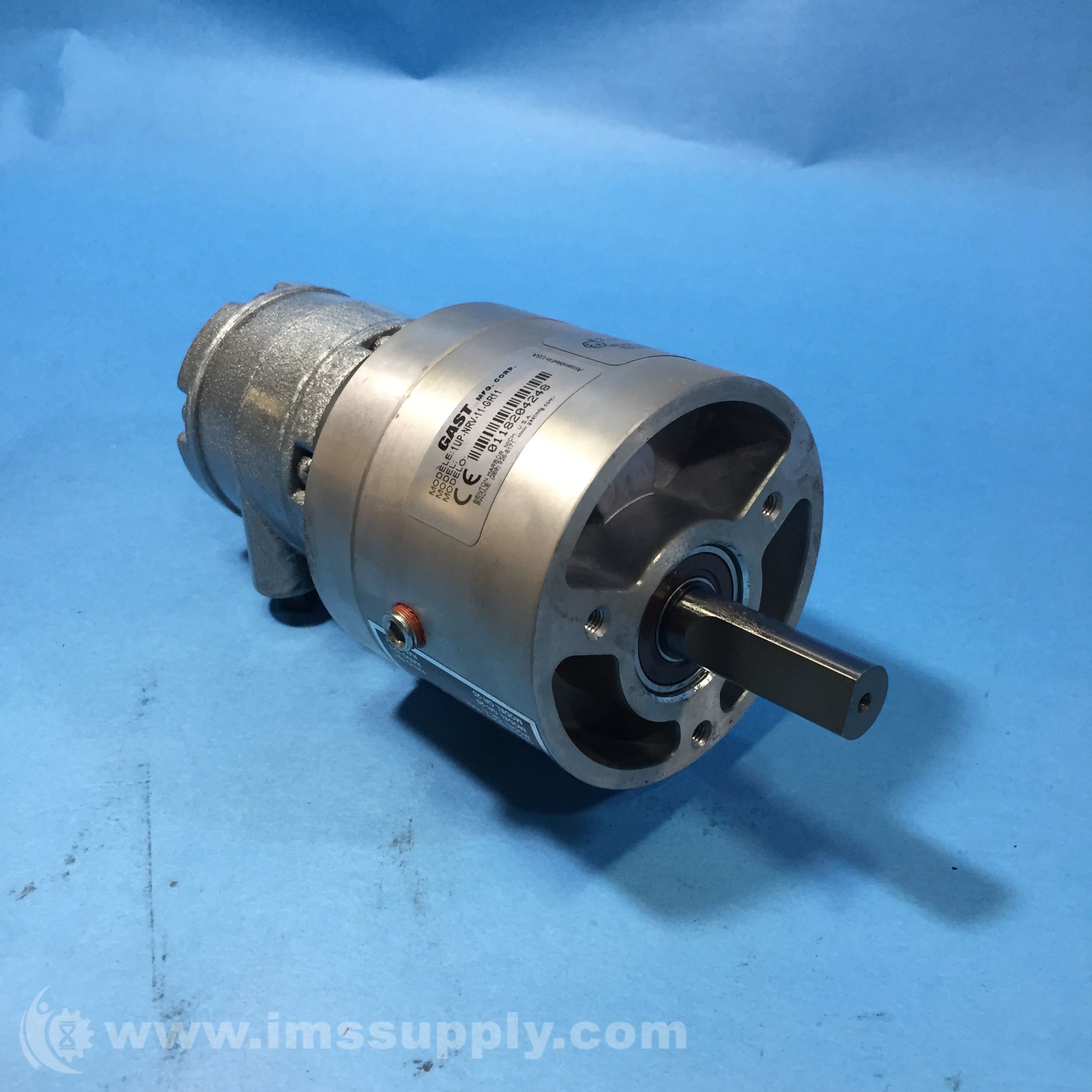

GAST 1UP-NRV-11-GR11 Air Motor
Reversible air powered gear motor with 15:1 gear ratio, face mounting, and 21 cfm air consumption.
Specifications
- Mount: Face
- Vanes: 8
- Weight: 3.1 lbs (1.41 kg)
- Rotation: Reversible
- Max Power: 0.31 hp (0.23 kW)
- Max Speed: 400 rpm
- Max Torque: 95 in-lb (10.74 N m)
- Shaft Size: 0.5 in (12.7 mm)
- Max Pressure: 5.6 bar (81.22 psi)
- Max Sound Level: 78 dB(A)
- Torque Max Speed: 49 in-lb (5.54 N m)
- Output Shaft Type: Flat/Spline
- Port Size and Type: 1/8 inch NPT
- Max Air Consumption: 21 cfm (35.68 m3h)
- Regulatory Approval: CE, ATEX
- Starting Torque @ 80psi: 75 in-lb (8.48 N m)
- Gear Ratio: 15:1
- Housing Material: Aluminum
- Shaft Material: Steel
Used (Special):
HAS UNKNOWN ATTACHMENT ON SIDE.
Availability: 1 In Stock
