GAST 2AM-NCC-96 AIR MOTOR
Quick Overview
Manufactured By: GAST
Manufacturer Part Number: 2AM-NCC-96
IMS Product Code: 2153100
Packaging: Sold Individually
Description:

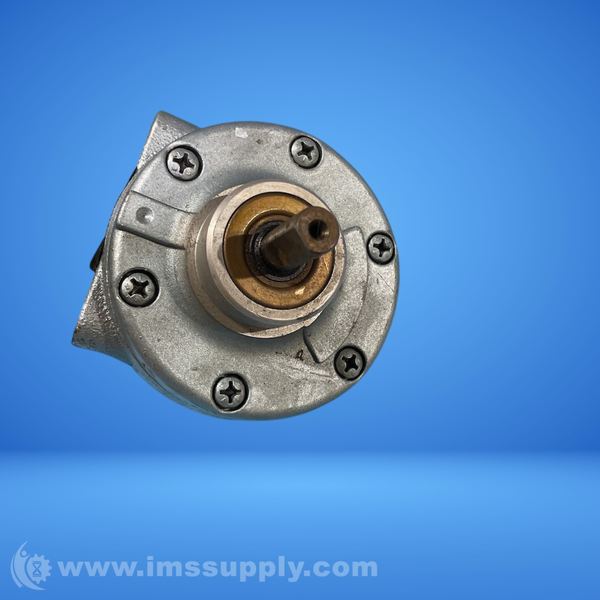

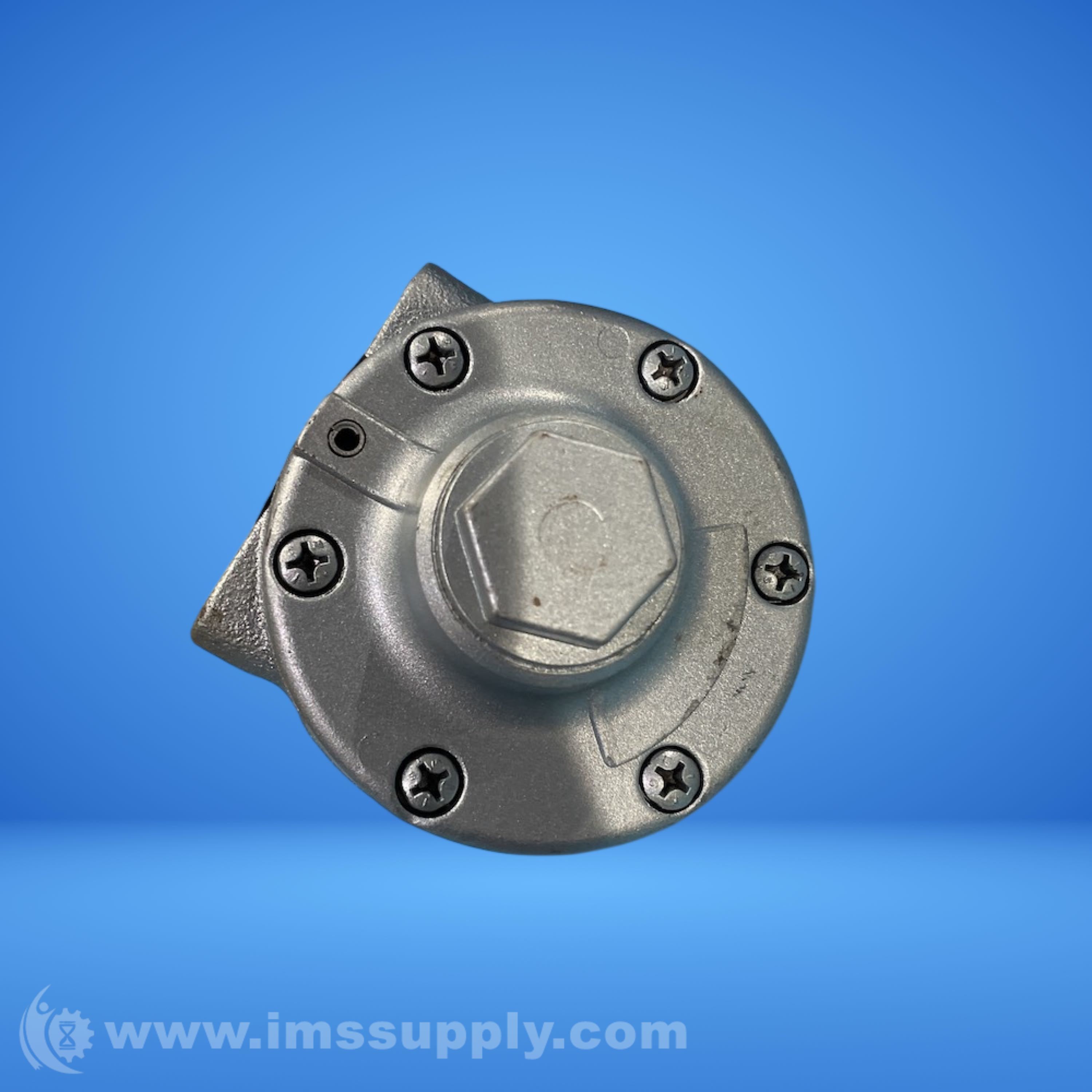

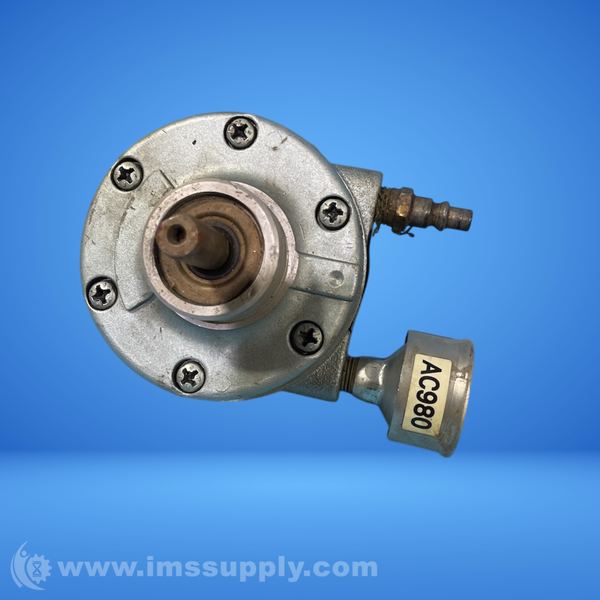

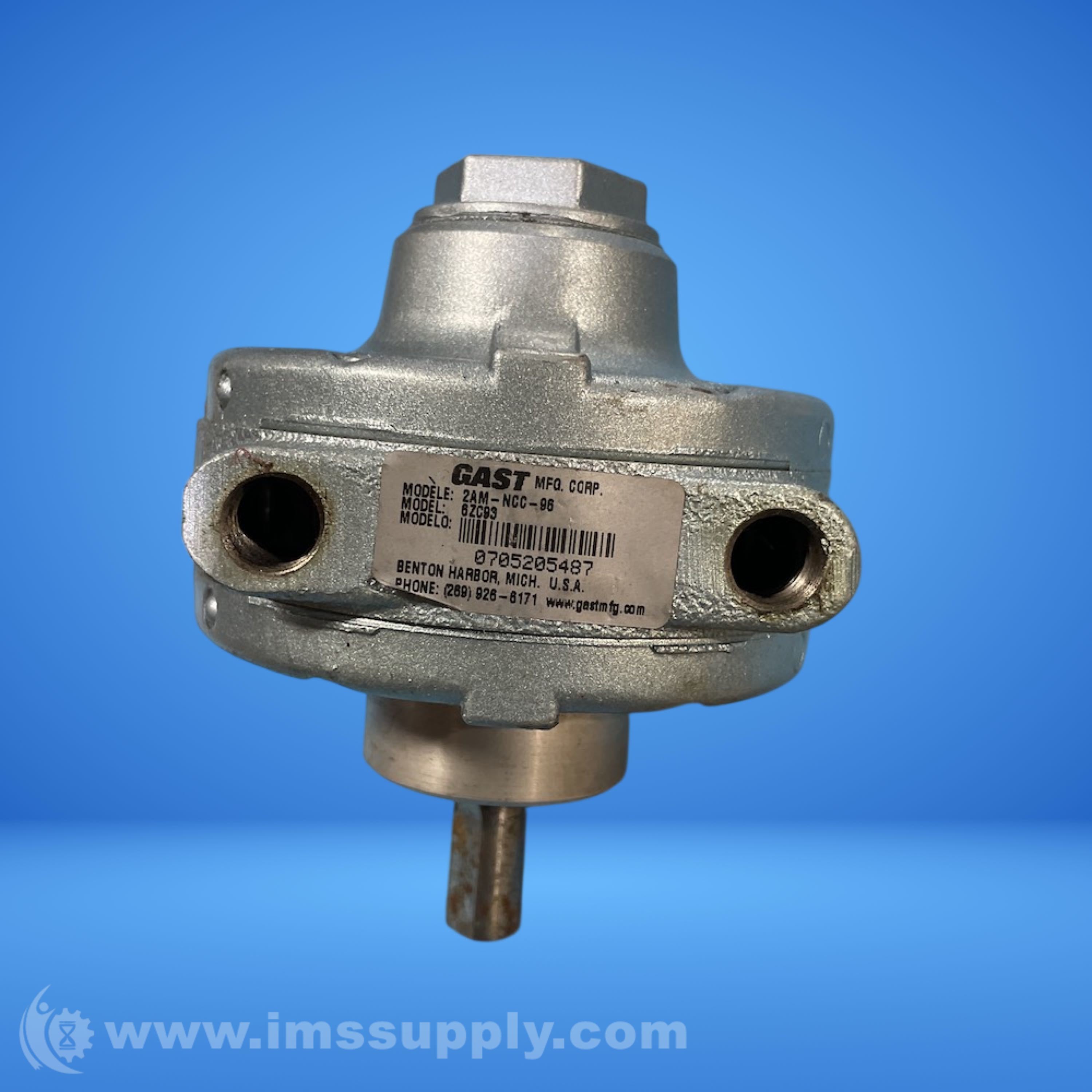

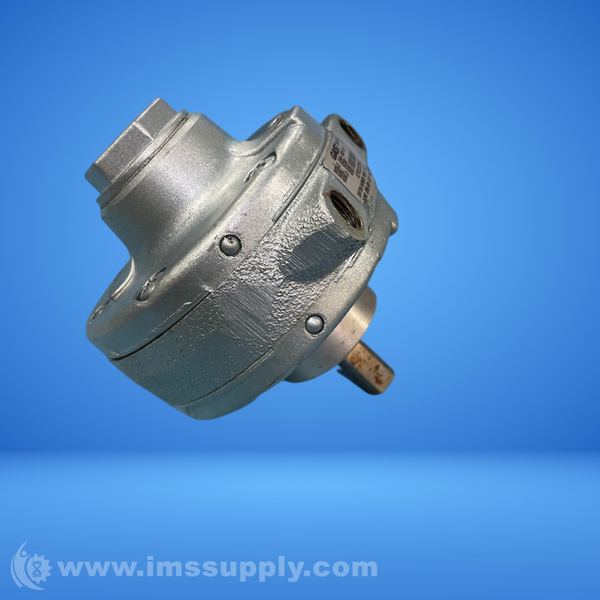

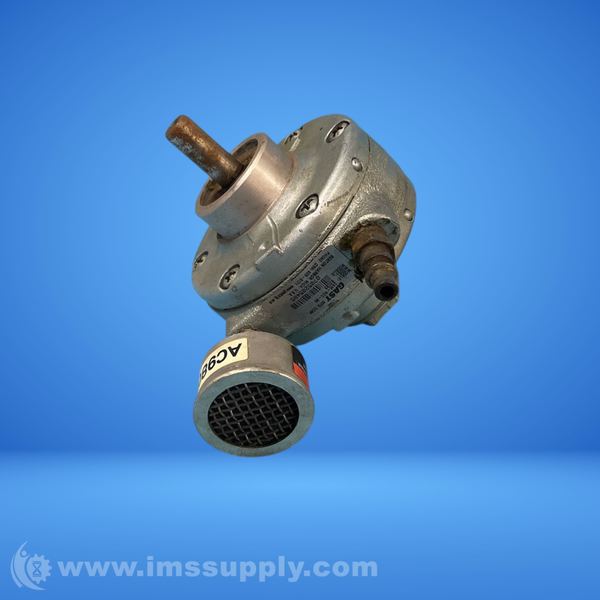

GAST 2AM-NCC-96 Air Motor
Rotary vane air motor with 0.9 hp output power, 19.5 in-lb torque, 3000 RPM no-load speed, and 30 cfm maximum flow rate. Hub mounted with D-Shaft output and 1/4 in NPT air inlet port. Cast iron housing with painted finish.
Specifications
- Output Power: 0.9 hp
- Torque @ Max Pressure: 19.5 in-lb
- No Load Speed: 3000 RPM
- Speed @ Max Torque: 300 RPM
- Maximum Flow Rate: 30 cfm
- Minimum Flow Rate: 1 cfm
- Output Shaft Type: D-Shaft
- Shaft Diameter: 1/2 in
- Shaft Length: 1-1/8 in
- Mount Type: Hub
- Air Inlet Port: 1/4 in NPT
- Rotation: CCW
- Housing Material: Cast Iron
- Series: 2AM
- Maximum Operating Pressure: 100 psi
- Starting Torque: 21 in-lb
- Mounting Orientation: Any Angle
- Maximum Ambient Temperature: 248 degrees F
- Minimum Ambient Temperature: 34 degrees F
- Housing Material Finish: Painted
- Number of Vanes: 4
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
