GAST 6AM-FRV-23A REVERSIBLE LUBRICATED AIR MOTOR
Quick Overview
Manufactured By: GAST
Manufacturer Part Number: 6AM-FRV-23A
IMS Product Code: 2153214
Packaging: Sold Individually
Description:

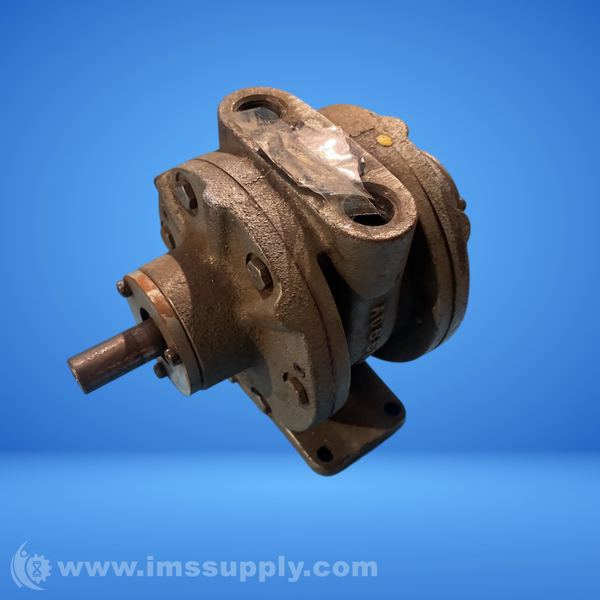

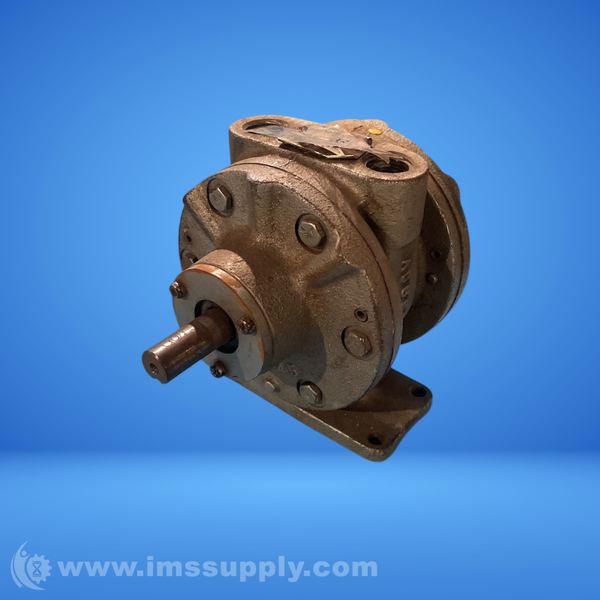

GAST 6AM-FRV-23A Reversible Lubricated Air Motor
4 hp, Lubricated, Foot Mounting, 128 cfm, Reversible Rotation, 8 Vanes
Specifications
- Mount: FOOT
- Vanes: 8
- Weight: 21 lbs (9.53 kg)
- Key Type: M30-KEYSQ 1 1/4
- Rotation: Reversible
- Max Power: 4 hp (2.98 kW)
- Max Speed: 3000 rpm
- Max Torque: 115 in-lb (13 N m)
- Shaft Size: 0.63 in (16 mm)
- Max Pressure: 7 bar (101.53 psi)
- Max Sound Level: 90 dB(A)
- Output Shaft Type: Keyed
- Torque Max Speed: 84 in-lb (9.49 N m)
- Port Size and Type: 1/2 inch NPT
- Max Air Consumption: 128 cfm (217.47 m3h)
- Regulatory Approval: CE, ATEX
- Starting Torque @ 80psi: 61 in-lb (6.89 N m)
- Horsepower: 4 hp (3.0 kw)
- Series: 6AM
- Maximum torque: 115 lb/in
- Torque at maximum speed: 84 lb/in
- Maximum pressure: 100 psi (7.0 bar)
- Type of mounting: Foot
- Motor Type: Air Motor
- Lubrication Type: Lubricated
- Operating Pressure Range: 7 psi
- Speed @ Max Torque: 84 rpm
- Standards Met: CE, ATEX
- Number of Vanes: 8
- Output Power @ Maximum Speed: 4 hp
- Air Flow: 130 cfm
- Length: 13.0 in
- Width: 8.1 in
- Depth: 8.1 in
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
