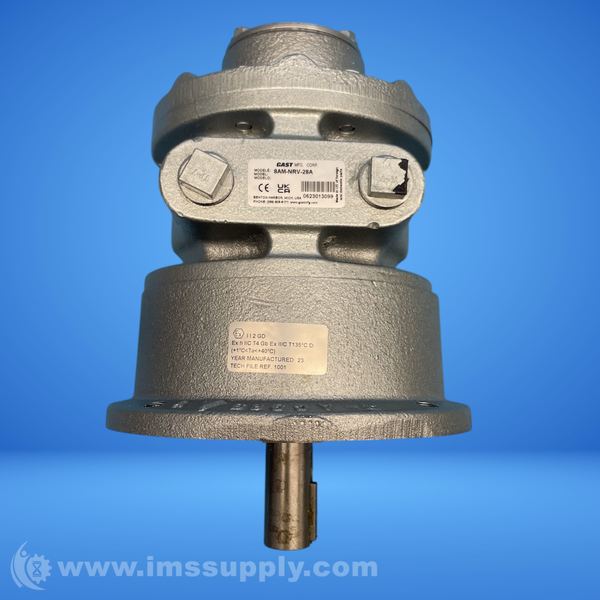

GAST 8AM-NRV-28A REVERSIBLE LUBRICATED AIR MOTOR
Quick Overview
Manufactured By: GAST

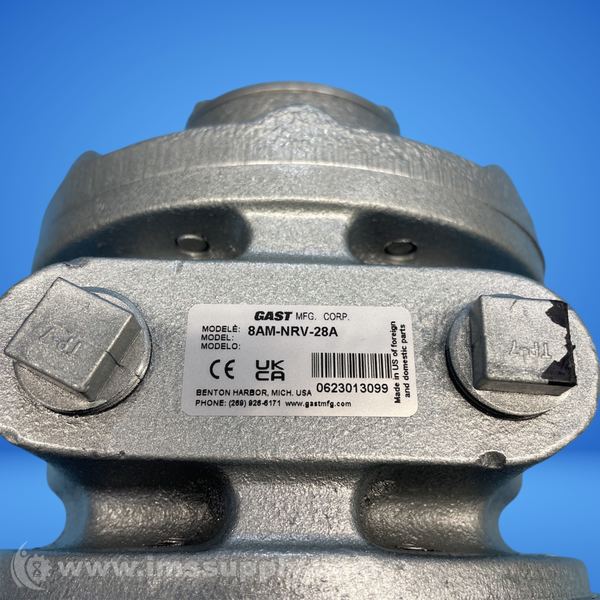

Manufacturer Part Number: 8AM-NRV-28A
IMS Product Code: 2159384
Packaging: Sold Individually
Description:
GAST 8AM-NRV-28A Reversible Lubricated Air Motor
A lubricated pneumatic air motor with reversible rotation, adjustable speed, and suitability for hazardous environments. Ideal for industrial applications requiring precise control and durability.
Specifications
- Mount: Flange
- Vanes: 4
- Weight: 28 lbs (12.7 kg)
- Key Type: M30-KEYSQ 1.0
- Rotation: Reversible
- Max Power: 5 hp (3.73 kW)
- Max Speed: 2500 rpm
- Max Torque: 185 in-lb (20.91 N m)
- Shaft Size: 0.88 in (22.35 mm)
- Max Pressure: 7 bar (101.53 psi)
- Max Sound Level: 105 dB(A)
- Torque Max Speed: 132 in-lb (14.92 N m)
- Output Shaft Type: Keyed
- Port Size and Type: 1/2 inch NPT
- Max Air Consumption: 175 cfm (297.33 m3h)
- Regulatory Approval: CE, ATEX
- Starting Torque @ 80psi: 117 in-lb (13.22 N m)
- Series: 8AM
- Shaft Length: 2 1/4 in

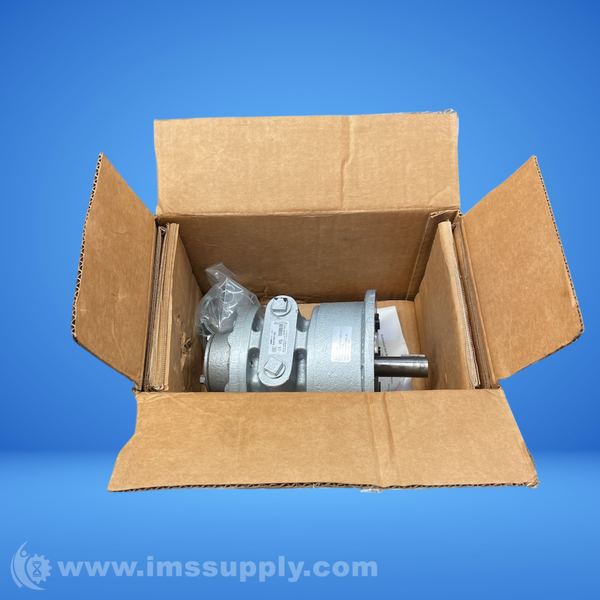

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
