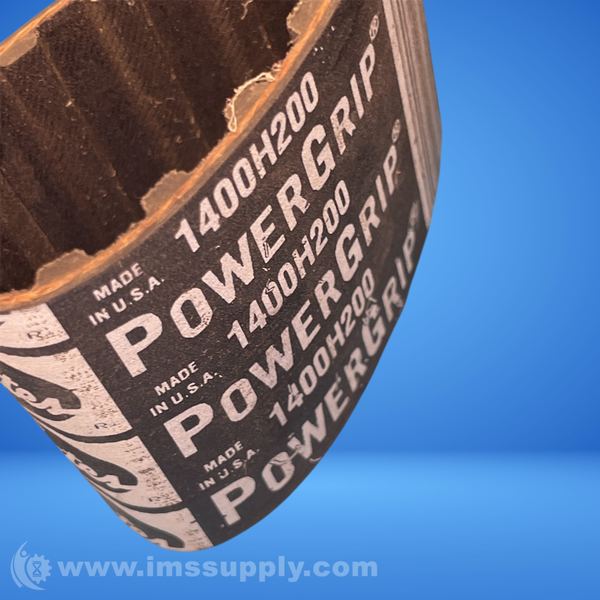

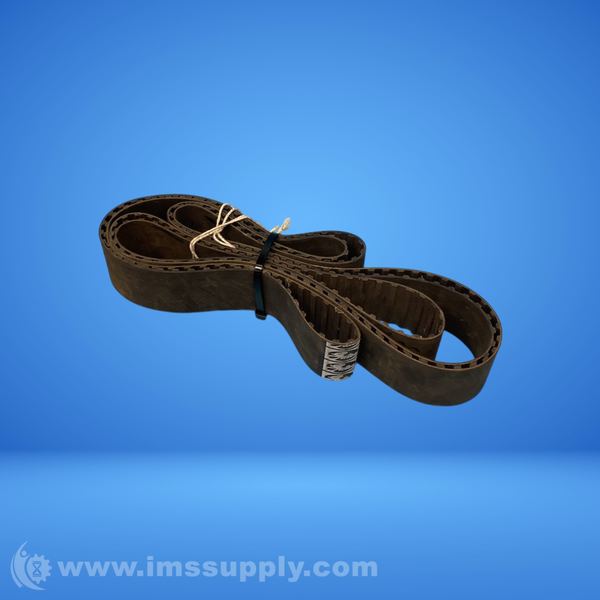

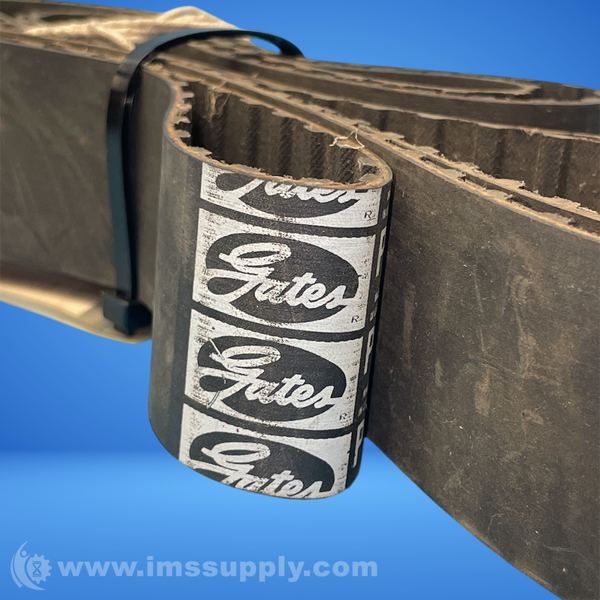

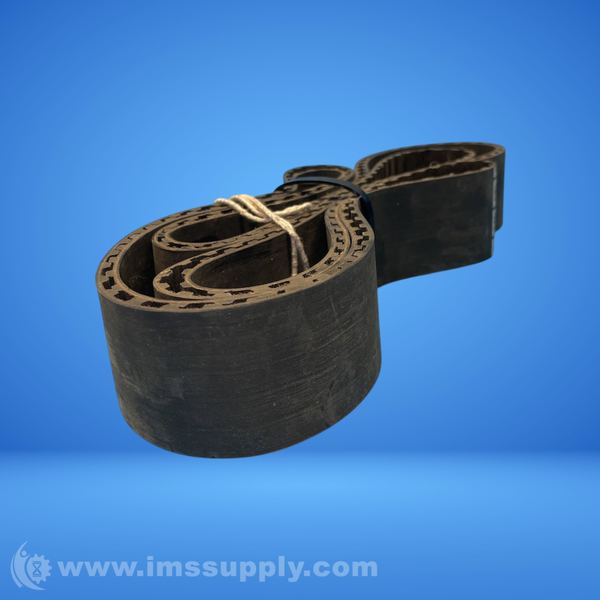

GATES 1400H200 TIMING BELT
Quick Overview
Manufactured By: GATES
Manufacturer Part Number: 1400H200
IMS Product Code: 2124772
Packaging: Sold Individually
Description:
Gates 1400H200 Timing Belt
Gates PowerGrip Industrial Timing Belt, H - Heavy Duty, 0.5000 in Pitch, 2.0000 in Width, 280 Teeth, Neoprene Material
Specifications
- Belt Type: H - Heavy Duty
- Pitch: 0.5000 in
- Overall Length: 140.0000 in
- Overall Width: 2.0000 in
- Material: Polychloroprene (Neoprene)
- Number Of Teeth: 280
- Number Of Toothed Sides: 1
- Width: 2 in / 51 mm
- Color: Black
- Reinforcing Cord Material: Fiberglass
- Pitch Length: 140 in / 3556 mm
- Tooth Profile: Trapezoidal
- Operating Temperature Range: -22 to +212 °F
- Resistance Features: Oil Resistant
- Weight: 1.85 lbs
- Belt Height: 0.16 in / 4.1 mm
- Belt Section: H
- Cord Material: Fiberglass
- End Type: Endless
- Fabric Type: Nylon Teeth
- Maximum Temperature: +212°F / +100 °C
- Minimum Temperature: -22°F / -30 °C
- Sided: Single Sided
- Tooth Form: Trapezoidal Design
- Tooth Height: 0.09 in / 2.29 mm
- Profile: Timing
- Length (inch): 140
- Length (mm): 3556
- Top Belt Width per strand (inch): 2
- Top Belt Width per strand (mm): 51
- Tensile Cord: Fiberglass
- Core Material: Chloroprene
- Fabric Cover: Nylon
- RMA Oil and Heat Resistant: Yes
- Minimum Pulley Diameter: 3.13 in
- Series: 9257
- Temperature Range: -30 to 180 deg F
- Type: Heavy
- End: Endless
- Height: 0.09 in
- Length: 140 in
- Section: H
- Sprocket Comptab: PowerGrip GT
- Standard Width: YES
- Static Conductive: No
- Tooth Profile: Trapezoidal Design
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 2 minutes.
