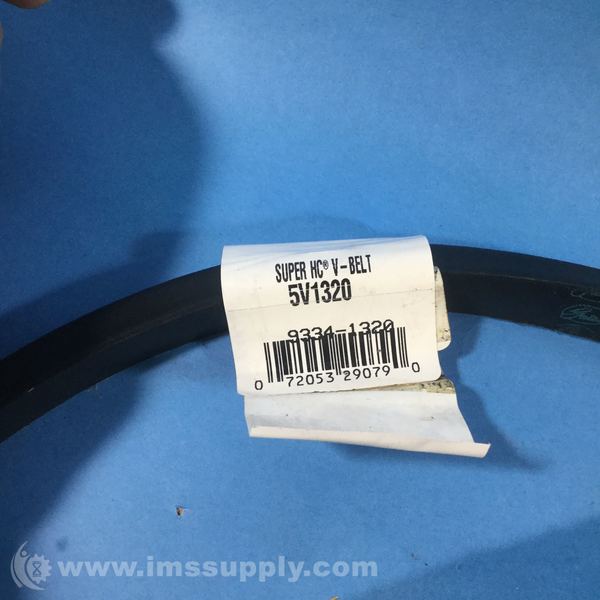

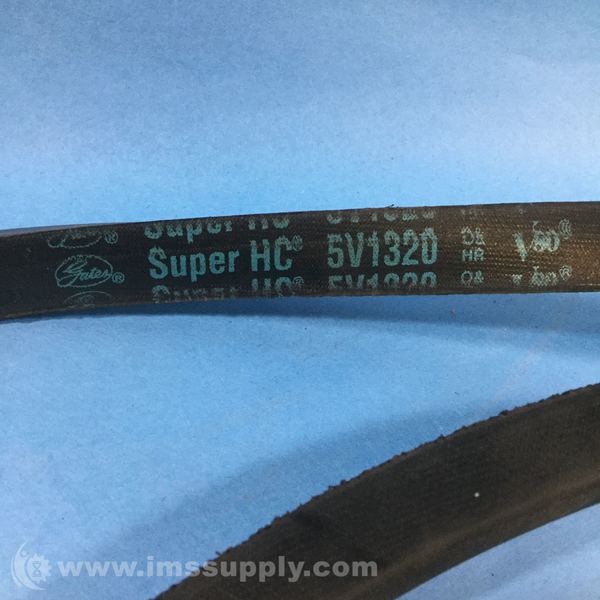

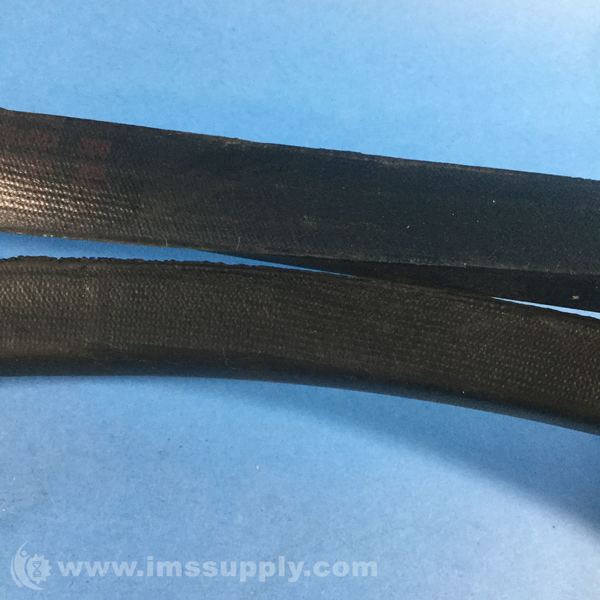

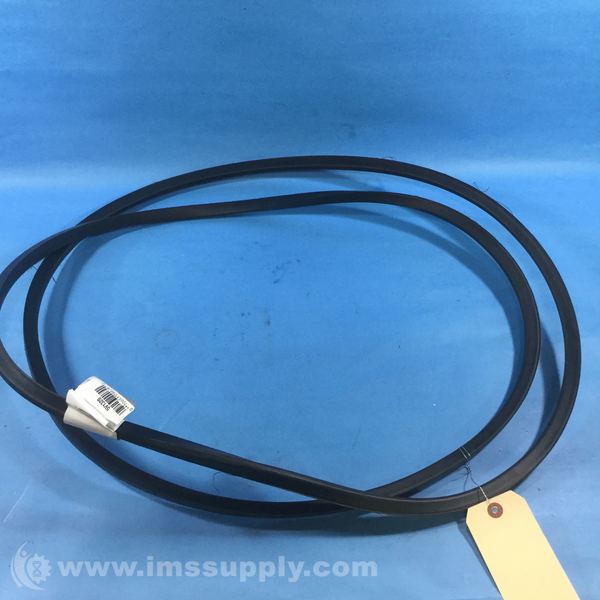

GATES 5V1320 NARROW SUPER HC V-BELT
Quick Overview
Manufactured By: GATES
Manufacturer Part Number: 5V1320
IMS Product Code: 752920
Packaging: Sold Individually
Description:
Gates 5V1320 Narrow Super HC V-Belt
Narrow Super HC V-Belt - 5V, 5/8 in Top Width, 1 Strand, 132 in Nominal Outside Length, Smooth
Specifications
- Belt Category: Narrow Series - Inch
- Section: 5V
- Number Of Strands: 1
- Nominal Outside Length: 132 in
- Cogged/Smooth: Smooth
- Top Width Per Strand: 5/8 in
- Belt Style: SUPER HC®
- Reinforcing Cord Material: Polyester
- Resistance Features: Oil Resistant
- Overall Height: 0.5469 in
- Top Width: 5/8 in
- Effective Length: 132 in / 3353 mm
- Color: Black
- Material: Ethylene Elastomeric
- Standards Met: RMA
- Weight: 1.94 lbs
- Outside Circumference: 132.44 in / 3364 mm
- Angle: 40
- Belt Height: 35/64 in
- Belt/Slab: Belt
- Belt Back Side: Smooth
- Belt Inside: Smooth
- Product Type: Industrial V-Belts
- Construction: Banded
- Cord Material: Polyester
- Maximum Temperature: +250°F / +121 °C
- Minimum Temperature: -60°F / -51 °C
- Number of Sides: Single Sided
- Static Conductive: Yes
- Thickness: 14 mm
- Trademark: Super HC™
- V-belt Cross Section: 5V
- Length (inch): 132
- Length (mm): 3353
- Length Type: Outside Circumference
- Top Belt Width per strand (inch): 0.63
- Top Belt Width per strand (mm): 16
- Nominal Thickness (inch): 0.55
- Nominal Thickness (mm): 14
- RMA Static Conductive: Yes
- RMA Oil and Heat Resistant: Yes
- Core Material: Oil & Heat Resistant (chloroprene)
- Fabric Cover: Double Layer
- Tensile Cord: Polyester
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships today if ordered in the next 1 hours and 22 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 22 minutes.
