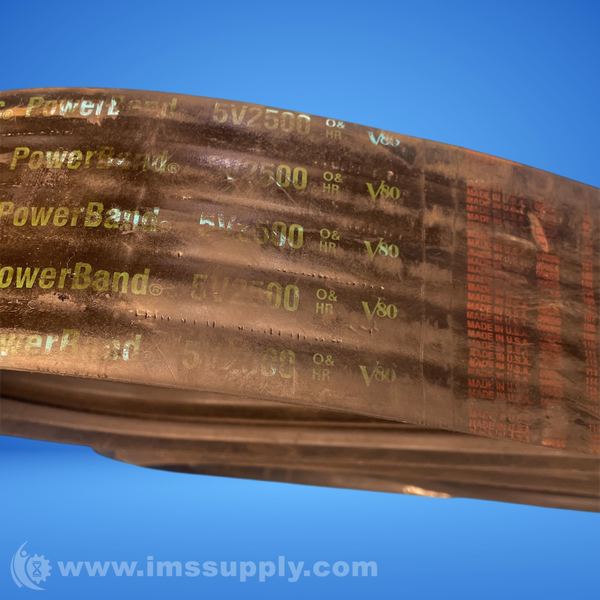

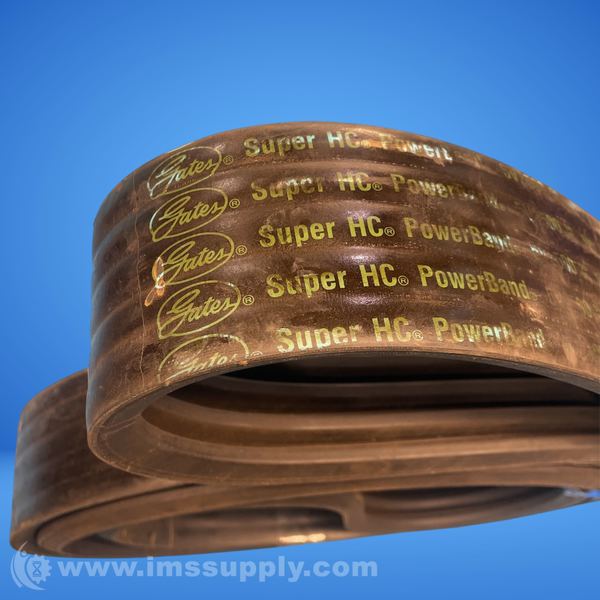

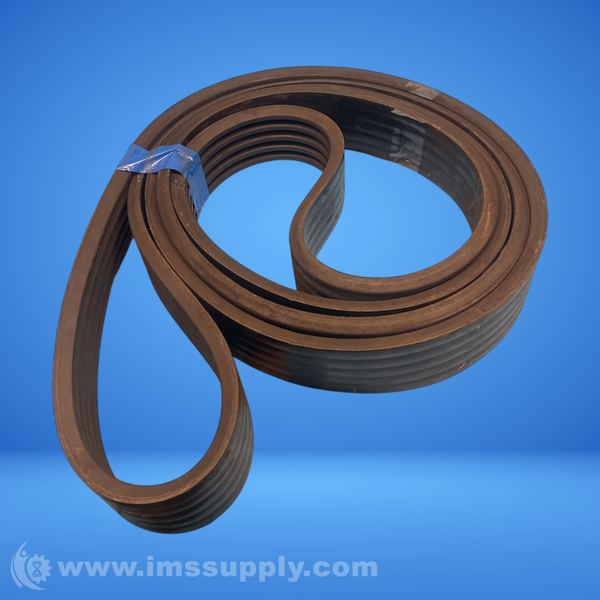

GATES 5V2500 NARROW SUPER HC V-BELT
Quick Overview
Manufactured By: GATES
Manufacturer Part Number: 5V2500
IMS Product Code: 2149941
Packaging: Sold Individually
Description:
Gates 5V2500 Narrow Super HC V-Belt
Narrow Super HC V-Belt - 5V, 5/8 in Top Width, 1 Strand, 250 in Nominal Outside Length, Smooth
Specifications
- Angle: 40
- Belt Back Side: Smooth
- Belt Category: Narrow Series - Inch
- Belt Coating: Flex-Weave Oil and Heat Resistant Cover
- Belt Height: 35/64 in
- Belt Inside: Smooth
- Belt Material: Neoprene
- Belt Series: Super HC PowerBand Belts
- Belt Style: SUPER HC
- Cogged/Smooth: Smooth
- Color: Black
- Construction: Banded
- Core Material: Oil & Heat Resistant (chloroprene)
- Country of Origin: MX
- Cord Material: Polyester
- Effective Length: 250 in / 6350 mm
- Fabric Cover: Double Layer
- Length Type: Outside Circumference
- Length (inch): 250
- Length (mm): 6350
- Matching: V80
- Material: Ethylene Elastomeric
- Maximum Operating Temperature: +250F / +121 C
- Maximum Temperature: +250F / +121 C
- Minimum Operating Temperature: -60F / -51 C
- Minimum Temperature: -60F / -51 C
- Nominal Thickness (inch): 0.55
- Nominal Thickness (mm): 14
- Number Of Strands: 1
- Number of Sides: Single Sided
- Outside Circumference: 250.44 in / 6361 mm
- Reinforcing Cord Material: Polyester
- Resistance Features: Oil Resistant
- RMA Oil and Heat Resistant: Yes
- RMA Static Conductive: Yes
- Section: 5V
- Standards Met: RMA
- Static Conductive: Yes
- Tensile Cord: Polyester
- Thickness: 14 mm
- Top Belt Width per strand (inch): 0.63
- Top Belt Width per strand (mm): 16
- Top Width Per Strand: 5/8 in
- Trademark: Super HC
- V-belt Cross Section: 5V
- Weight: 3.32 lbs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 23 minutes.
