GATES 5V630 NARROW SUPER HC V-BELT
Quick Overview
Manufactured By: GATES
Manufacturer Part Number: 5V630
IMS Product Code: 752921
Packaging: Sold Individually
Description:

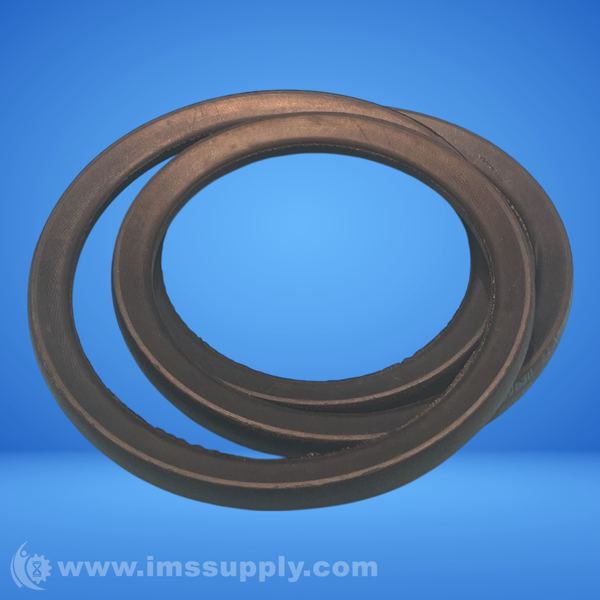

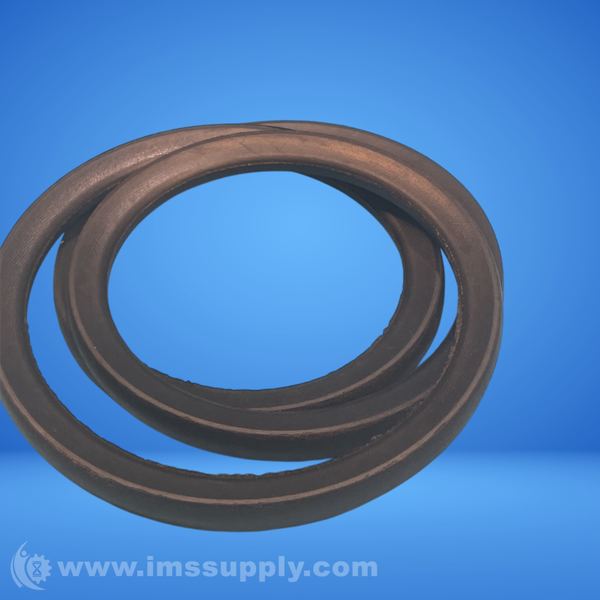

Gates 5V630 Narrow Super HC V-Belt
Narrow Super HC V-Belt - 5V, 5/8 in Top Width, 1 Strand, 63 in Nominal Outside Length, Smooth
Specifications
- Angle: 38 degrees
- Belt Back Side: Smooth
- Belt Belt Category: Narrow Series - Inch
- Belt Belt Height: 35/64 in
- Belt Belt Inside: Smooth
- Belt Belt Material: Neoprene
- Belt Belt Style: SUPER HC®
- Belt Cogged/Smooth: Smooth
- Belt Color: Black
- Belt Construction: Wrapped
- Belt Cross Section Designation: 5V
- Belt Effective Length: 62.91 in / 1598 mm
- Belt Length Type: Outside Circumference
- Belt Material: Ethylene Elastomeric
- Belt Nominal Outside Length: 63 in
- Belt Nominal Thickness: 0.55 in / 14 mm
- Belt Notched: No
- Belt Number Of Sides: Single Sided
- Belt Number Of Strands: 1
- Belt Overall Height: 0.5469 in
- Belt Outside Circumference: 63.38 in / 1610 mm
- Belt Reinforcing Cord Material: Polyester
- Belt Section: 5V
- Belt Static Conductive: Yes
- Belt Strand Quantity: 1
- Belt Style: Narrow Section Wrapped V-Belt
- Belt Top Belt Width per strand: 0.63 in / 16 mm
- Belt Top Width: 5/8 in / 0.62 in
- Belt Top Width Per Strand: 5/8 in
- Belt Type: Industrial V-Belts
- Core Material: Oil & Heat Resistant (chloroprene)
- Country of Origin: MX
- Fabric Cover: Double Layer
- Maximum Temperature: +250°F / +121°C
- Minimum Temperature: -60°F / -51°C
- Resistance Features: Oil Resistant
- RMA Oil and Heat Resistant: Yes
- RMA Static Conductive: Yes
- Standards Met: RMA
- Tensile Cord: Polyester
- Thickness: 14 mm
- Trademark: Super HC™
