GATES 5VX1120 NARROW SECTION MOLDED NOTCH V-BELT
Quick Overview
Manufactured By: GATES
Manufacturer Part Number: 5VX1120
IMS Product Code: 1923712
Packaging: Sold Individually
Description:

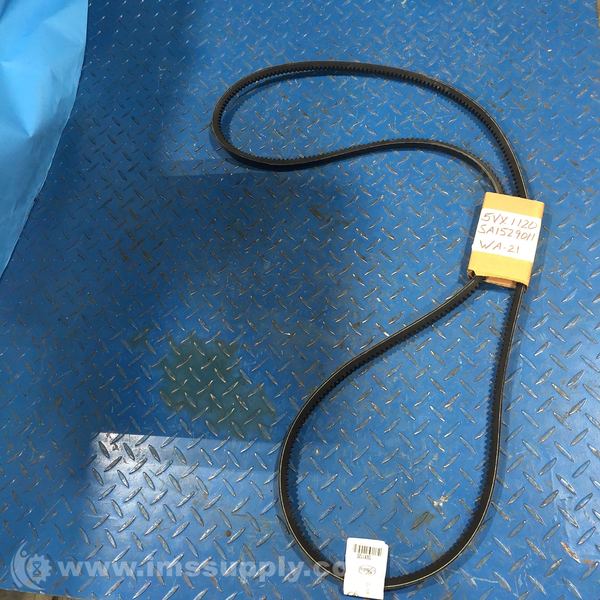

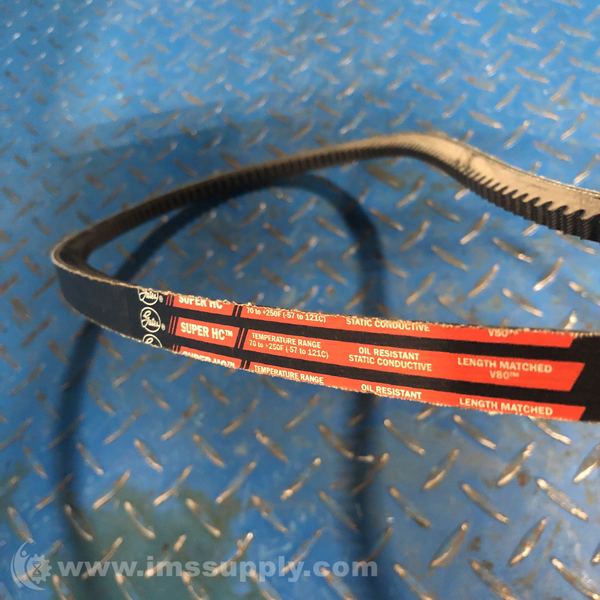

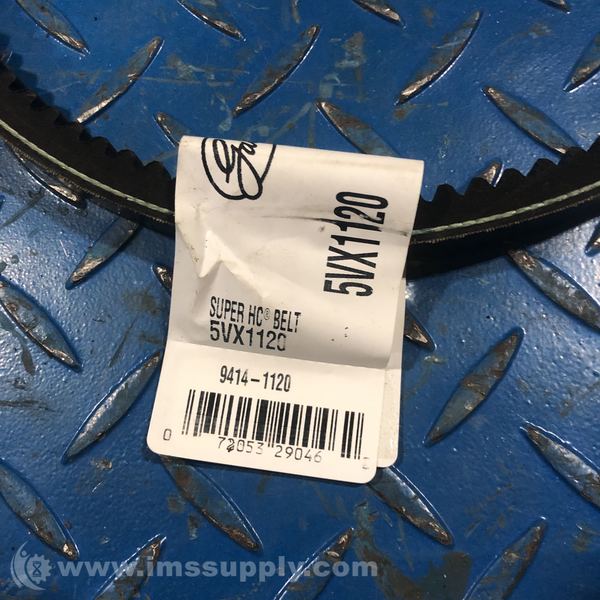

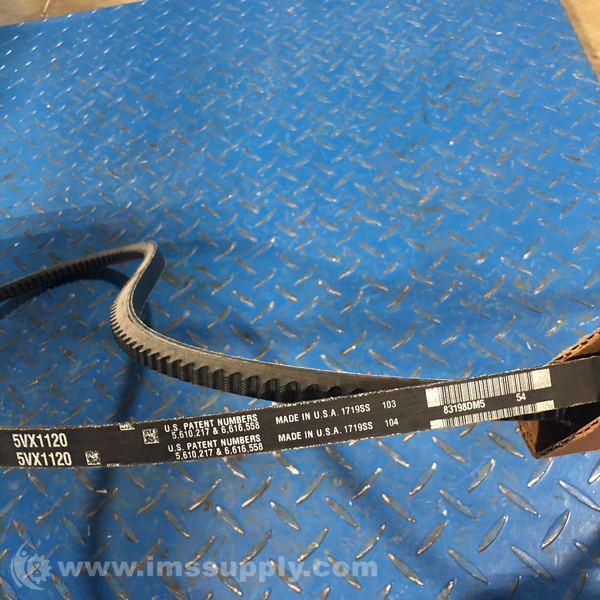

Gates 5VX1120 Narrow Section Molded Notch V-Belt
Narrow Super HC V-Belt - 5VX, 5/8 in Top Width, 1 Strand, 112 in Nominal Outside Length, Cogged
Specifications
- V-belt Cross Section: 5VX
- Length (inch): 112
- Length (mm): 2845
- Length Type: Outside Circumference
- Top Belt Width per strand (inch): 0.63
- Top Belt Width per strand (mm): 16
- Nominal Thickness (inch): 0.55
- Nominal Thickness (mm): 14
- Matching: V80
- RMA Static Conductive: Yes
- RMA Oil and Heat Resistant: Yes
- Core Material: Oil & Heat Resistant (ethylene)
- Tensile Cord: Polyester
- Belt Category: Narrow Series - Inch
- Section: 5VX
- Number Of Strands: 1
- Nominal Outside Length: 112 in
- Cogged/Smooth: Cogged
- Top Width Per Strand: 5/8 in
- Belt Style: SUPER HC MOLDED NOTCH
- Reinforcing Cord Material: Polyester
- Resistance Features: Oil Resistant
- Overall Height: 0.5469 in
- Top Width: 5/8 in
- Effective Length: 112.054 in / 2846 mm
- Color: Black
- Material: Ethylene Elastomeric
- Operating Temperature Range: -60 to 250 degrees F
- Country of Origin: USA
- Standards Met: RMA
- Weight: 1.19 lbs
- Outside Circumference: 112.49 in / 2857 mm
- Angle: 41
- Belt Height: 35/64 in
- Belt/Slab: Belt
- Belt Back Side: Smooth
- Belt Inside: Notched
- Product Type: Industrial V-Belts
- Construction: Bandless
- Cord Material: Polyester
- Maximum Temperature: +250 degrees F / +121 degrees C
- Minimum Temperature: -60 degrees F / -51 degrees C
- Number of Sides: Single Sided
- Thickness: 13 mm
- Type: Single Sided
- Series: Super HC Molded Notch
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships today if ordered in the next 6 hours and 4 minutes.
