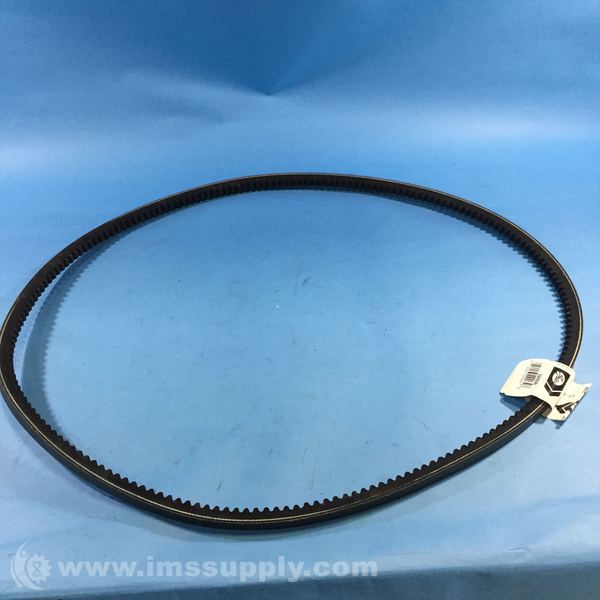

GATES 5VX630 NARROW SUPER HC V-BELT
Quick Overview
Manufactured By: GATES
Manufacturer Part Number: 5VX630
IMS Product Code: 1779917
Packaging: Sold Individually
Description:
Gates 5VX630 Narrow Super HC V-Belt
Narrow Super HC V-Belt - 5VX section, 5/8 in top width, 1 strand, 63 in nominal outside length, cogged design
Specifications
- Belt Category: Narrow Series - Inch
- Section: 5VX
- Number Of Strands: 1
- Nominal Outside Length: 63 in
- Cogged/Smooth: Cogged
- Top Width Per Strand: 5/8 in
- Belt Style: SUPER HC MOLDED NOTCH
- Reinforcing Cord Material: Polyester
- Resistance Features: Oil Resistant
- Overall Height: 0.5469 in
- Top Width: 5/8 in
- Effective Length: 62.984 in / 1600 mm
- Material: Ethylene Elastomeric
- Operating Temperature Range: -60 to 250 degrees F
- Standards Met: RMA
- Weight: 0.67 lbs
- Outside Circumference: 63.35 in / 1609 mm
- Angle: 41 degrees
- Belt Height: 35/64 in
- Construction: Bandless
- Cord Material: Polyester
- Maximum Temperature: +250 degrees F / +121 degrees C
- Minimum Temperature: -60 degrees F / -51 degrees C
- Number of Sides: Single Sided
- Static Conductive: No
- Thickness: 13 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 23 minutes.
