GATES 5VX950 NARROW SUPER HC V-BELT
Quick Overview
Manufactured By: GATES
Manufacturer Part Number: 5VX950
IMS Product Code: 2015790
Packaging: Sold Individually
Description:

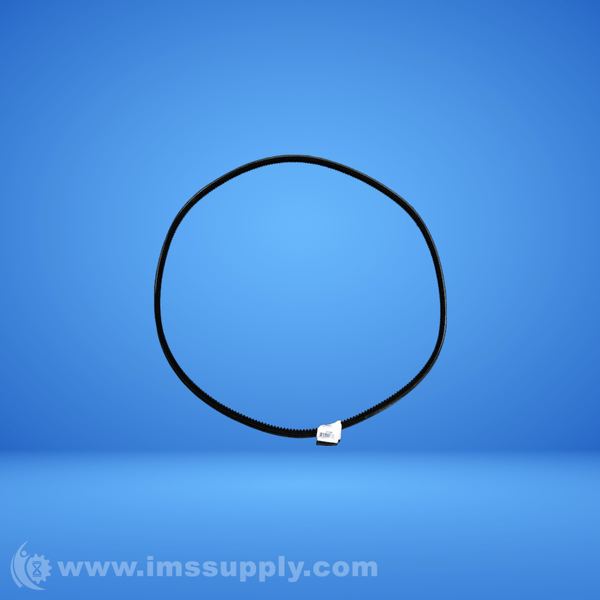

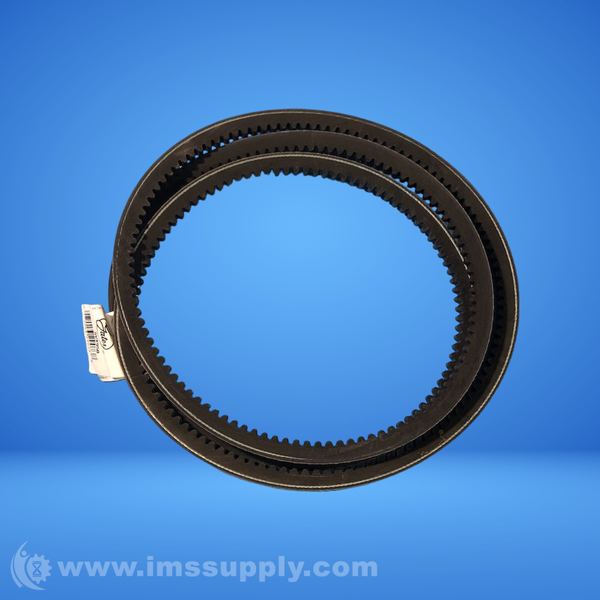

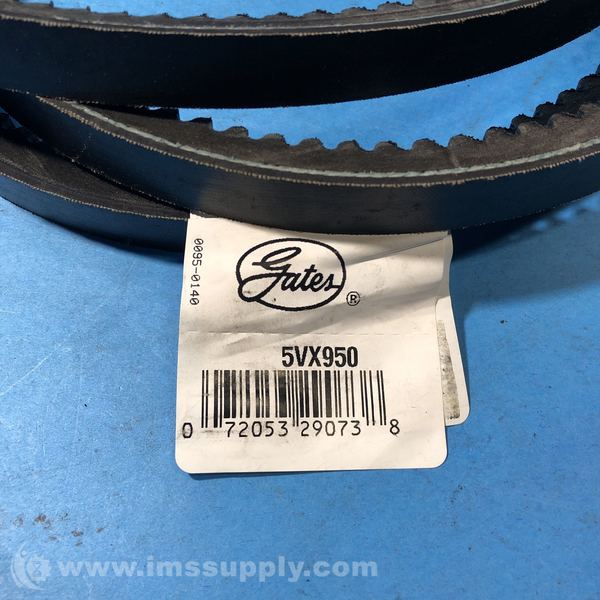

Gates 5VX950 Narrow Super HC V-Belt
Narrow Super HC V-Belt - 5VX section, 5/8 in top width, 1 strand, 95 in nominal outside length, cogged design
Specifications
- Belt Category: Narrow Series - Inch
- Section: 5VX
- Number Of Strands: 1
- Nominal Outside Length: 95 in
- Cogged/Smooth: Cogged
- Top Width Per Strand: 5/8 in
- Belt Style: SUPER HC MOLDED NOTCH
- Reinforcing Cord Material: Polyester
- Resistance Features: Oil Resistant
- Overall Height: 0.5469 in
- Top Width: 5/8 in
- Effective Length: 95.008 in / 2413 mm
- Material: Ethylene Elastomeric
- Operating Temperature Range: -60 to 250 degrees F
- Standards Met: RMA
- Weight: 0.92 lbs
- Outside Circumference: 95.42 in / 2424 mm
- Angle: 41 degrees
- Belt Height: 35/64 in
- Belt Back Side: Smooth
- Belt Inside: Notched
- Product Type: Industrial V-Belts
- Construction: Bandless
- Cord Material: Polyester
- Maximum Temperature: +250 degrees F / +121 degrees C
- Minimum Temperature: -60 degrees F / -51 degrees C
- Number of Sides: Single Sided
- Static Conductive: No
- Thickness: 13 mm
- V-belt Cross Section: 5VX
- Length (inch): 95
- Length (mm): 2413
- Length Type: Outside Circumference
- Top Belt Width per strand (inch): 0.63
- Top Belt Width per strand (mm): 16
- Nominal Thickness (inch): 0.55
- Nominal Thickness (mm): 14
- Matching: V80
- RMA Static Conductive: Yes
- RMA Oil and Heat Resistant: Yes
- Core Material: Oil & Heat Resistant (ethylene)
- Tensile Cord: Polyester
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
