GATES BX69 CLASSICAL HI-POWER II V-BELT
Quick Overview
Manufactured By: GATES
Manufacturer Part Number: BX69
IMS Product Code: 2130399
Packaging: Sold Individually
Description:

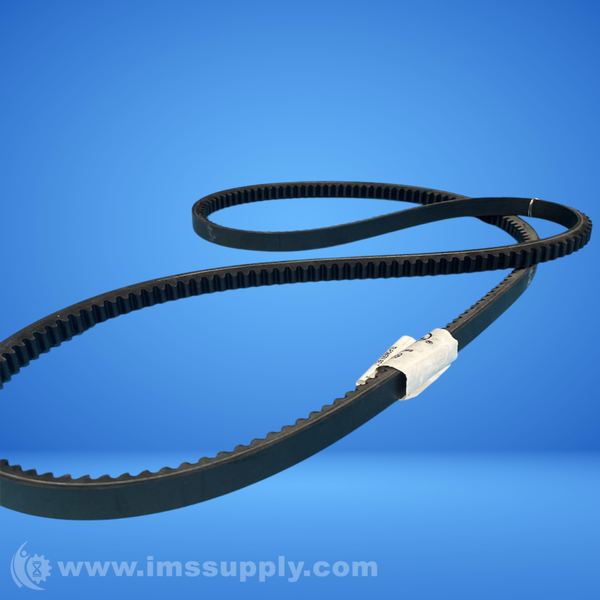

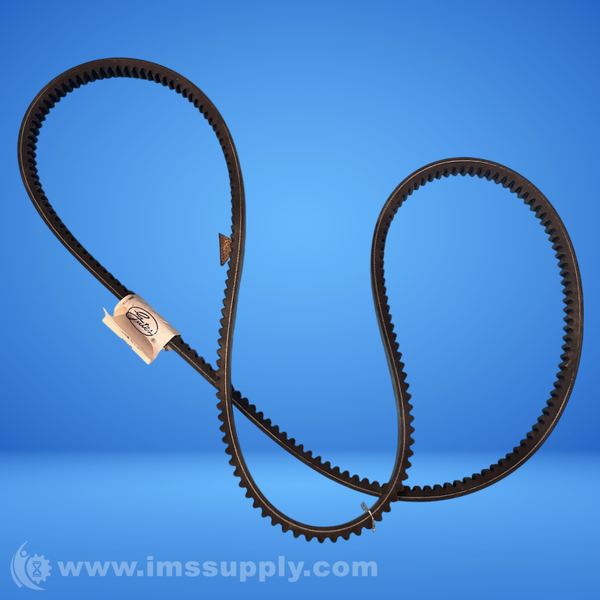

Gates BX69 Classical Hi-Power II V-Belt
Classical Hi-Power II V-Belt - BX, 21/32 in Top Width, 1 Strand, 72 in Nominal Outside Length, Cogged
Specifications
- Belt Category: Classical Series - Inch
- Section: BX
- Number Of Strands: 1
- Nominal Outside Length: 72 in
- Cogged/Smooth: Cogged
- Top Width Per Strand: 21/32 in
- Belt Style: TRI-POWER POWERBAND
- Reinforcing Cord Material: Polyester
- Resistance Features: Oil Resistant
- Overall Height: 0.4063 in
- Top Width: 21/32 in
- Effective Length: 71.963 in / 1828 mm
- Color: Black
- Material: Ethylene Elastomeric
- Operating Temperature Range: -60 to 250 degrees F
- Country of Origin: USA
- Standards Met: RMA
- Weight: 0.79 lbs
- Outside Circumference: 72.22 in / 1834 mm
- Angle: 40
- Belt Height: 13/32 in
- Belt/Slab: Belt
- Belt Back Side: Smooth
- Belt Inside: Notched
- Product Type: Industrial V-Belts
- Construction: Bandless
- Cord Material: Polyester
- Maximum Temperature: +250 degrees F / +121 degrees C
- Minimum Temperature: -70 degrees F / -51 degrees C
- Number of Sides: Single Sided
- Static Conductive: Yes
- Thickness: 11 mm
- Trademark: Tri-Power
- V-belt Cross Section: BX
- Length (inch): 72
- Length (mm): 1829
- Length Type: Outside Circumference
- Top Belt Width per strand (inch): 0.66
- Top Belt Width per strand (mm): 17
- Nominal Thickness (inch): 0.41
- Nominal Thickness (mm): 10
- RMA Static Conductive: Yes
- RMA Oil and Heat Resistant: Yes
- Core Material: Oil & Heat Resistant (ethylene)
- Tensile Cord: Polyester
- Belt Type: Cogged
- Outside Circumference (mm): 1828.80
- Top Width (mm): 16.66
- Belt Depth (mm): 11.11
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, December 15, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
