GATES C87 HI-POWER II V-BELT
Quick Overview
Manufactured By: GATES
Manufacturer Part Number: C87
IMS Product Code: 1836177
Packaging: Sold Individually
Description:

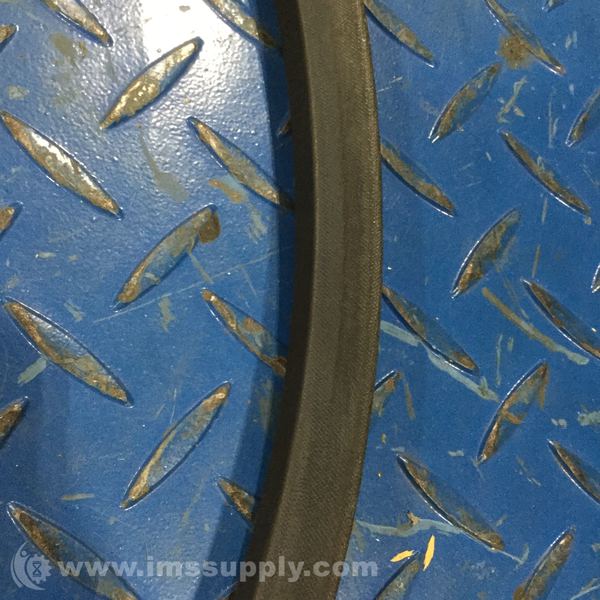

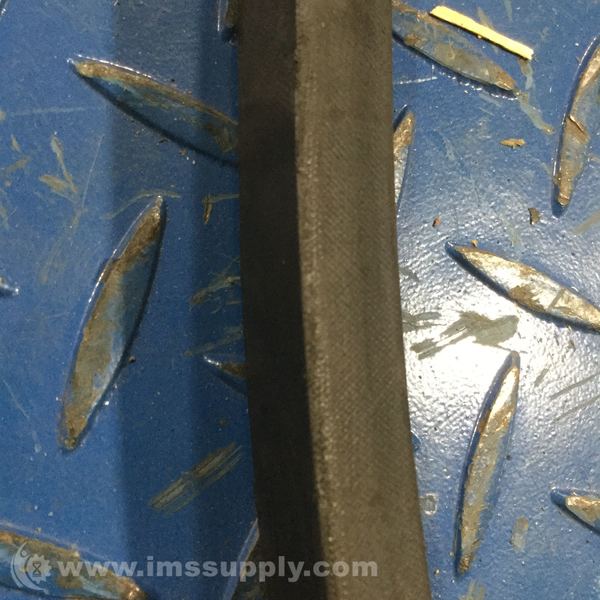

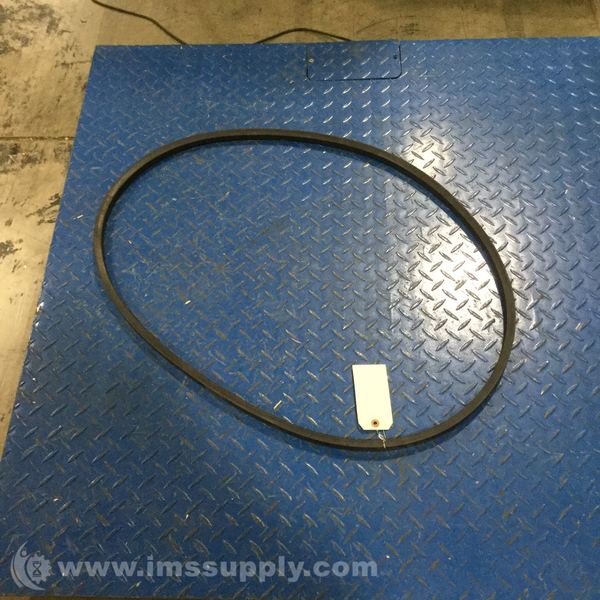

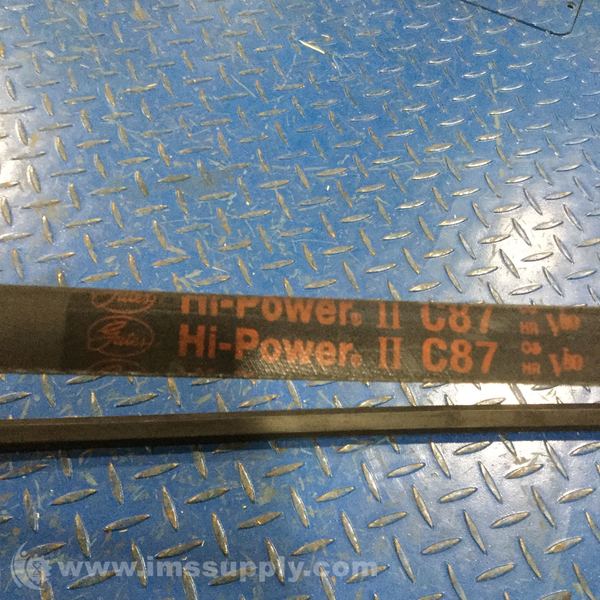

Gates C87 Hi-Power II V-Belt
Classical Hi-Power II V-Belt - C Section, 7/8 in Top Width, 1 Strand, 91 in Nominal Outside Length, Smooth
Specifications
- Angle: 40
- Belt Back Side: Smooth
- Belt Category: Classical Series - Inch
- Belt Coating: Flex-Weave Oil and Heat Resistant Cover
- Belt Height: 17/32 in
- Belt Inside: Smooth
- Belt Material: SBR
- Belt Series: Hi-Power II Belts
- Belt Style: Hi-Power II
- Belt/Slab: Belt
- Cogged/Smooth: Smooth
- Color: Black
- Construction: Banded
- Country of Origin: MX
- Cross Section Designation: C
- Effective Length: 91.18 in / 2316 mm
- Length Type: Outside Circumference
- Material: SBR
- Maximum Operating Temperature: 140 F
- Maximum Temperature: +140 F / +60 C
- Minimum Operating Temperature: -22 F
- Minimum Temperature: -22 F / -30 C
- Nominal Outside Length: 91 in
- Nominal Thickness: 0.53 in
- Nominal Thickness (mm): 13
- Notched: No
- Number Of Strands: 1
- Number of Sides: Single Sided
- Outside Circumference: 91.39 in / 2321 mm
- Overall Height: 0.5313 in
- Reinforcing Cord Material: Polyester
- Resistance Features: Oil Resistant
- Resistance Properties: Heat Resistant; Oil Resistant
- Rib Width: 0.875 in
- Section: C
- Standards: ISO 1813, RMA
- Standards Met: ISO 1813, RMA
- Static Conductive: Yes
- Strand Count: 1 Strand
- Strand Quantity: 1
- Surface Finish: Smooth
- Temperature Range: -22 Deg. F to +140 Deg. F (+30 Deg. C to +60 Deg. C)
- Thickness: 0.531 in
- Top Belt Width per strand: 0.88 in
- Top Belt Width per strand (mm): 22
- Top Width: 7/8 in
- Top Width Per Strand: 7/8 in
- Type: V-Belts
- V-Belt Section: C
- V-Belt Type: Classical
- Weight: 1.74 lbs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
