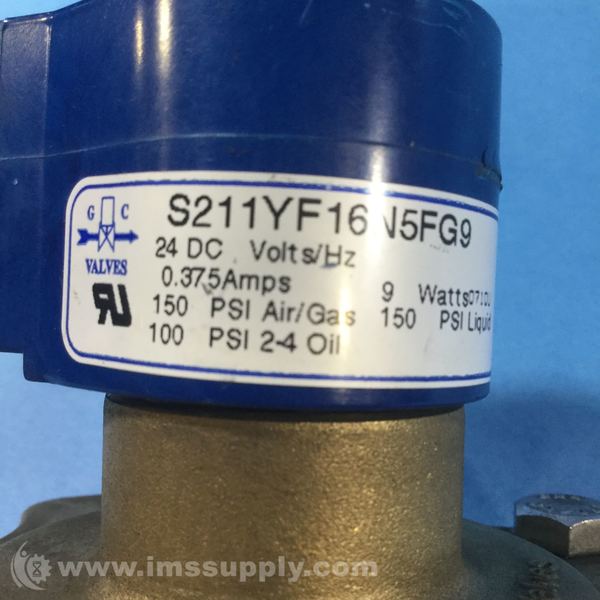

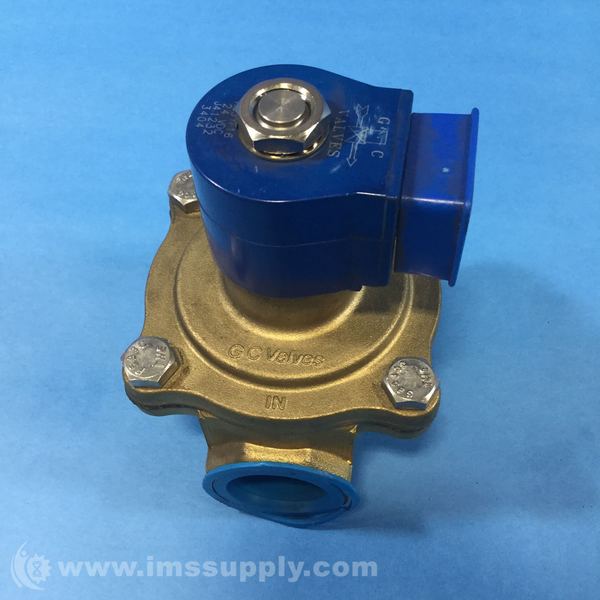

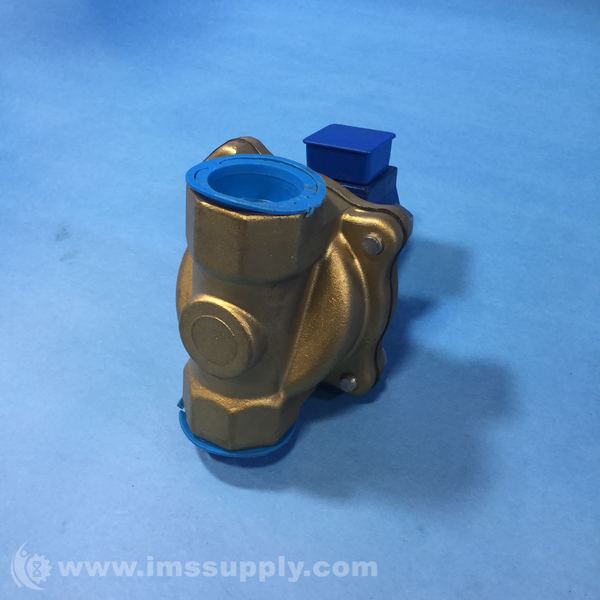

GC VALVES S211YF16N5FG9 2-WAY DIAPHRAGM VALVE
Quick Overview
Manufactured By: GC VALVES
Manufacturer Part Number: S211YF16N5FG9
IMS Product Code: 1787365
Packaging: Sold Individually
Description:
Gc Valves S211YF16N5FG9 2-Way Diaphragm Valve
2-Way Normally Closed Diaphragm Valve, Brass body, Nitrile seal, 1" NPT, 24V DC, CE, CSA, UL approvals
Specifications
- Valve Series: S21
- Function: 2-Way Normally Closed
- Housing: DIN
- Coil Class: F
- Voltage: 24V DC
- Seal Material: Nitrile
- Body Material: Brass
- Pipe Size: 1" NPT
- Orifice: 1"
- Media Type: Aggressive Media, Air & Neutral Gases, Light Oil, Slightly Aggressive Media, Steam, Water
- Approvals: CE, CSA, UL
- Valve Type: Diaphragm
- Configuration: 2-port (2-way)
- Position: 2-position
- Action: N.C.
- Cv: 13
- Minimum Operating Pressure: 5 psi
- Wiring Plug: 18mm DIN style
- Pressure Range: 1 to 250psi
- Cv Range: to 29
- Orifice Size Range: to 1-1/2"
- Port Size Range: 3/8" to 2" NPT
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 2 minutes.
