GEMS 25359 PISTON FLOW SWITCH
Quick Overview
Manufactured By: GEMS SENSORS
Manufacturer Part Number: 25359
IMS Product Code: 1810236
Packaging: Sold Individually
Description:

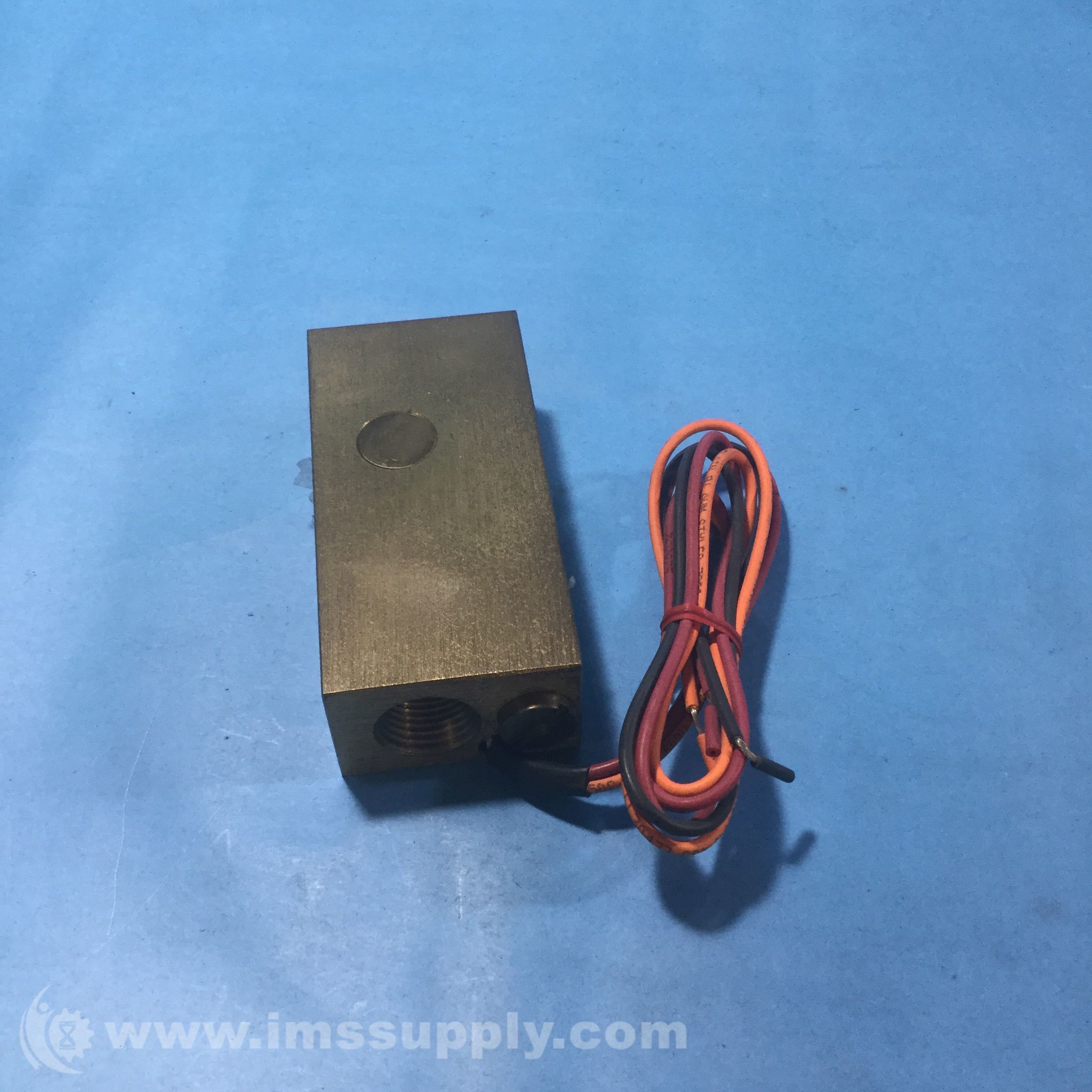

GEMS 25359 Piston Flow Switch

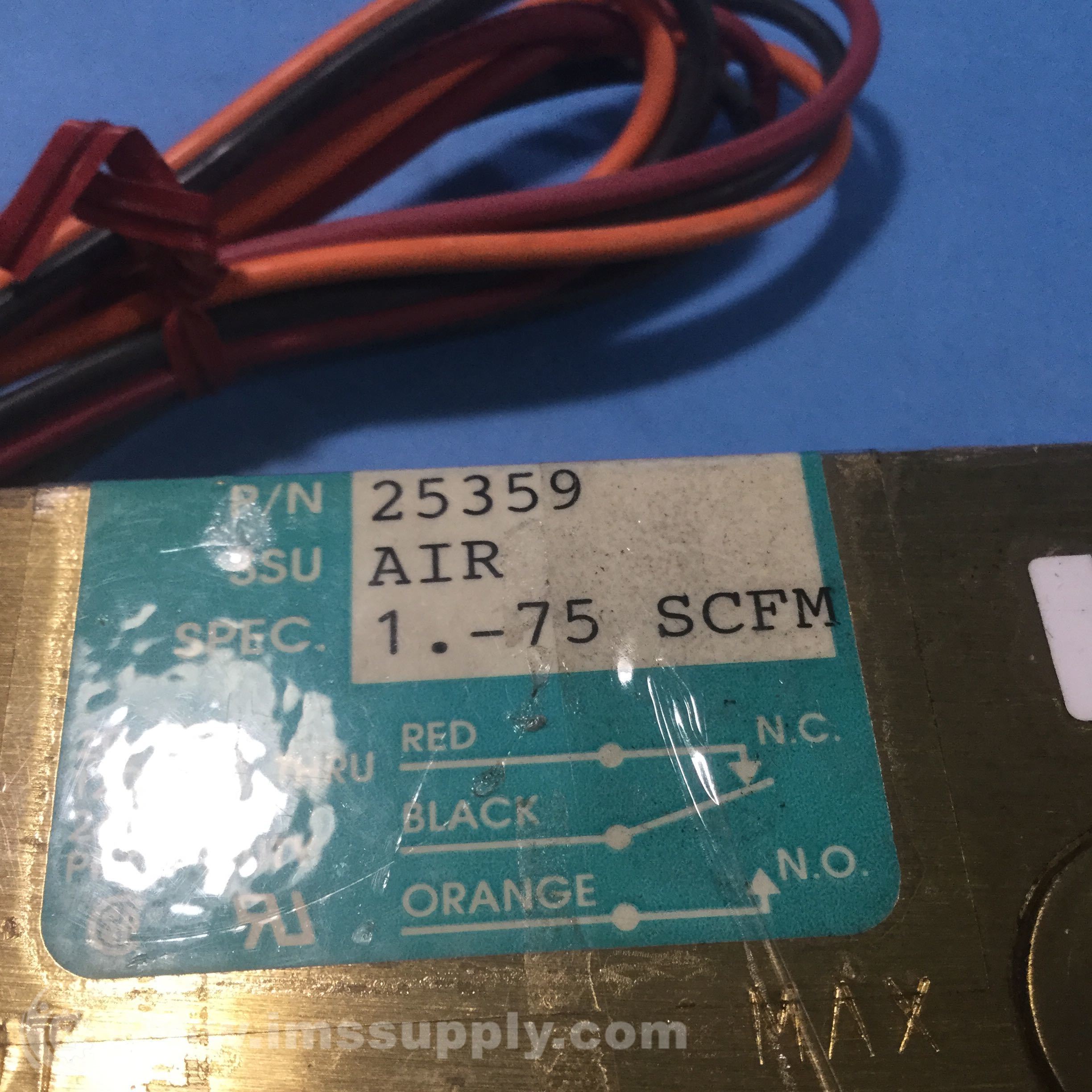

Externally adjustable flow switch with SPDT switch type, brass body, and 1/2" NPT female port size. Rated for 1-75 SCFM air flow.
Specifications
- Sensor Type: Piston Type
- Body Material: Brass
- Wetted Materials: Brass, Viton, Epoxy
- Minimum Pressure: 5 psi
- Maximum Pressure: 1,000 psi
- Minimum Temperature: -20 degrees F
- Maximum Temperature: 300 degrees F
- Flow Setting Range: 0.50 - 20 GPM
- Switch Type: SPDT (20 VA)
- Port Size: 1/2" NPT Female
- Electrical Termination: 24" Long, 18 AWG, Polymeric Leads
- Recommended Filtration: 50 micron
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
