GEMS LS-1700 FLOAT LEVEL SWITCH
Quick Overview
Manufactured By: GEMS SENSORS
Manufacturer Part Number: LS-1700
IMS Product Code: 1781983
Packaging: Sold Individually
Description:

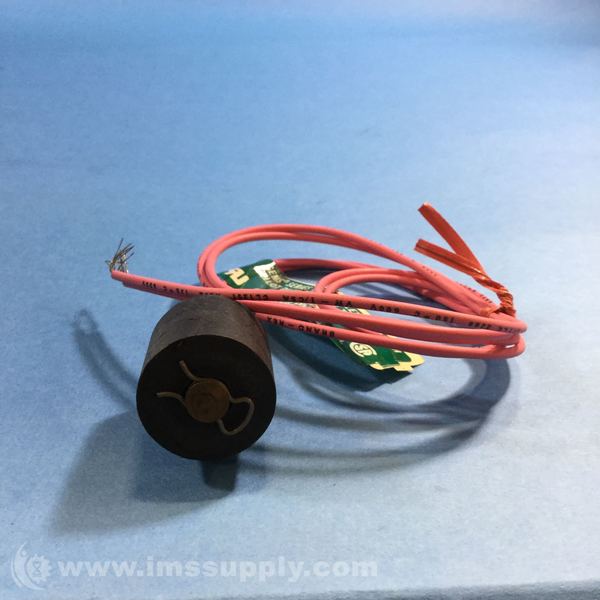

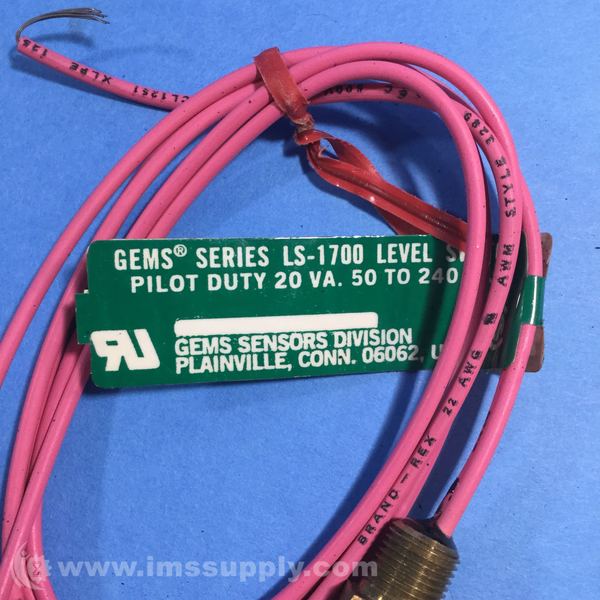

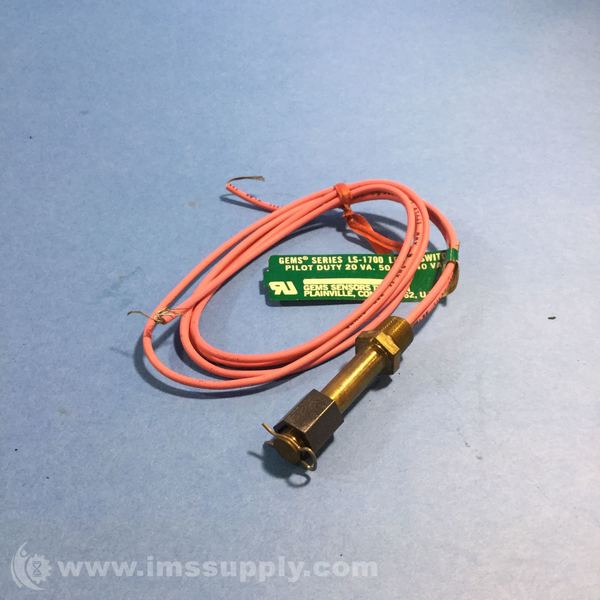

GEMS LS-1700 Float Level Switch
Single-point level switch with hermetically sealed SPST 20 VA reed switch operated by permanent magnets within Teflon float. Vertical mounting with 1/8" NPT Male connection. 24" long 22 AWG polymeric leads.
Specifications
- Sensor Type: Float Type
- Primary Material Of Construction: Alloy
- Wetted Materials: 316 Stainless Steel, Teflon, Epoxy
- Stem Material: Stainless Steel
- Float Material: Teflon
- Float Diameter: 1"
- Actuation Level: 3/4"
- Min. Liquid SG: 0.85
- Maximum Pressure: 1,000 psi
- Minimum Temperature: -40°F
- Maximum Temperature: 250°F
- Mounting Size: 1/8" NPT Male
- Mounting Style: Vertical
- Electrical Termination: 24" Long, 22 AWG, Polymeric Leads
- Switch Type: SPST (20 VA)
- Switch Operation: Normally Open (Non-Reversible)
- Termination Type: Cable
For Parts or Repair:
A non-functional product sold as-is for parts or repair.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 1 minutes.
