GEMS 26918 BRASS FLOW SWITCH
Quick Overview
Manufactured By: GEMS
Manufacturer Part Number: 26918
IMS Product Code: 2148830
Packaging: Sold Individually
Description:

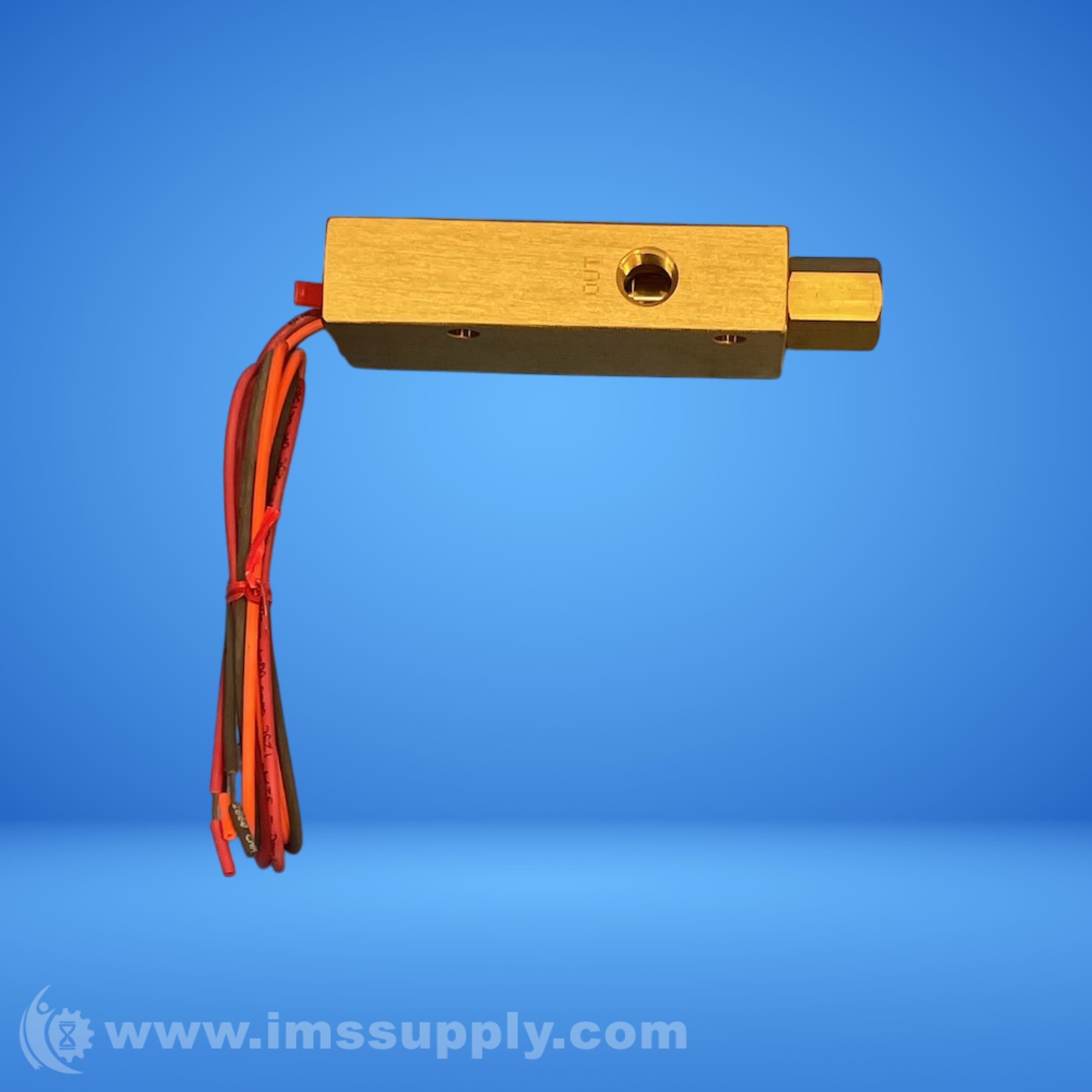

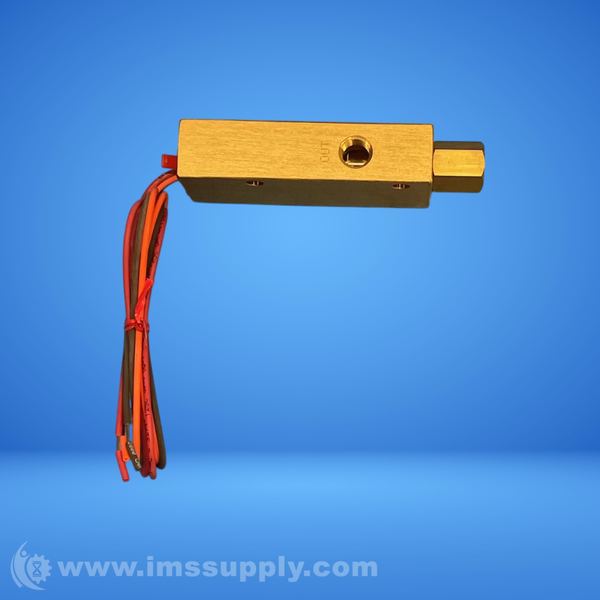

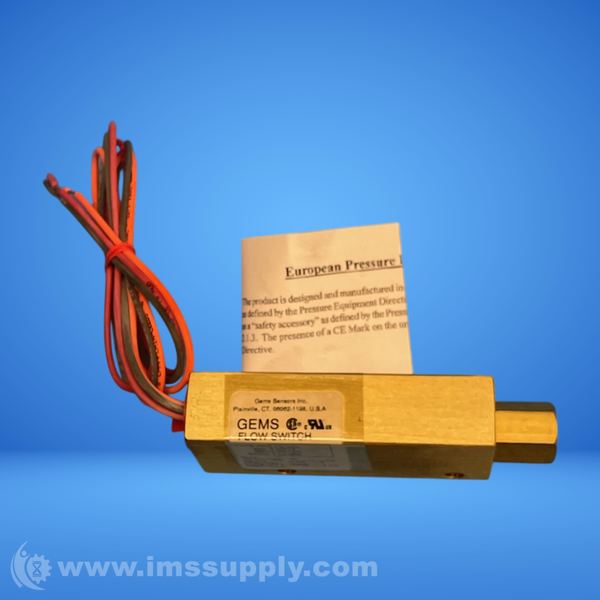

Gems 26918 Brass Flow Switch
Brass flow switch with 1/4" NPT female port size and 1.0 GPM flow rate setting.
Specifications
- Flow Rate Settings: Liquids - 0.1 GPM to 1.5 GPM
- Port Size: 1/4" NPT
- Primary Construction Material: Brass or Stainless Steel
- Setting Type: Fixed
- Wetted Materials: Brass or 316 Stainless Steel
- Piston In Brass Housing: Polysulfone for water; Brass for oil or air
- Piston Stainless Steel Housing: 316 Stainless Steel
- Spring: 316 Stainless Steel
- O-Ring: Viton
- Other Wetted Parts: Epoxy
- Pressure Rating Operating, Maximum: 1000 PSIG (69 bar)
- Proof: 2500 PSIG (172 bar)
- Burst: 5000 PSIG (345 bar)
- Operating Temperature With Brass or S.S. Piston: -20°F to +300°F (-29°C to +148.9°C)
- With Polysulfone Piston: -20°F to +225°F (-29°C to +107.2°C)
- Repeatability: 1% Maximum Deviation
- Set Point Accuracy: ±10%
- Set Point Differential: 15% Maximum

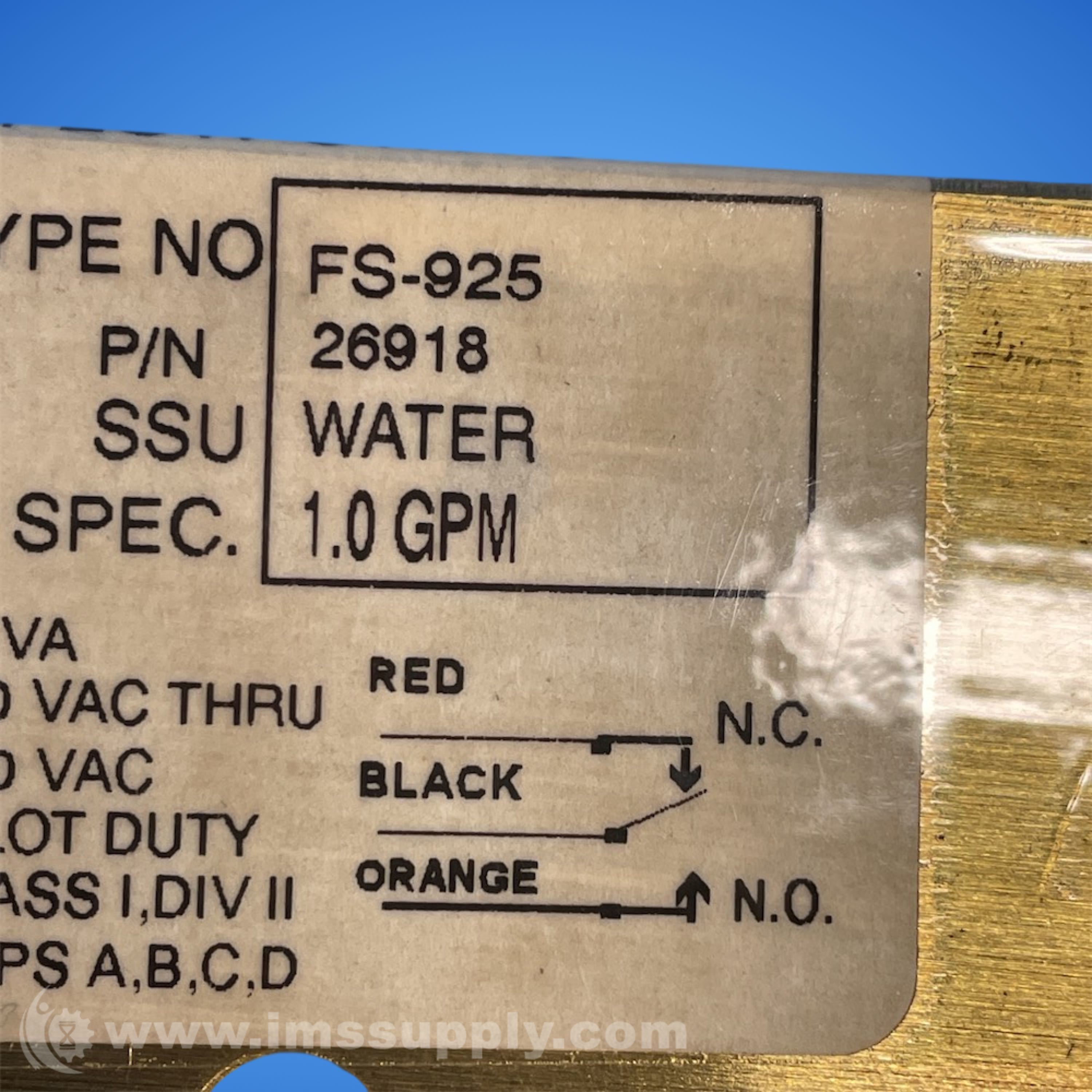

- Switch: SPDT, 20 VA
- Inlet/Outlet Ports: 1/4? NPT
- Electrical Termination: No. 18 AWG, 24? L., Polymeric Lead Wires
- Safety Approval: CE, CSA, FM, RoHS, UL
