GEMS 30288 FLOAT LEVEL SWITCH
Quick Overview
Manufactured By: GEMS
Manufacturer Part Number: 30288
IMS Product Code: 1935074
Packaging: Sold Individually
Description:

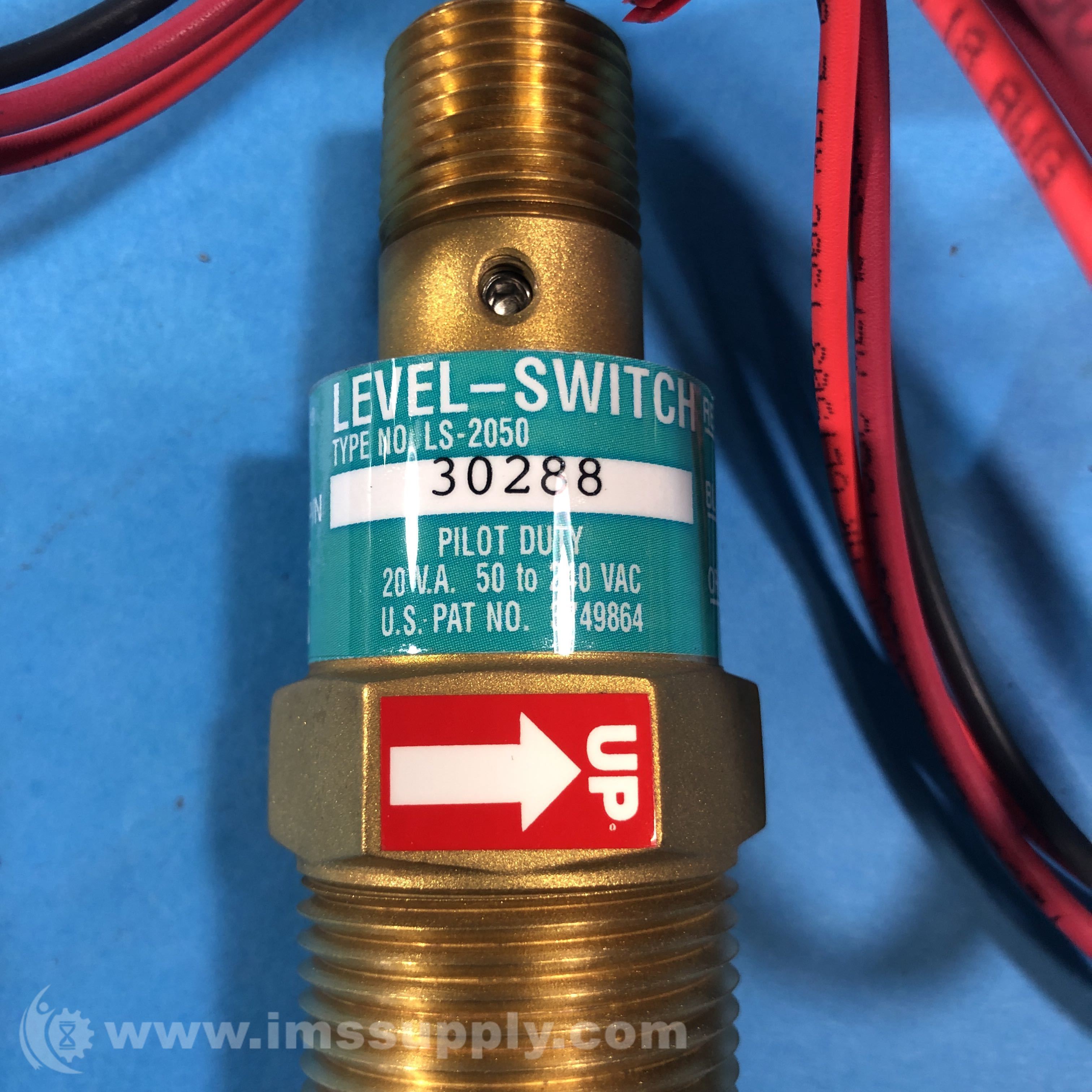

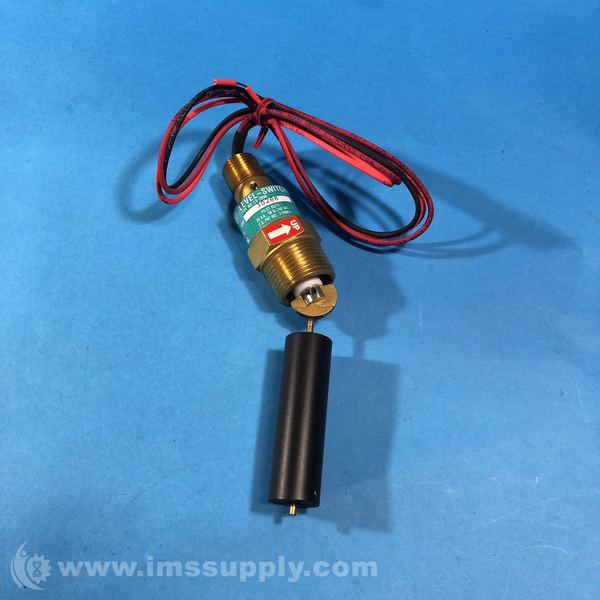

Gems 30288 Float Level Switch
Single-point level switch with horizontal float, brass body, SPDT switch, 150 psi max pressure, -40 to 250 degrees F temperature range.
Specifications
- Model: LS-2050
- Sensor Type: Float Type
- Primary Material Of Construction: Alloy
- Wetted Materials: Brass, Buna N, 316 Stainless Steel, Beryllium Copper, Telon, Ceramic
- Stem Material: Brass
- Float Material: Buna N
- Float Diameter: 0.9 inches
- Actuation Level: 5/8 inches
- Min. Liquid SG: 0.8
- Maximum Pressure: 150 psi
- Minimum Temperature: -40 degrees F
- Maximum Temperature: 250 degrees F
- Mounting Size: 1 inch NPT Male
- Mounting Style: Horizontal

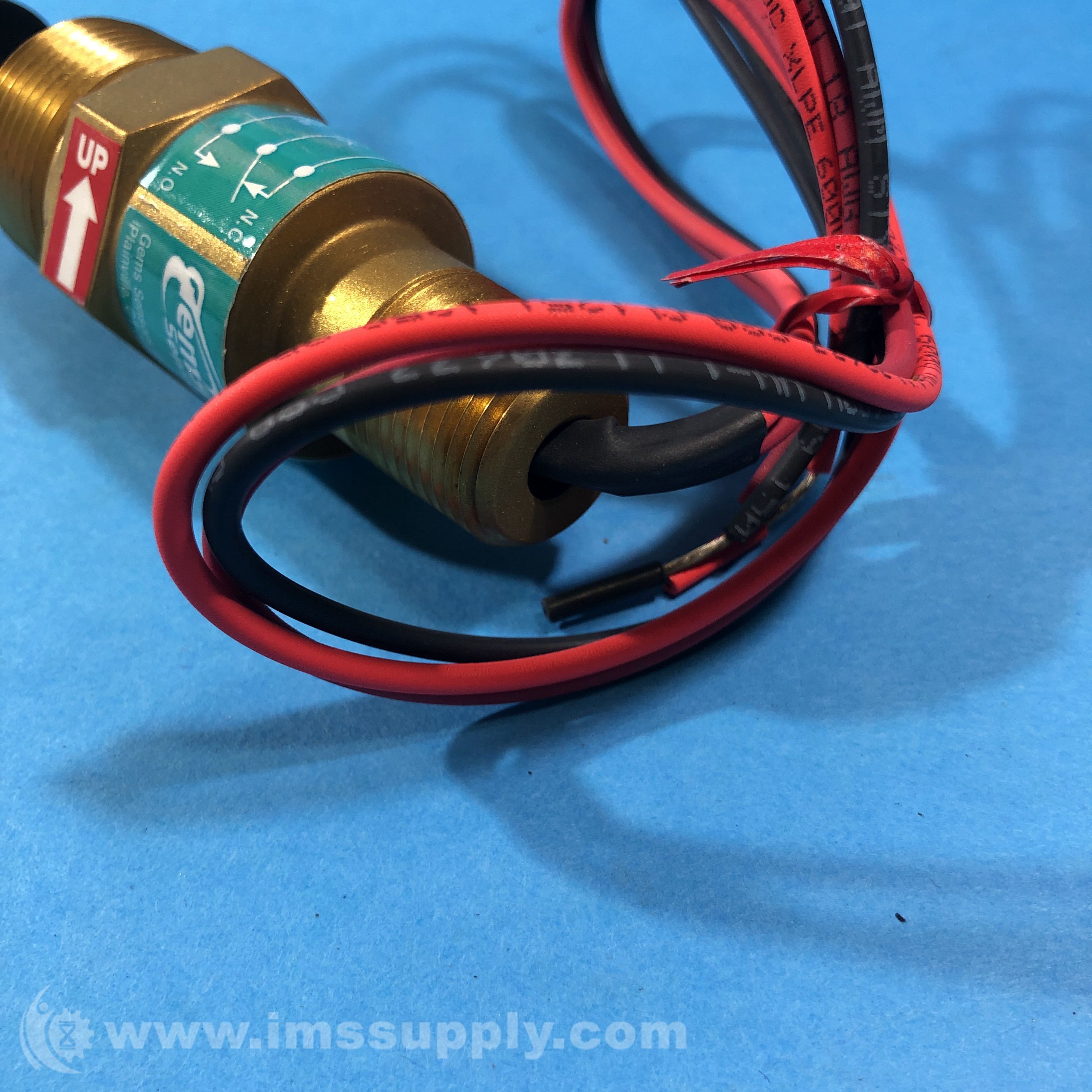

- Electrical Termination: 25 inches Long, 18 AWG, Polymeric Leads
- Switch Type: SPDT (20 VA)
- Switch Operation: Selectable
- Output Current: 400 mA
- RoHS: Compliant
- Approvals: CE, CSA, UL

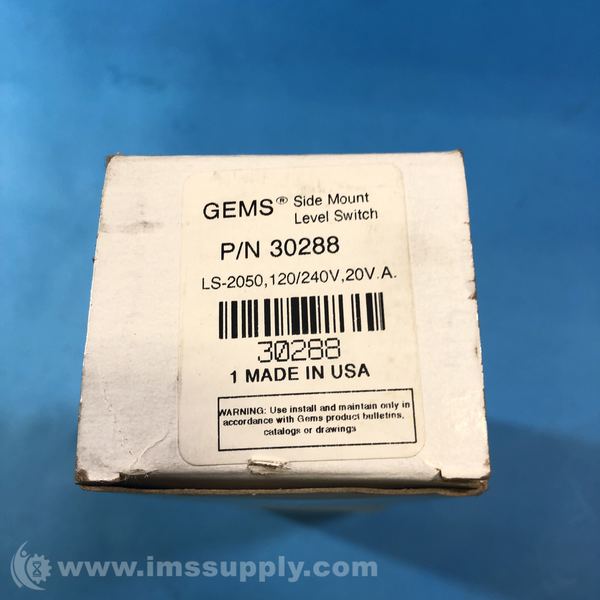

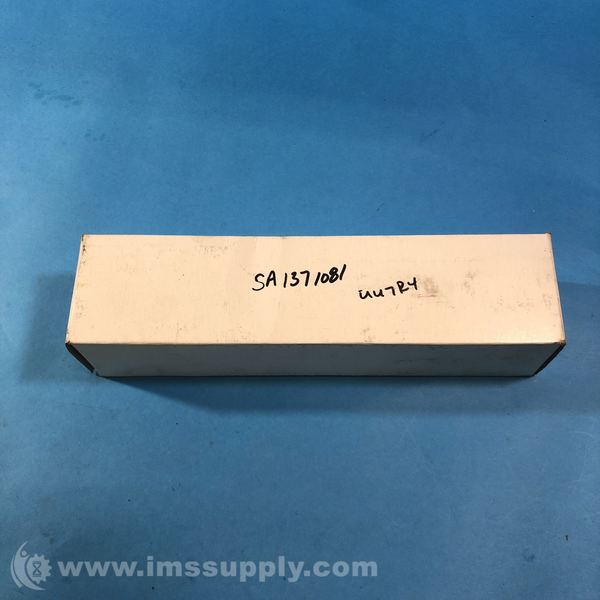

New - Open Box:
