More Views
GEMS 57143 FLOAT SWITCH
Quick Overview
Manufactured By: GEMS
Manufacturer Part Number: 57143
IMS Product Code: 2138271
Packaging: Sold Individually
Description:
Gems 57143 Float Switch

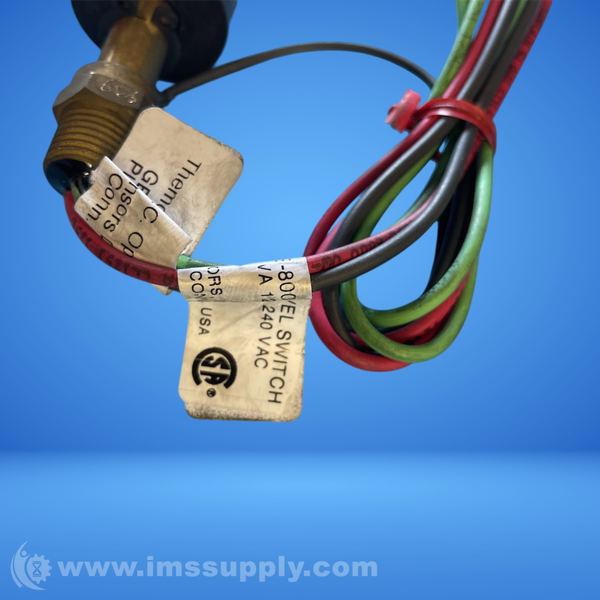

Float type level switch with temperature monitoring, brass and Buna N construction, 1/4" NPT male mounting, SPST (20 VA) switch, 24" long 18 AWG polymeric leads.
Specifications
- Series: TH-800
- Sensor Type: Float Type
- Wetted Materials: Brass, Buna N, Berylium Copper
- Stem Material: Brass
- Float Material: Buna N
- Float Diameter: 1 1/4"
- Actuation Level: 1 1/2"
- Min. Liquid SG: 0.75
- Maximum Pressure: 150 psi
- Minimum Temperature: -40°F
- Maximum Temperature: 230°F
- Mounting Size: 1/4" NPT Male
- Mounting Style: Vertical
- Electrical Termination: 24" Long, 18 AWG, Polymeric Leads
- Switch Type: SPST (20 VA)
- Switch Operation: Normally Open (Reversible)
- Approvals: CSA, UL
- Output Current: 400 mA
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
