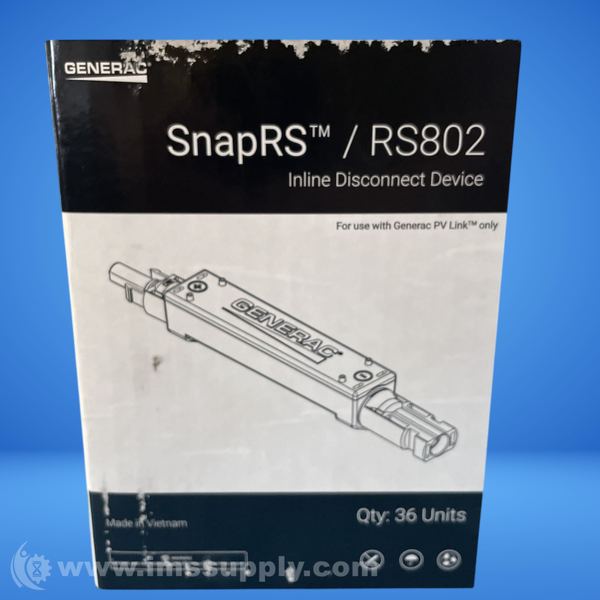

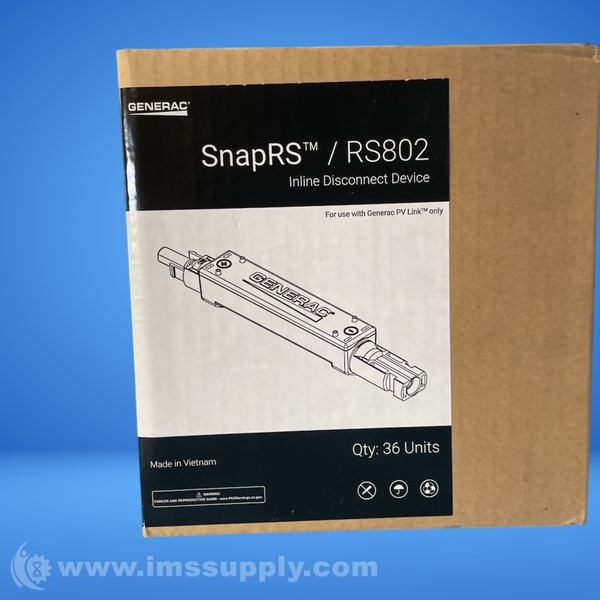

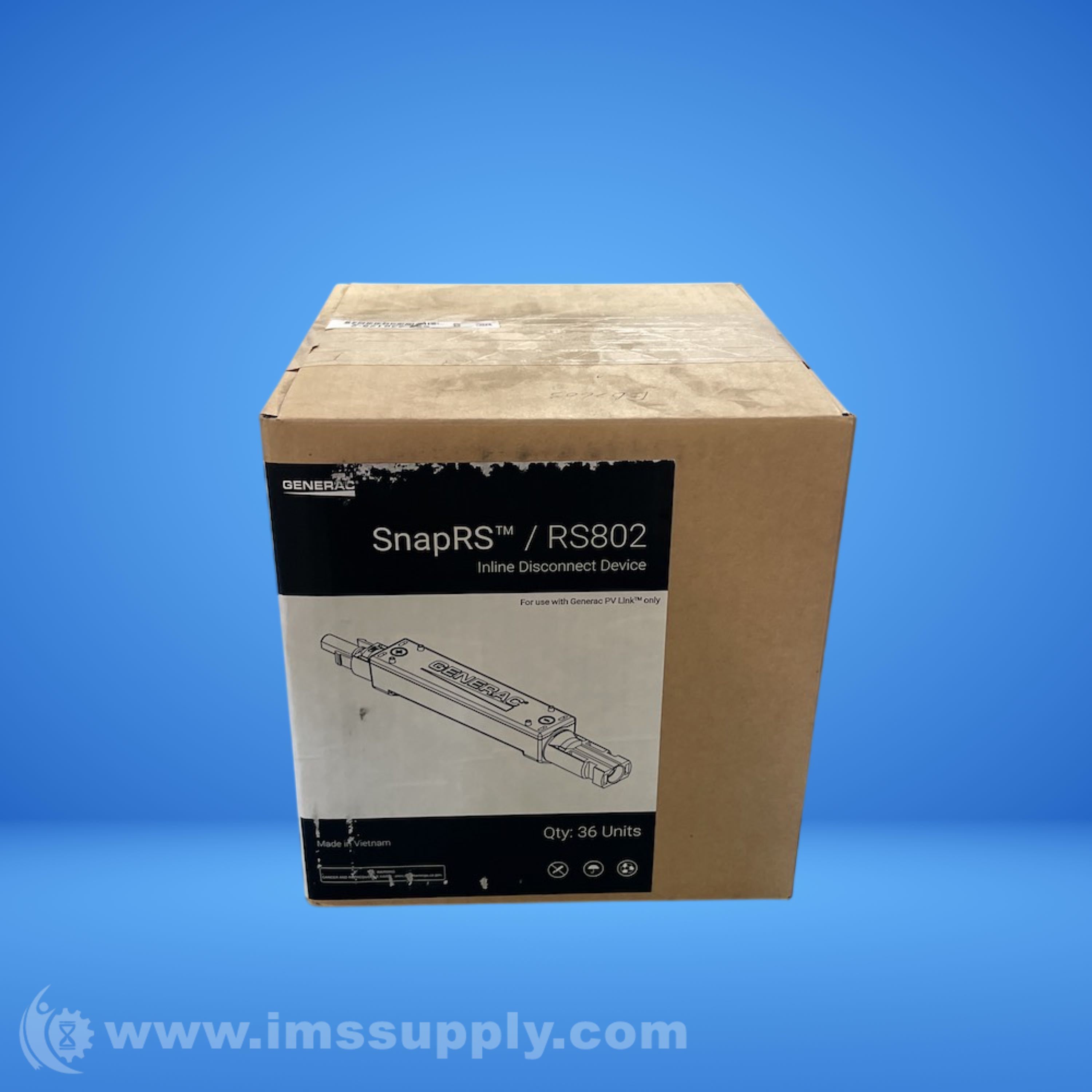

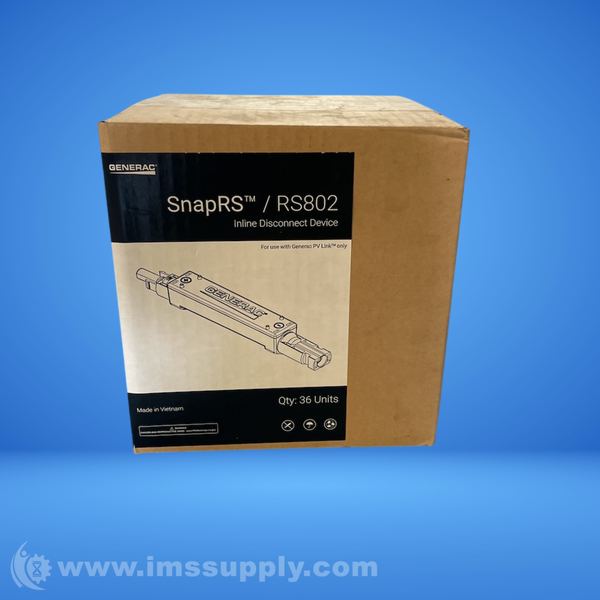

GENERAC RS802 INLINE DISCONNECT SWITCH
Quick Overview
Manufactured By: GENERAC
Manufacturer Part Number: RS802
IMS Product Code: 2175379
Packaging: Box of 36
Sold Individually
Box of 36
Description:
Generac RS802 Inline Disconnect Switch
In-Line Module Level Rapid Shutdown Device with MC4 Connectors, Requires Generac PWRcell Inverter and PV- Link Optimizer(s)
Specifications
- Type: In- Line Module Level Rapid Shutdown Device
- PV Module Max VOC: 75 V
- Efficiency: 99.8%
- Max input Current: 15 A
- Max isc of String: 12 A
- Max total QTY in Substring: 10
- Enclosure Rating: NEMA 6P
- Operating Temperature: -40 to 158 degrees F (-40 to 70 degrees C)
- Certifications: UL1741
- Protections: PVRSE
- Weight: 3.6oz/103g
- Dimensions, L x W x H: 7" x 1" x 1.18"
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 9 hours and 23 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 23 minutes.
