GO SWITCH 11-11522-F3 LEVERLESS LIMIT SWITCH
Quick Overview
Manufactured By: GO SWITCH
Manufacturer Part Number: 11-11522-F3
IMS Product Code: 786584
Packaging: Sold Individually
Description:

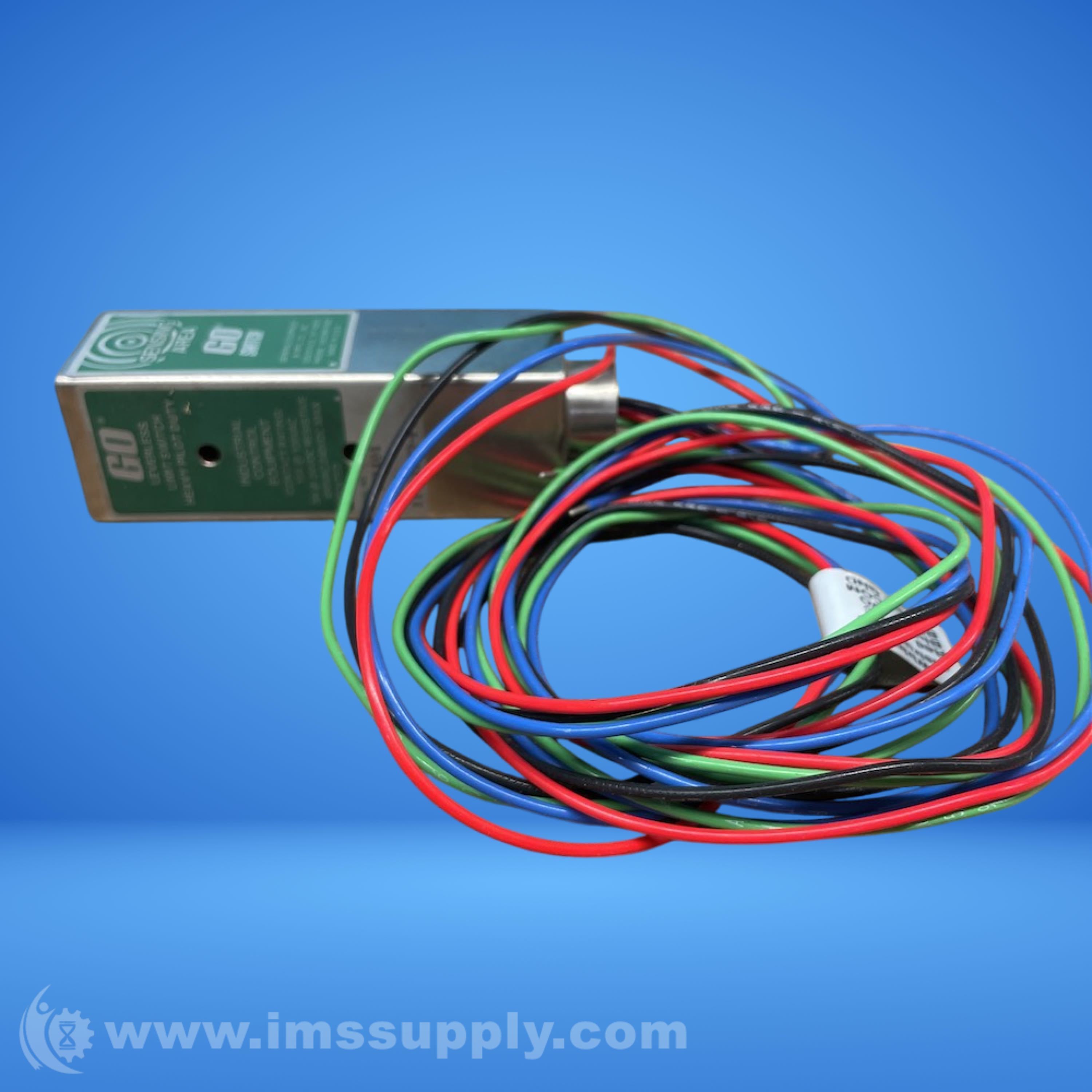

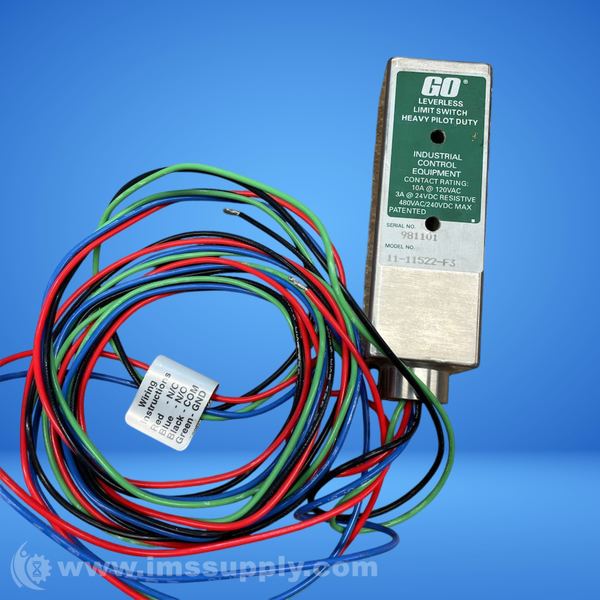

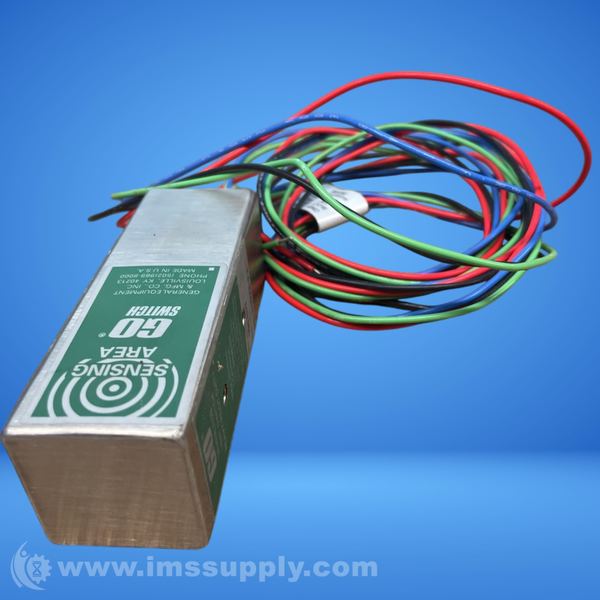

Go Switch 11-11522-F3 Leverless Limit Switch
Leverless limit switch using hybrid technology to detect ferrous targets via an electro-magnetic field. Stainless steel enclosure with SPDT contact arrangement.
Specifications
- Contact Form: SPDT - Single Pole Double Throw
- Enclosure Material: (316) Stainless Steel
- Operating Temperature: -40°C to +176°C / -40°F to +350°F
- Max Current: 10A
- Sensing Range with Magnet: Up to 95.00mm (3-3/4in)
- Range (ferrous target): 2.5mm|0.10"
- Repeatability: Approx. 0.05mm (0.002")
- Response Time: 8 ms
- Certification & Approvals: FM UL & CSA
- Hazardous Location: Listed / Class I, II, III Div 1 & Div 2
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 30 minutes.
