GRACO 256200 T1 SUPPLY PUMP
Quick Overview
Manufactured By: GRACO
Manufacturer Part Number: 256200
IMS Product Code: 2121467
Packaging: Sold Individually
Description:

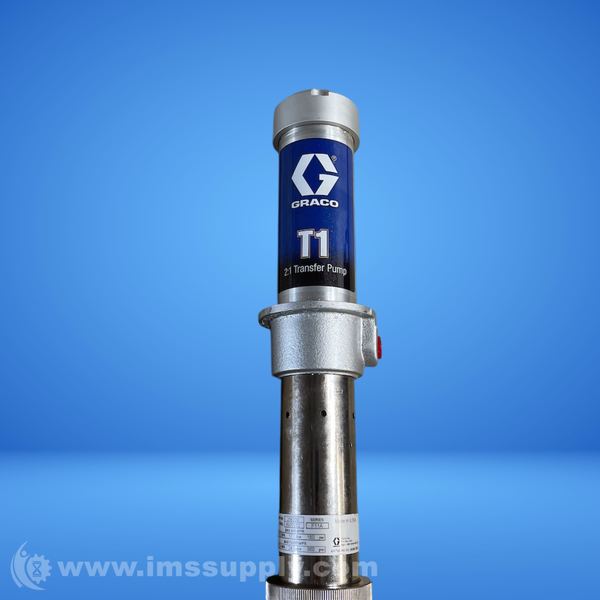

Graco 256200 T1 Supply Pump
Pneumatic piston pump with 2:1 fluid to air ratio, stainless steel construction, for polyurethane foam and polyurea materials.
Specifications
- Air Inlet Size: 1/4 in
- Air Inlet Thread Type: NPT
- Air Inlet Thread Gender: Female
- Fluid Outlet Size: 1/2 in
- Fluid Outlet Thread Type: NPT
- Fluid Outlet Thread Gender: Female
- Material: Stainless Steel
- Wetted Material: Stainless Steel, PTFE, PEEK
- Pump Ratio: 2:1
- Maximum Air Inlet Pressure: 180 psi
- Maximum Working Pressure: 360 psi
- Maximum Flow Rate: 2.5 GPM
- Maximum Operating Temperature: 180 degrees F
- Sound Pressure Level: 88.7 dB(A)
- Sound Power Level: 96.8 dB(A)
- Weight: 18.5 lb
- Dimensions: 56.4 x 5 x 5 in
New - Missing Box (Special):
Part has hardware.
