GRACO 558951 ELECTRIC PISTON PUMP
Quick Overview
Manufactured By: GRACO
Manufacturer Part Number: 55895 1
IMS Product Code: 2147721
Packaging: Sold Individually
Description:

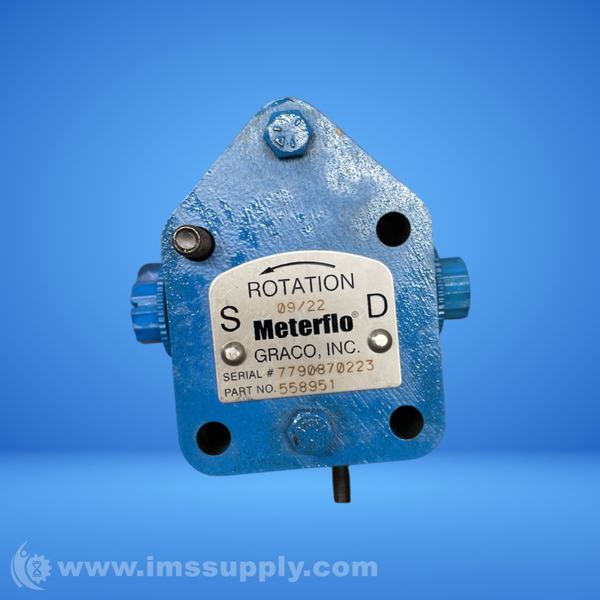

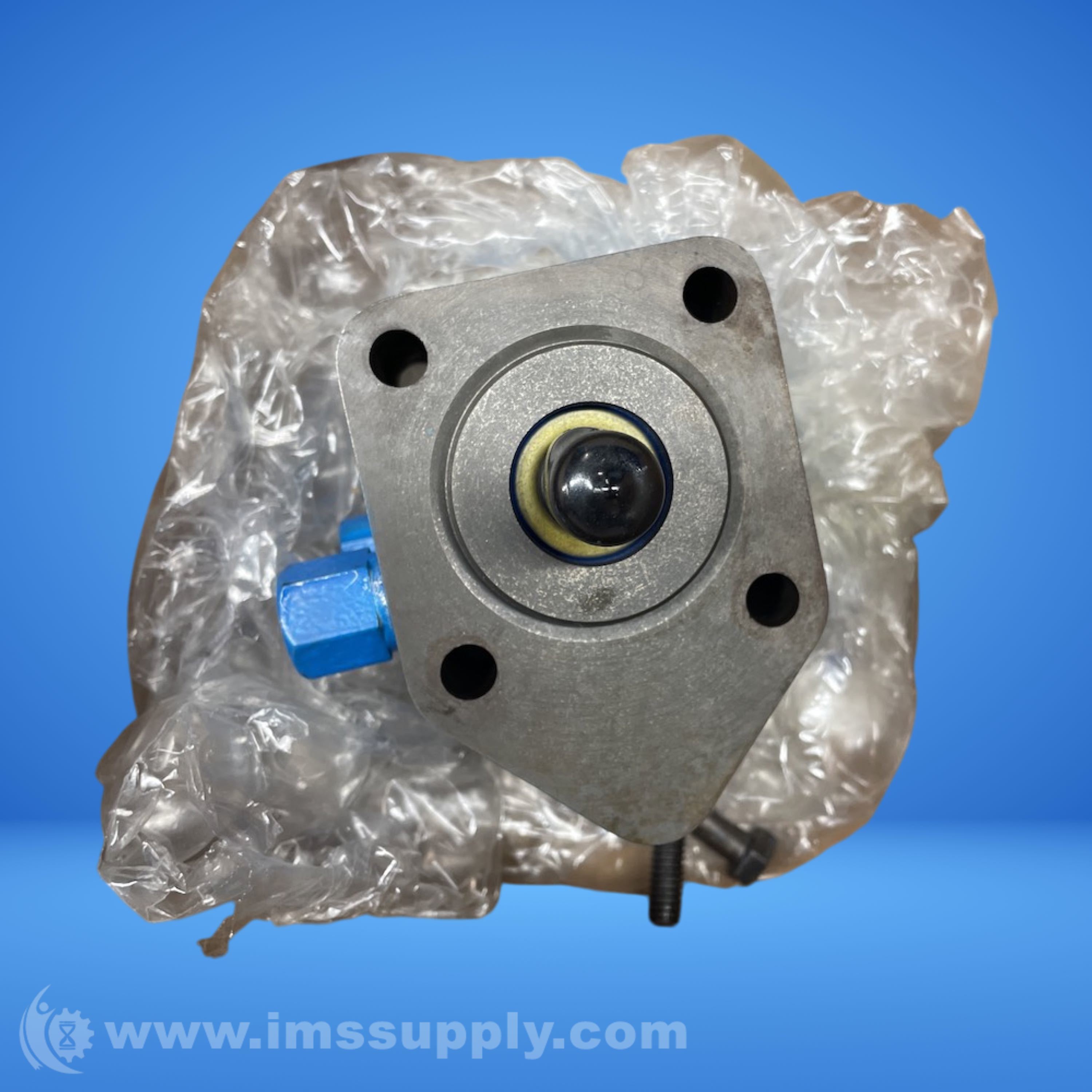

Graco 558951 Electric Piston Pump
Electric piston pump with NPT connection, 168 cu in/min flow rate, 1500 psi maximum fluid output pressure
Specifications
- Application: In-Plant Machinery
- Compatible Material: Oil
- Compatible Metering Device: Series Progressive
- Connection: NPT
- Dimension: 6" (Length) x 3.6" (Width) x 7.2" (Height)
- Fluid Outlet Size (in): 0.5
- Fluid Outlet Thread Type: NPT
- Height: 7.2
- Length: 6
- Maximum Flow Rate (ci/min): 168
- Maximum Fluid Output Pressure (psi): 1500
- Maximum Operating Temperature (°F): 150
- Maximum SUS Grade (SUS): 3000
- Maximum Working Pressure (MPa): 10.3
- Maximum Working Pressure (psi): 1500
- Minimum Operating Temperature (°F): 50
- Minimum SUS Grade (SUS): 300
- Model: Meter-Flo
- Power Type: Electric
- Type: Electric Piston Pump
- Weight: 7
- Width: 3.6
