GRACO D51331 HUSKY 515 AC 1/2" NPT STANDARD PUMP
Quick Overview
Manufactured By: GRACO

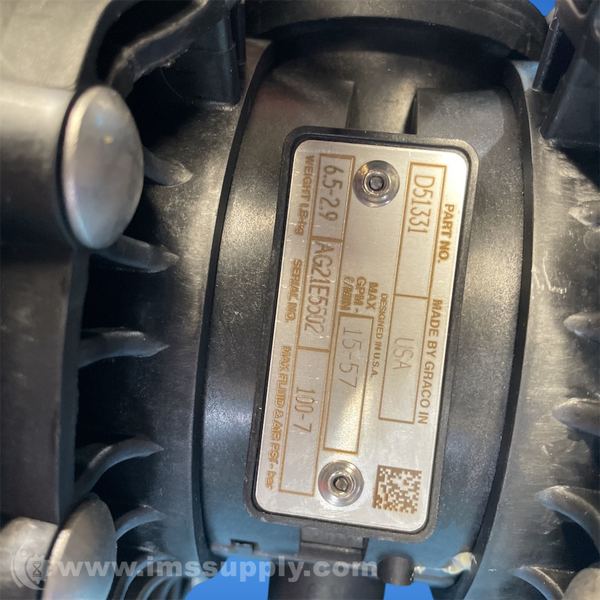

Manufacturer Part Number: D51331
IMS Product Code: 1945662
Packaging: Sold Individually
Description:

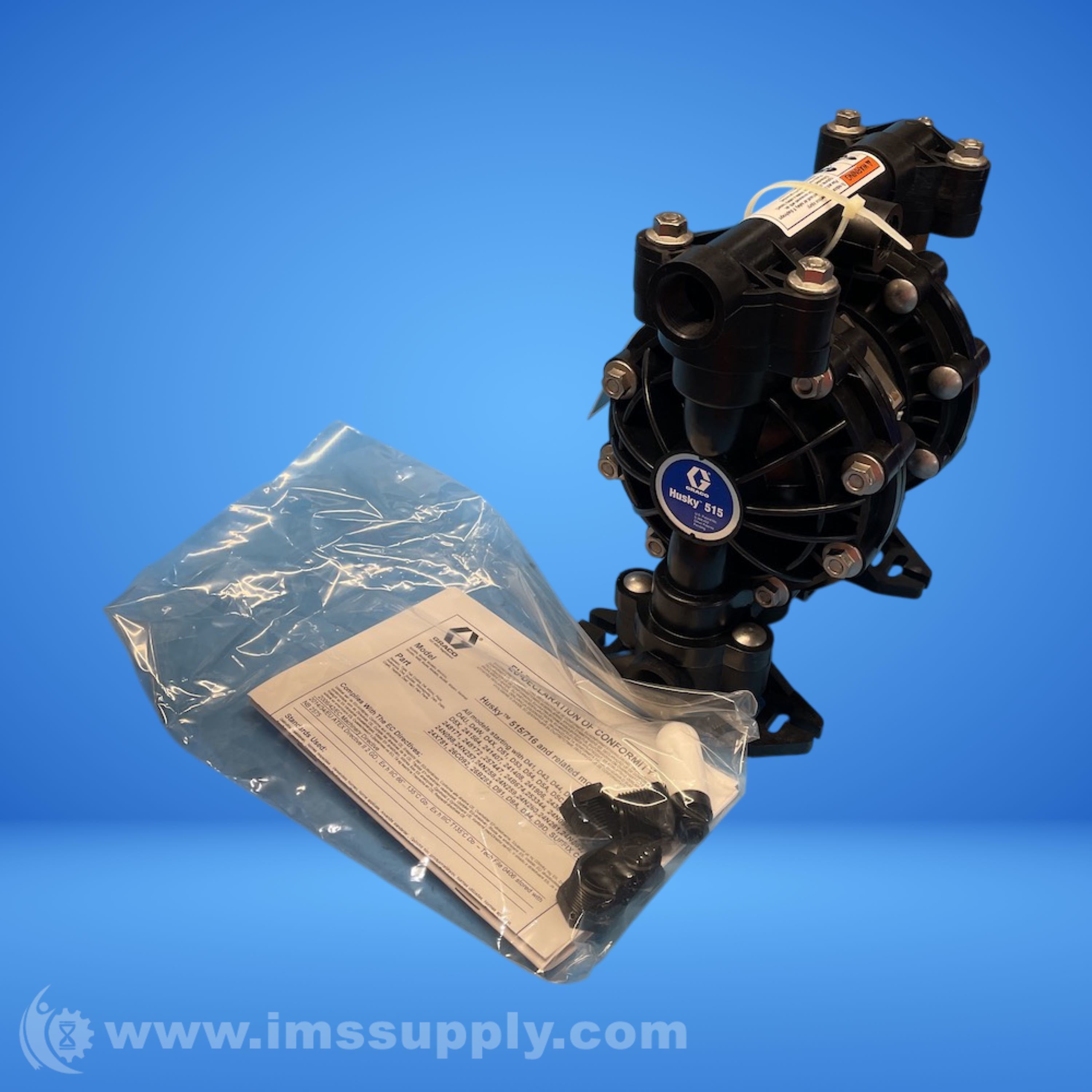

Graco D51331 Husky 515 AC 1/2" NPT Standard Pump
Air-operated double diaphragm pump featuring a polypropylene center section, stainless steel seats and balls, and a PTFE diaphragm. Designed for reliable, low-pulsation fluid transfer in industrial applications.
Specifications
- Air Exhaust Port Size: 3/8 in
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size: 1/4 in
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Industrial
- Ball Material: 316 Stainless Steel
- Center Section Material: Polypropylene
- Connection Type: Threaded
- Diaphragm Material: PTFE/EPDM 2-Piece
- Fluid Inlet Size: 1/2 in
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size: 1/2 in
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Material: Acetal
- Manifold Configuration: Center Port
- Manifold O-Ring Material: PTFE
- Material: Acetal
- Maximum Air Consumption: 28 SCFM
- Maximum Air Pressure: 100 psi
- Maximum Cycle Rate: 400 CPM
- Maximum Flow Rate: 15 GPM
- Maximum Fluid Pressure: 100 psi
- Maximum Operating Temperature: 220 °F
- Maximum Solid Size: 0.09375 in
- Minimum Operating Temperature: 40 °F
- Overall Height: 10.63 in
- Power Source: Air
- Seat Material: Stainless Steel
- Series: 515
- Standards Met: ATEX, CE
- Type: Pneumatic Diaphragm Pump
- Weight: 7.8 lb
- Wetted Material: Acetal, Polypropylene, Stainless Steel, PTFE/EPDM
