GRACO P12ESA DURA-FLO NXT PNEUMATIC PISTON PUMP
Quick Overview
Manufactured By: GRACO
Manufacturer Part Number: P12ESA
IMS Product Code: 1902814
Packaging: Sold Individually
Description:
Graco P12ESA Dura-Flo NXT Pneumatic Piston Pump
Pneumatic piston pump designed for industrial liquid coating and circulation applications.
Specifications
- Application: Supply
- Compatible Material: Solventborne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
- Fluid Outlet Size: 1-1/2 Inch
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stainless Steel Pump, De-Icing Exhaust Motor, DataTrak Monitor, 3 UHMWPE/2 PTFE Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure: 100 psi
- Maximum Continuous Cycle Rate: 60 CPM
- Maximum Flow Rate: 9.2 GPM
- Maximum Operating Temperature: 150 degrees F
- Maximum Working Pressure: 1190 psi
- Model: Dura-Flo
- Motor Type: De-Icing NXT with DataTrak
- Mount Type: Wall or Stand Mount
- Portable: Non-Portable
- Pump Ratio: 12:1
- Seal Material: UHMW, PTFE
- Series: 2-Ball
- Type: Pneumatic Piston Pump
- Wetted Material: Stainless Steel
- Weight: 150+ lbs
- Standards Met: ATEX, CE

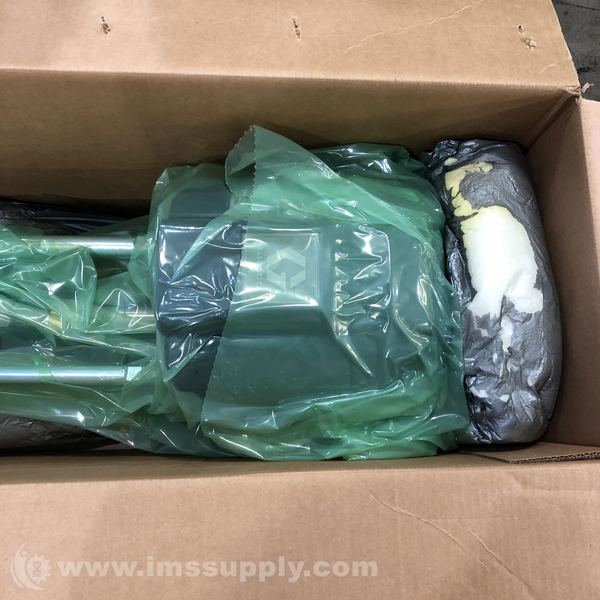

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
