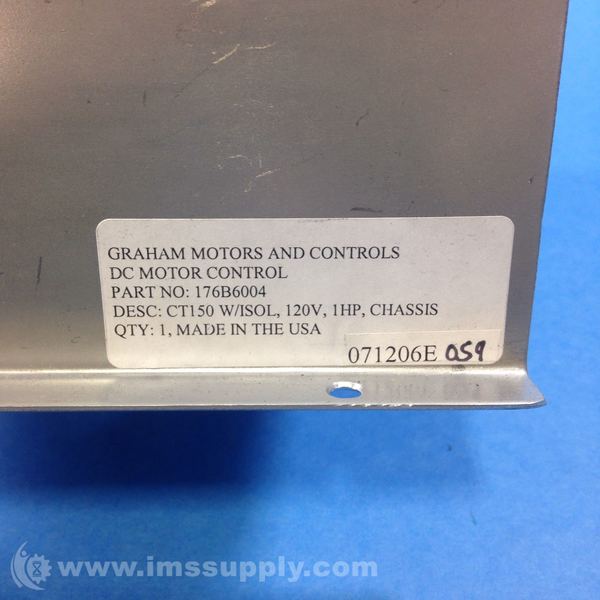

GRAHAM MOTORS AND CONTROLS 176B6004 MOTOR CONTROL

Call For Quote

Quick Overview

Manufactured By: GRAHAM MOTORS AND CONTROLS
Manufacturer Part Number: 176B6004
IMS Product Code: 1735340
Packaging: Sold Individually

Description:

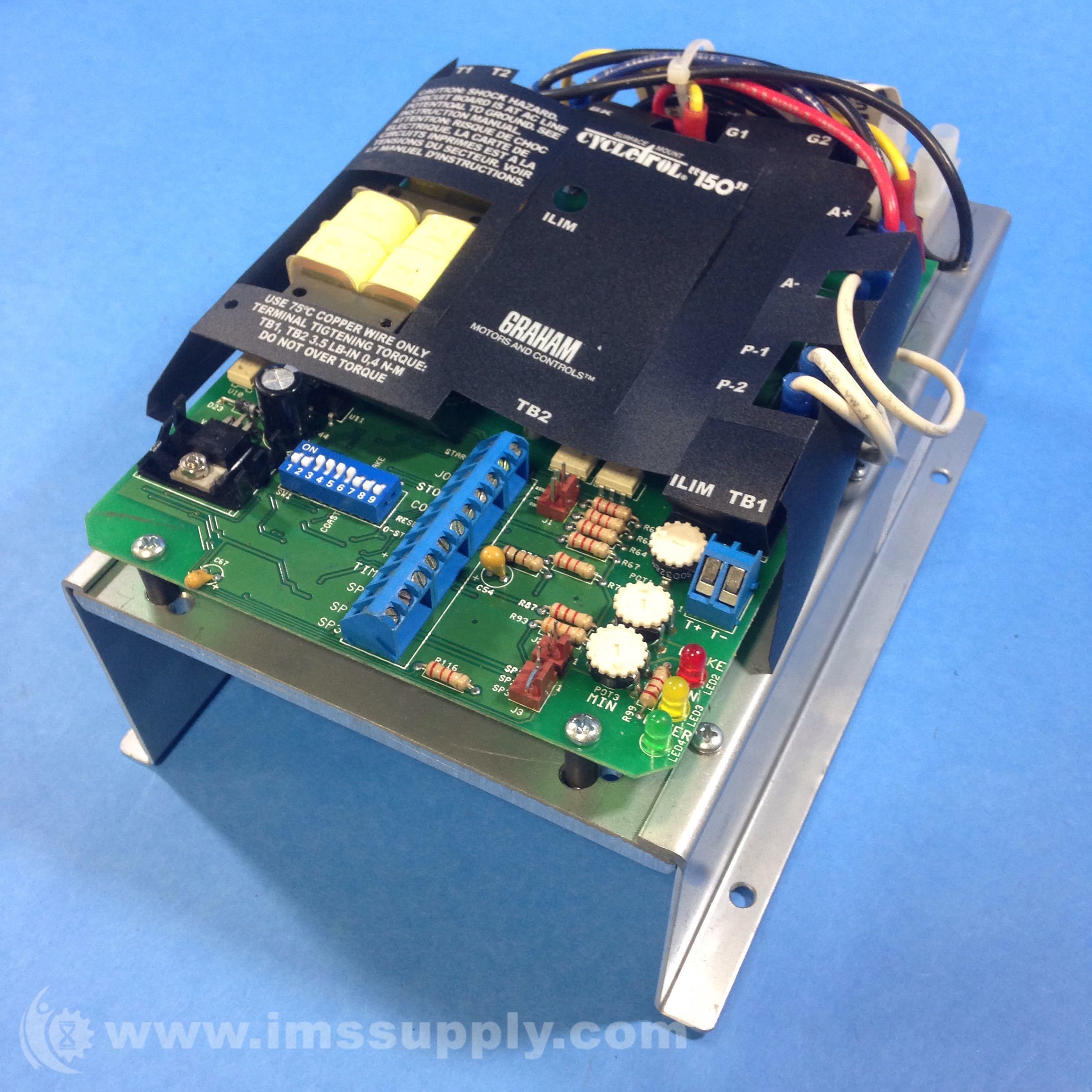

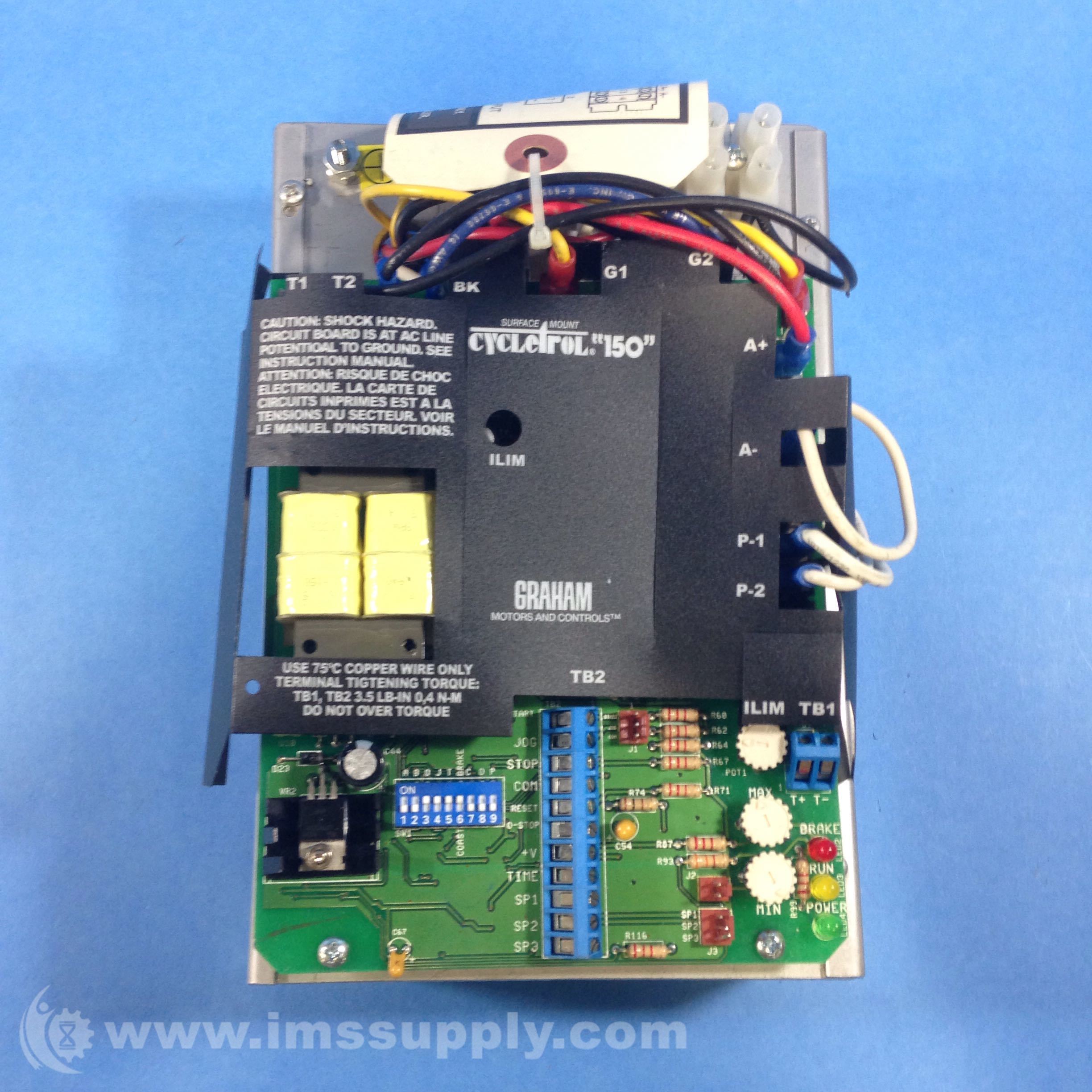

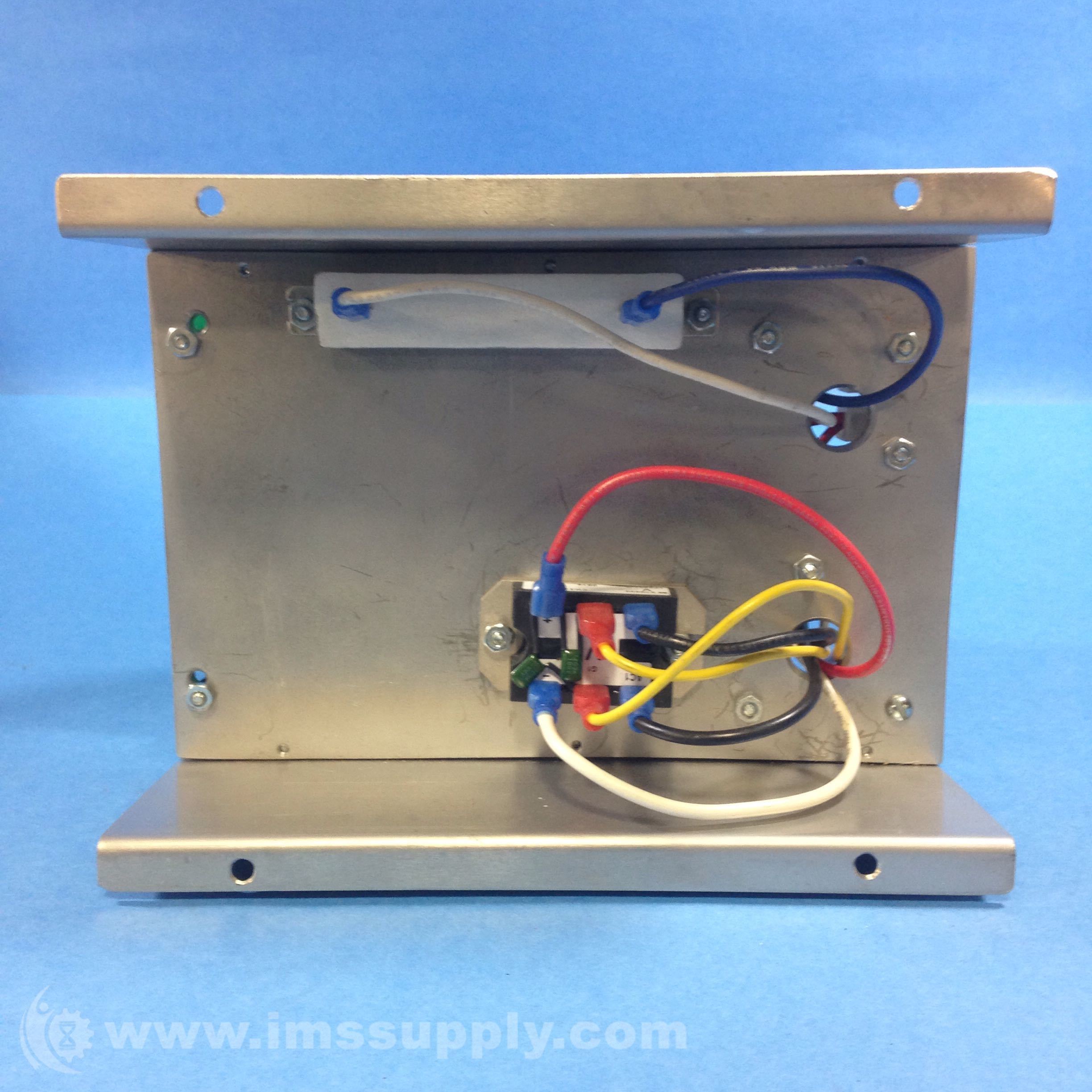

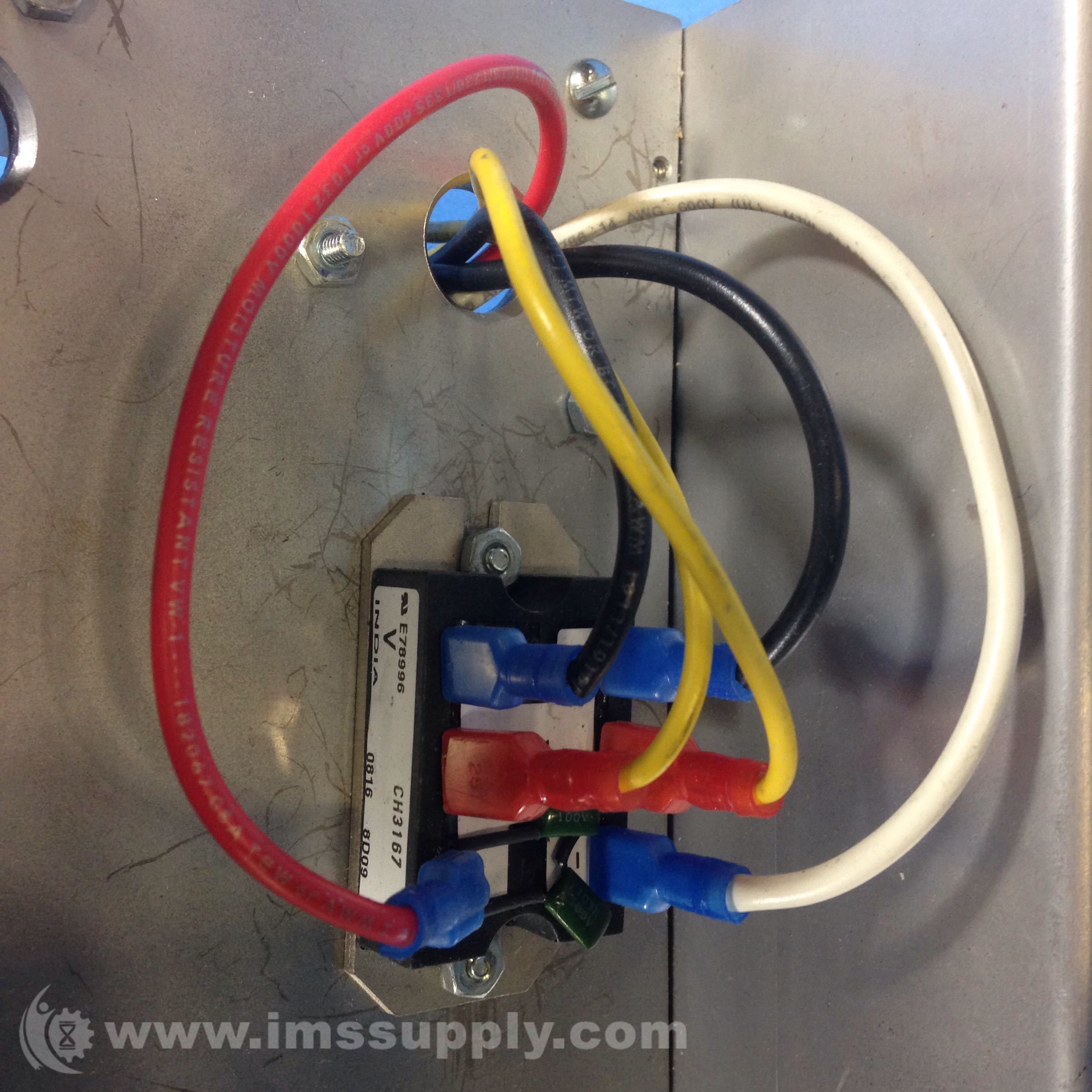

176B6004 - CYCLETROL 150SM

  • All Cycletrol digital logic inputs are optically isolated
  • Versatile logic allows direct interfacing with switches and push-buttons or solid state devices
  • LED function lights are easy-to-see indicators of control status
  • Transient protection by voltage clamping MOV's and RC networks protect power components against power spikes
  • Torque limiting by the Cycletrol's adjustable current limit provides motor and drive train protection in the event of machine overloads or jams
  • Heavy-duty aluminum chassis or NEMA 12 enclosures

Horsepower

 1/8 - 1 hp (120 VAC)
1/8 - 3 hp (240 VAC)


Line Voltage

 120 V
240 V


Frequency

 50/60 Hz


Phase

 Single


Maximum Duty Cycle

 60 cycles/minute continuous with typical 1/8 to 1 HP motor; 30 cpm with 1/2 to 3 HP motor. Reflected load inertia does not exceed motor inertia.


Output - Armature Voltage

 0 to 90 VDC (120 VAC)
0 to 180 VDC (240 VAC)


Configurations

 Chassis, NEMA 12


Speed Range (Armature Feedback)

 50:1


Speed Range (Tachometer Feedback)

 200:1


Speed Regulation (Armature Feedback)

 ± 5% of base speed


Speed Regulation (Tachometer Feedback)

 ±0.5% of set speed or 4 rpm (whichever is greater)


Speed Variation (Due to Line Voltage Fluctuation)

 <1% armature voltage change within input power range


Speed Variation (Due to Thermal Drift)

 <3% for control; motor depends on application


Ambient Temperature

 32 to 104 ºF; 0 to 40 ºC (NEMA 12)
32 to 122 ºF; 0 to 50 ºC (chassis)


Control Adjustments (Minimum Speed)

 0 to 50% of full base speed


Control Adjustments (Maximum Speed)

 50% to full base speed


Control Adjustments (Acceleration)

 Fixed at 0.2 seconds


Control Adjustments (Current Limit)

 0 to 125% control rating (up to 400% during acceleration)


Inputs (Logic Input)

 Start, Stop, Jog, Reset, Override Stop, Timer


Inputs (Analog Speed Inputs)

 5K ohm, 1 watt, potentiometer supplied with controls in an enclosure only. Isolated process signal of 0-10 VDC, 4-20 mA may be used.


LED Indicators

 Power, Run, Current Limit, Brake


Chassis Options
DescriptionCycletrol 150
Chassis Versions
120V 1Ø
Up to 1/2 HP-
Up to 1 HP176B6004
Up to 3 HP-
240V 1Ø
Up to 1/2 HP-
Up to 1 HP-
Up to 3 HP176B6005
NEMA 12 Versions
120V 1Ø
Up to 1/2 HP-
Up to 1 HP176B6000
Up to 3 HP-
240V 1Ø
Up to 1/2 HP-
Up to 1 HP176B6001
Up to 2 HP176B6002
Up to 3 HP176B6003

Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.

Shipping Times Provided In Quote

Let IMS Repair Yours:
Connect with IMS engineers who will repair your broken or damaged GRAHAM MOTORS AND CONTROLS 176B6004 MOTOR CONTROL. Contact us today for details.

Repair Time Estimates Provided In Quote
