GRUNDFOS 98992936 MULTISTAGE COOLANT PUMP
Quick Overview
Manufactured By: GRUNDFOS
Manufacturer Part Number: 98992936
IMS Product Code: 2146034
Packaging: Sold Individually
Description:

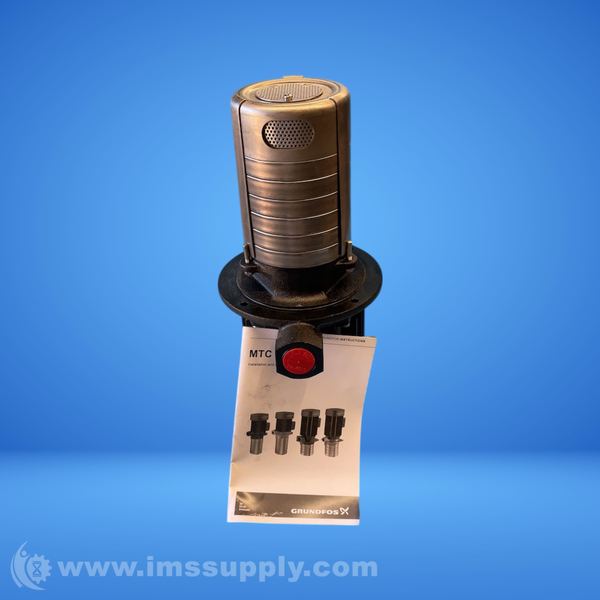

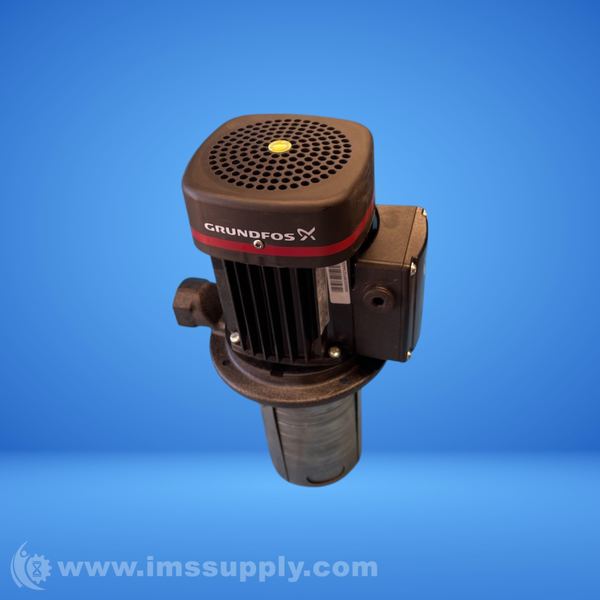

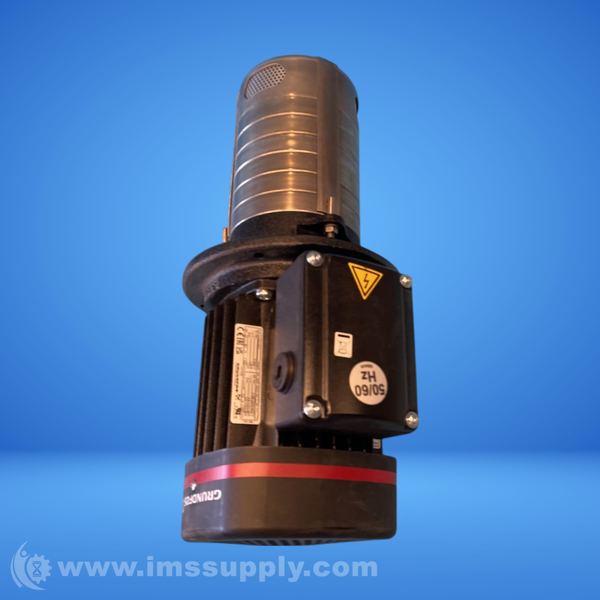

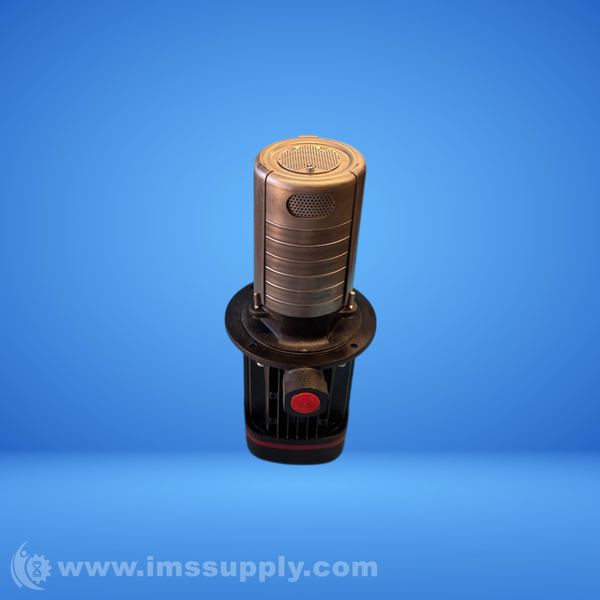

Grundfos 98992936 Multistage Coolant Pump
Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc.
Specifications
- Capacities (GPM): 13.2 GPM
- Connection Type: NPT
- Discharge (Inches): 3/4"
- Heads To (Feet): 118.1 Feet
- HP: 1
- Hz: 60
- Impeller Material: Stainless Steel
- Maximum Pressure (PSI): 145 psi
- Model Number: MTC2-6/4
- Motor Enclosure Type: TEFC PE - Totally Enclosed Fan Cooled (Premium Efficient)
- Number of Stages: 6
- Phase: 3 Ph (Three Phase)
- Seal Code: AQQV
- Shaft Seal Material: O-Ring w/Fixed Driver, SiC/SiC, FKM
- Speed (RPM): 3445 RPM (Rated)
- Voltage: 208/230/460
- Approvals: CE,UKCA,cURus/cCSAus
- Built-in motor protection: NONE
- Chambers: 6
- Code for shaft seal: AQQV
- Connect code: WB
- Connection: NPT(F)
- Curve tolerance: ISO9906:2012 3B
- Density: 62.29 lb/ft³
- Enclosure class (IEC 34-5): IP54
- Frame size: 71BB
- Frequency: 60 Hz
- Frequency converter: None
- Gross weight: 34.2 lb
- Housing: Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B
- I MAX: 4,15-3,95/1,98A
- IE Eff. Class: IE3 / NEMA Premium
- IE Efficiency class: IE3 / NEMA Premium
- Immersion depth: 7.83 in
- Impeller: Stainless steel, EN 1.4301, AISI 304
- Insulation class (IEC 85): F
- Liquid max temp: 194°F
- Liquid temperature range: 14 .. 194 °F
- Material code: A
- Maximum ambient temperature: 140 °F
- Maximum current consumption: 4,15-3,95/1,98 A
- Maximum operating pressure: 145.04 psi
- Minimum efficiency index, MEI =: 0.70
- Model: A
- Motor standard: NEMA
- Net weight: 31.5 lb
- Number of reduced-diameter impellers: 0
- P2 kW: 1.01 HP
- Pump housing: Cast iron
- Pump version: A
- Rated current: 3,25-3,35/1,68 A
- Rated flow: 13.2 US gpm
- Rated head: 118.1 ft
- Rated power - P2: 1.01 HP
- Rated speed: 3445 rpm
- Rated voltage: 3 x 208-230YY/460Y V
- Selected liquid temperature: 68 °F
- Service factor: 1.25
- Shaft seal: AQQV
- Standard: NEMA
- Starting current: 590-650 %
- Terminal box position: 6
- Type of connection: NPT(F)
- Version: A
