GRUNDFOS CR10-14B-GJ-A-V-HQQV VERTICAL CENTRIFUGAL PUMP
Quick Overview
Manufactured By: GRUNDFOS
Manufacturer Part Number: CR10-14B-GJ-A-V-HQQV
IMS Product Code: 2123002
Packaging: Sold Individually
Description:

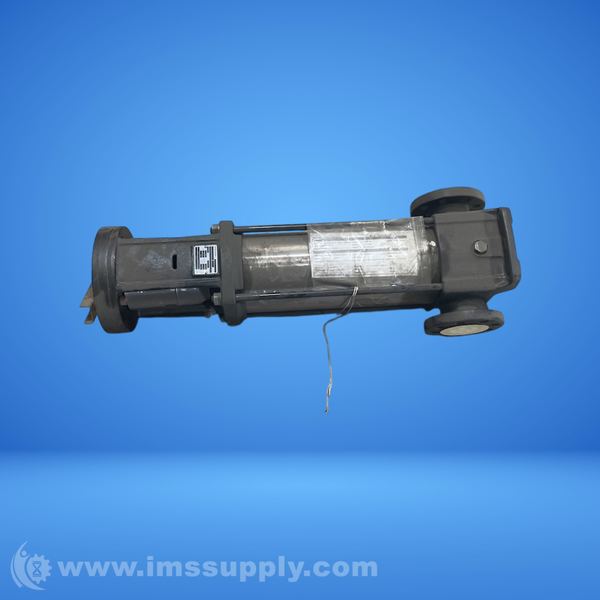

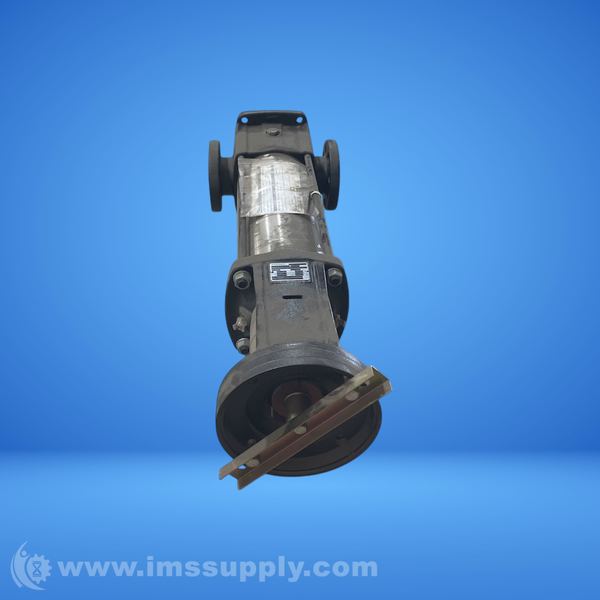

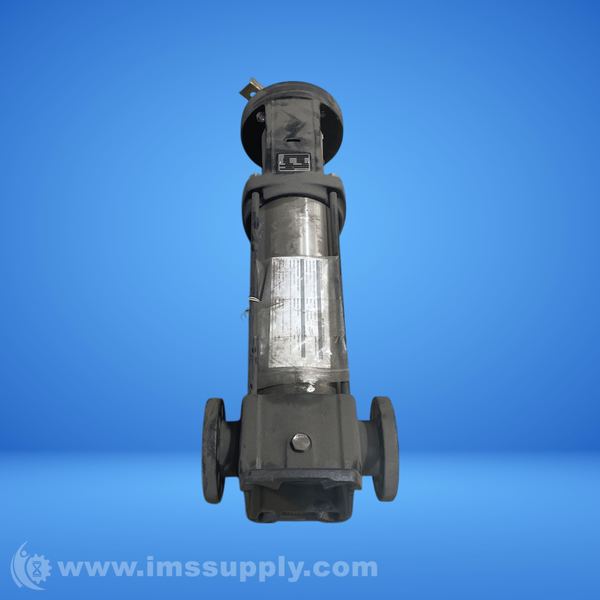

Grundfos CR10-14B-GJ-A-V-HQQV Vertical Centrifugal Pump
Vertical, multistage centrifugal pump with inlet and outlet ports on the same level (inline). Includes motor.
Specifications
- Stages: 14
- Pump orientation: Vertical
- Shaft seal arrangement: Single
- Primary shaft seal: HQQV
- Impeller: Stainless steel
- Base: Cast iron
- Connection type: ANSI / JIS
- Size of inlet connection: DN 50
- Size of outlet connection: DN 50
- Pressure rating for connection: PN 25
- Flange rating inlet: 300 lb
- Pumped liquid: Water
- Motor standard: NEMA
- Main frequency: 60 Hz
- Rated power - P2: 15 HP
- Rated voltage: 3 x 230/460 V
- Enclosure class (IEC 34-5): IP55
- Insulation class (IEC 85): F
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
