GRUNDFOS CR3-7 VERTICAL MULTISTAGE CENTRIFUGAL PUMP
Quick Overview
Manufactured By: GRUNDFOS

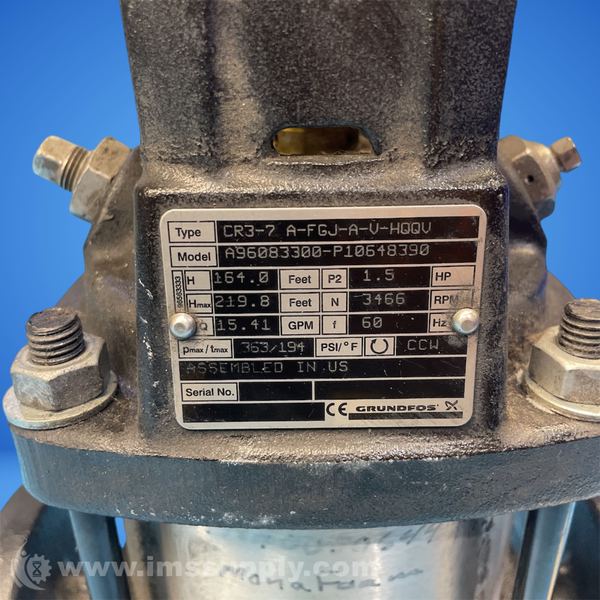

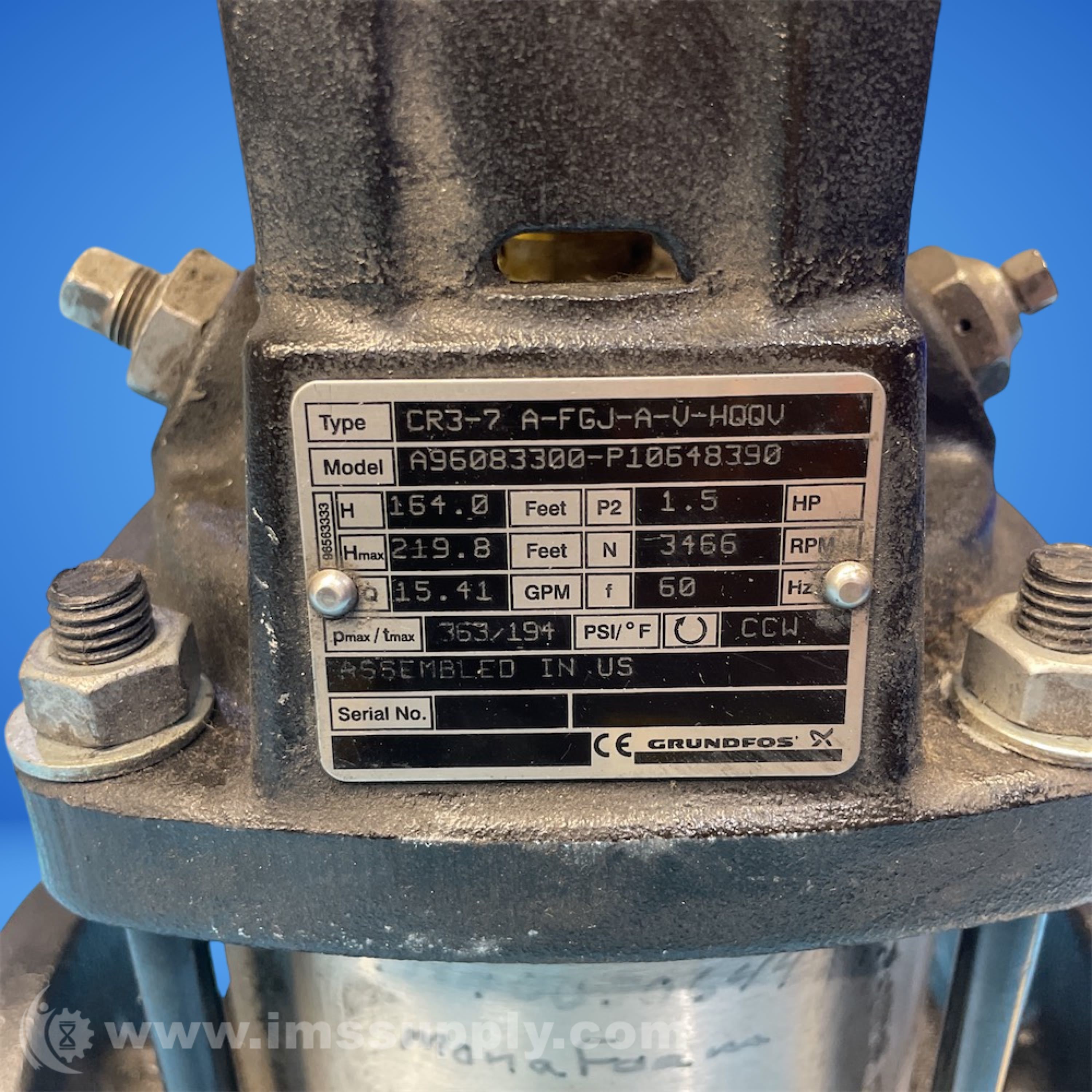

Manufacturer Part Number: CR3-7-A-FGJ-A-V-HQQV
IMS Product Code: 2132039
Packaging: Sold Individually
Description:

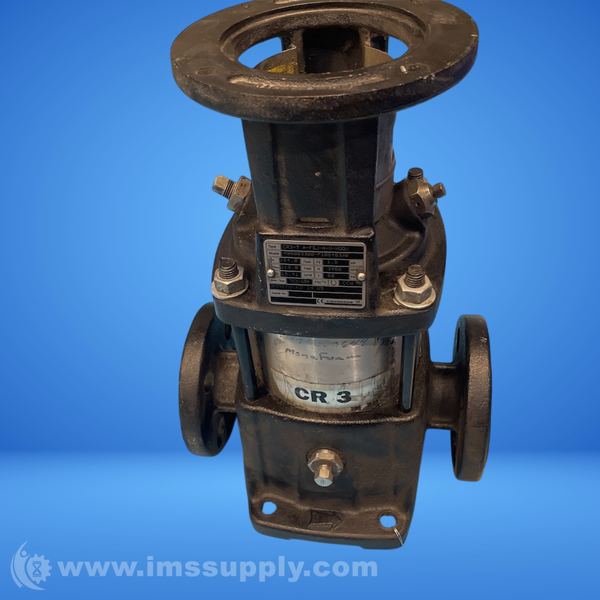

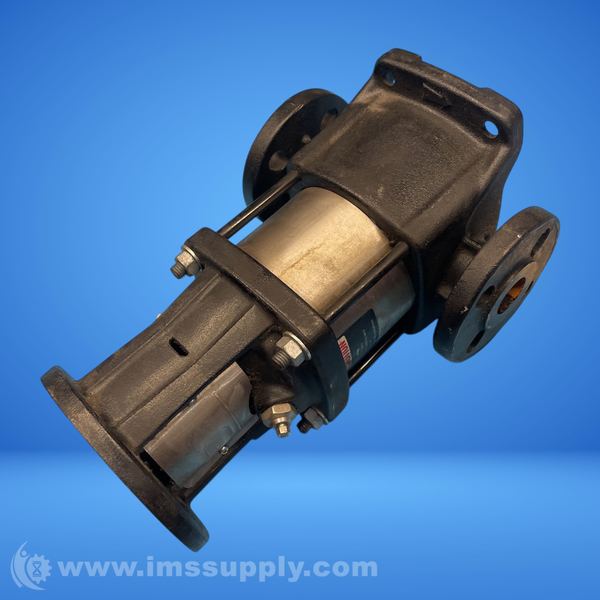

Grundfos CR3-7 Vertical Multistage Centrifugal Pump
Vertical, multistage centrifugal pump with inlet and outlet ports on the same level (inline). Includes motor.
Specifications
- Rated Flow: 15.4 US gpm
- Rated Head: 164 ft
- Maximum Head: 219.8 ft
- Stages: 7
- Pump Orientation: Vertical
- Shaft Seal Arrangement: Single
- Primary Shaft Seal: HQQV
- Base Material: Cast Iron
- Impeller Material: Stainless Steel
- Maximum Operating Pressure: 362.59 psi
- Connection Type: DIN / ANSI / JIS
- Size of Inlet/Outlet Connection: 1 1/4 inch
- Pumped Liquid: Water
- Liquid Temperature Range: -4 .. 194 °F
- Motor Standard: NEMA
- Motor Type: WEG
- Rated Power - P2: 1.5 HP
- Main Frequency: 60 Hz
- Rated Voltage: 3 x 230/460 V
- Rated Speed: 3520 rpm
- Motor Efficiency: 84%
