GTR G3LB-22-15-T040 INDUCTION MOTOR
Quick Overview
Manufactured By: GTR
Manufacturer Part Number: G3LB-22-15-T040
IMS Product Code: 2178532
Packaging: Sold Individually
Description:

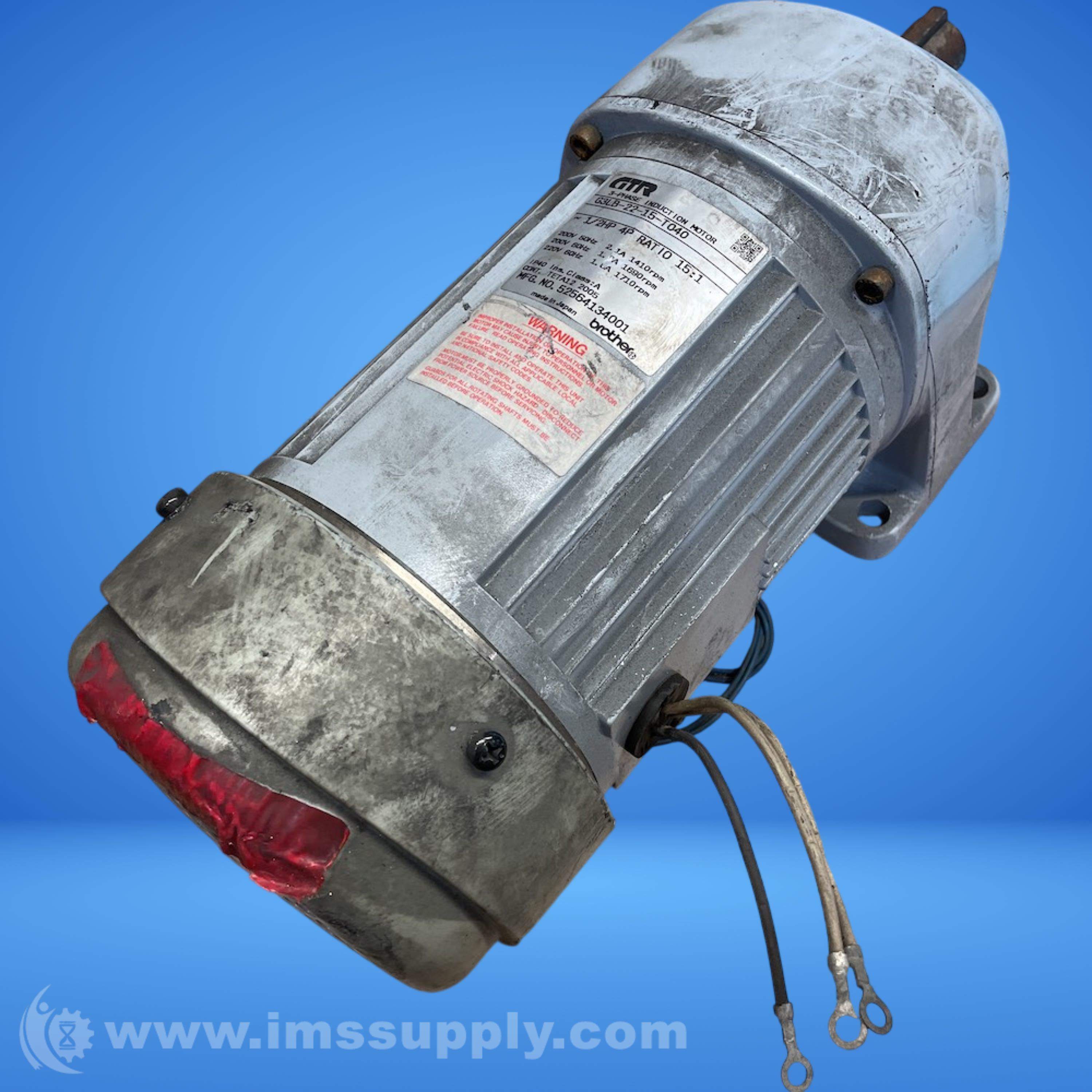

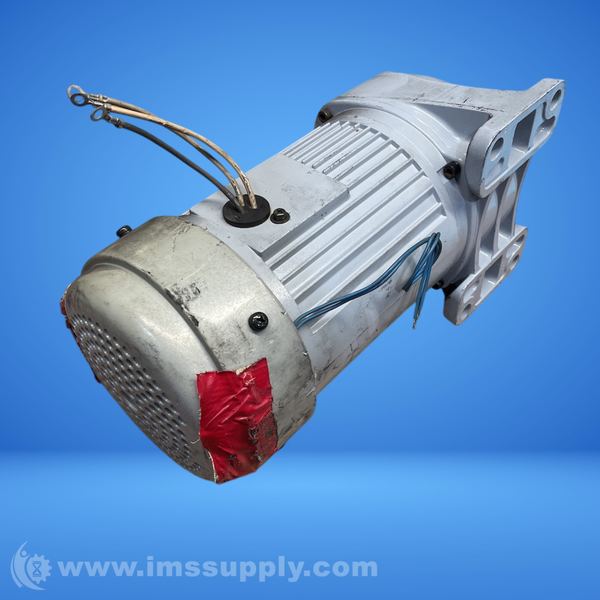

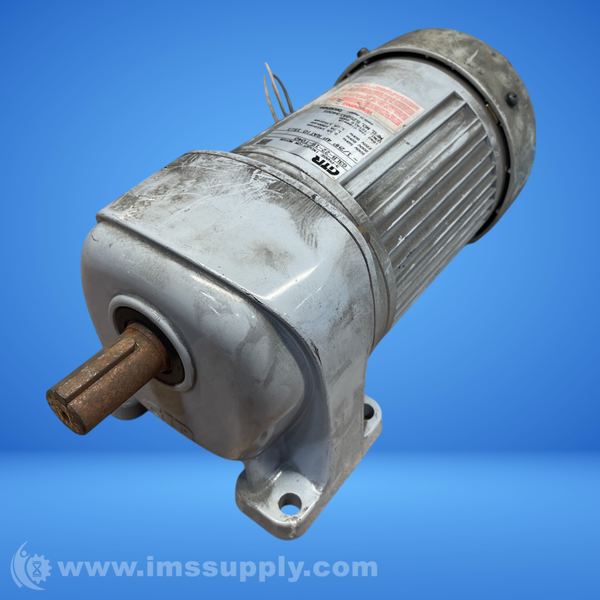

GTR G3LB-22-15-T040 Induction Motor
Three-phase induction motor with a reduction gear
Specifications

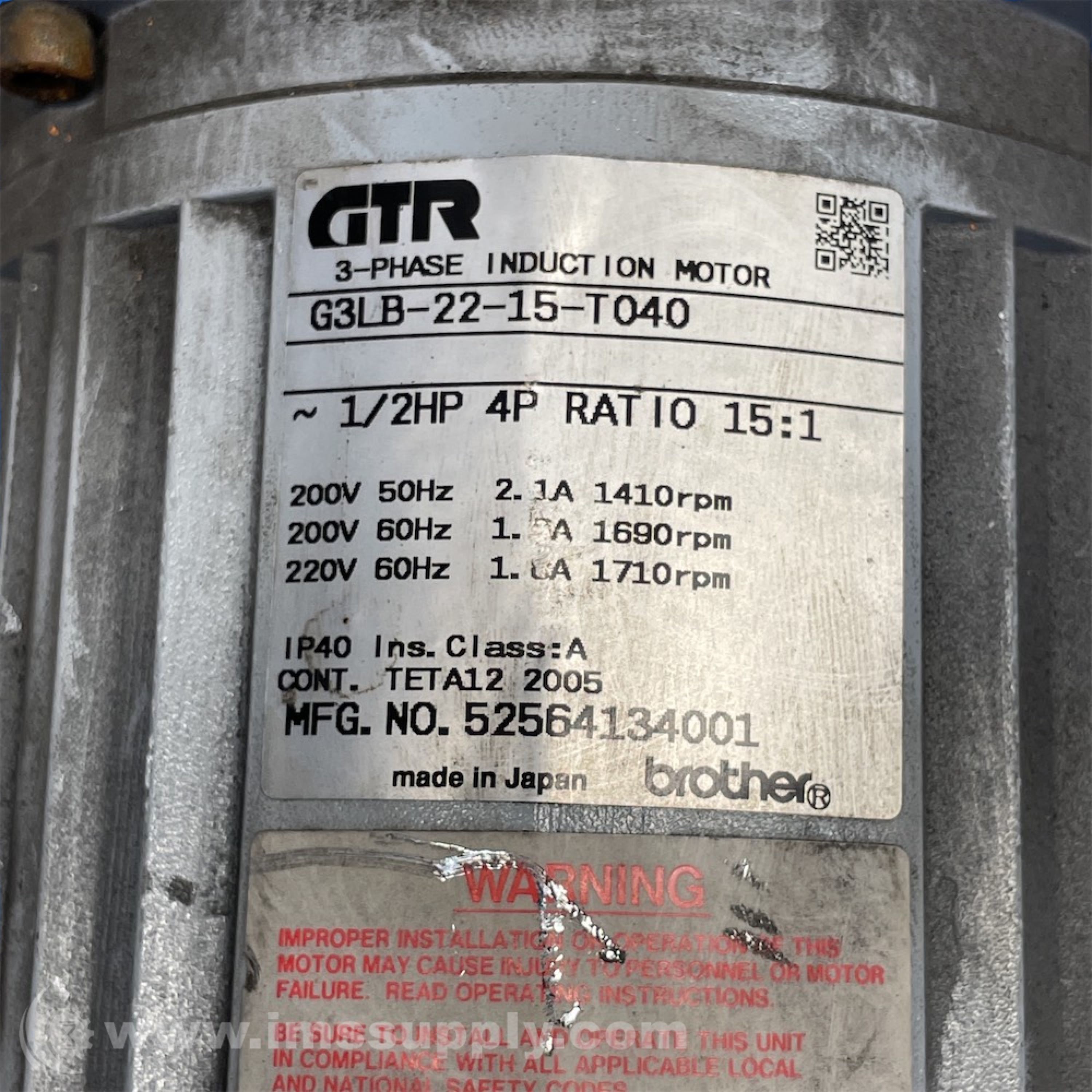

- Motor Capacity: 0.4kW(1/2HP)
- Phase Number: Three-phase
- Voltage Frequency Rated Current Rated Rotation Speed: 200V / 50Hz / 2.1A / 1410r/min, 200V / 60Hz / 1.8A / 1690r/min, 220V / 60Hz / 1.8A / 1710r/min
- Protection Structure: IP40
- Reduction Ratio: 1/15 (49/748)
- Output Axis Rotation Speed: 100r/min / 50Hz, 120r/min / 60Hz
- Output Axis Allowable Torque: 36 N�m / 50Hz, 30 N�m / 60Hz
- Brake Type: Non-excitation actuated type (spring closed)
- Brake Voltage DC: 90V
- Mass: 11 kg
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 3 minutes.
