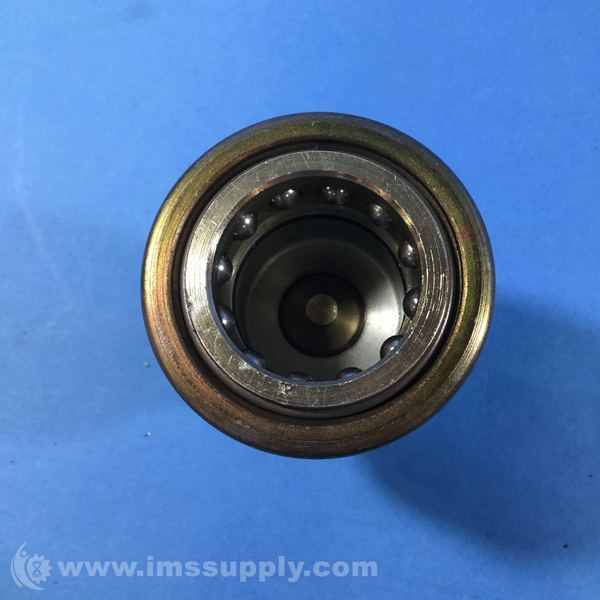

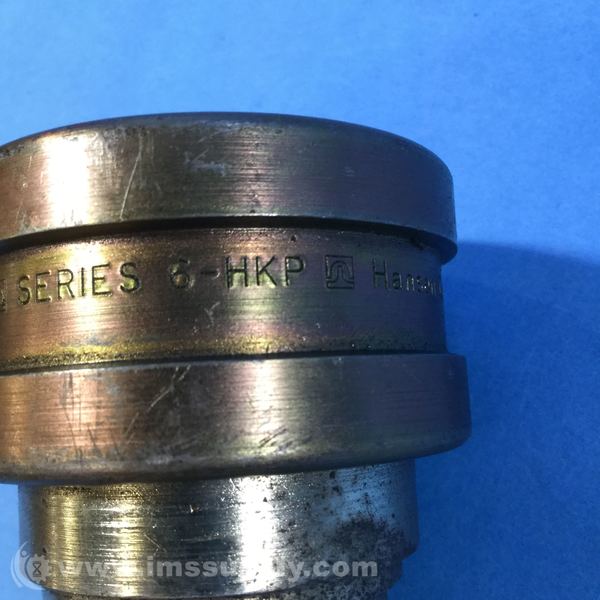

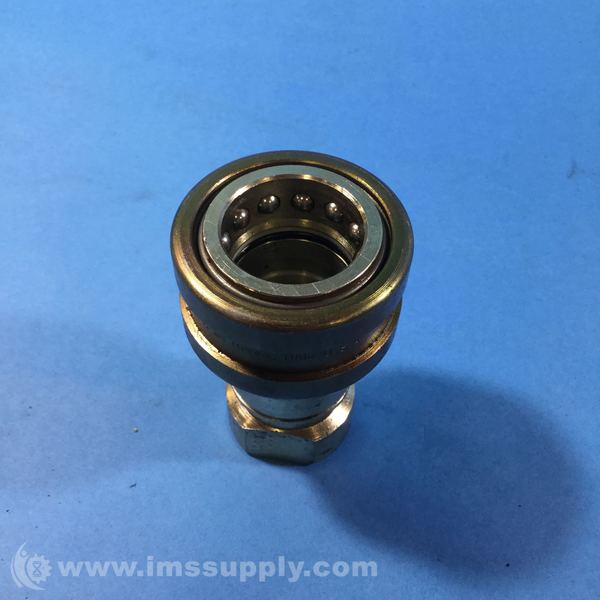

HANSEN 6-HKP HYDRAULIC COUPLINGS, SERIES HK
Quick Overview
Manufactured By: HANSEN
Manufacturer Part Number: 6-HKP
IMS Product Code: 1800716
Packaging: Sold Individually
Description:
Hansen 6-HKP Hydraulic Couplings, Series HK
Specifications:
- Body Size: 3/4 in / 17.0 mm
- Temperature Range: -40 to 250 ºF / -40 to 121 ºC
- Interchangeability: ISO 7241-1 Series B
- Rated Pressure: Brass: 2,000 psi / 138 bar
- Rated Pressure: Steel: 4,000 psi / 275 bar
- Rated Pressure: Stainless Steel: 3,500 psi / 242 bar
- Materials: Brass, zinc-plated steel, stainless steel or polypropylene (1" only) construction, Stainless steel spring, balls and retaining ring, Buna-N (Nitrile) seal
- PTFE back-up rings in steel and stainless steel sockets
- Applications & Markets: Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement / Rescue, Chemical, Oil & Gas, Consumer Products, HVAC, Food & Beverage, Trucks, Aerospace, Medical
