HARTING 09-15-000-6124 CRIMP CONTACT
Quick Overview
Manufactured By: HARTING
Manufacturer Part Number: 09-15-000-6124
IMS Product Code: 2101393

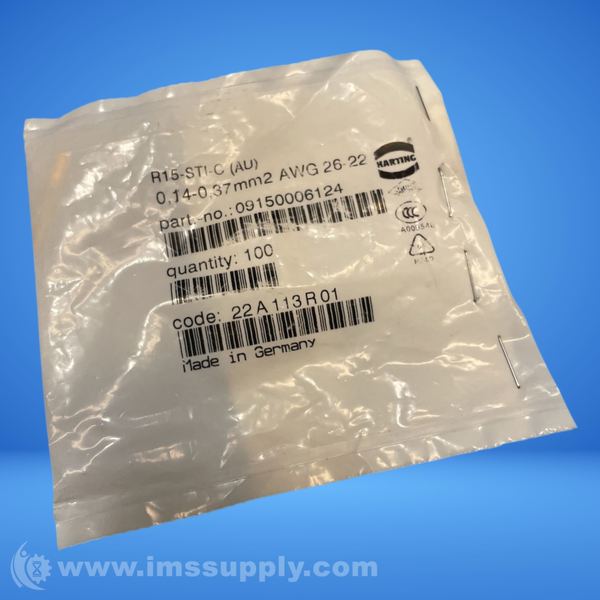

Packaging: Bag of 100
Description:

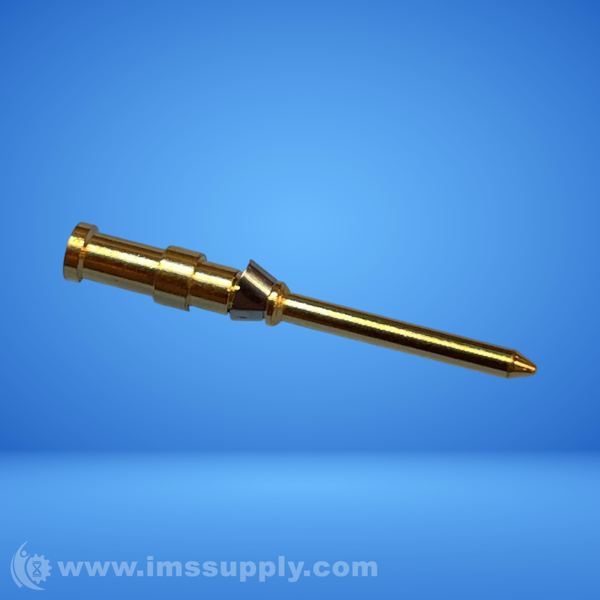

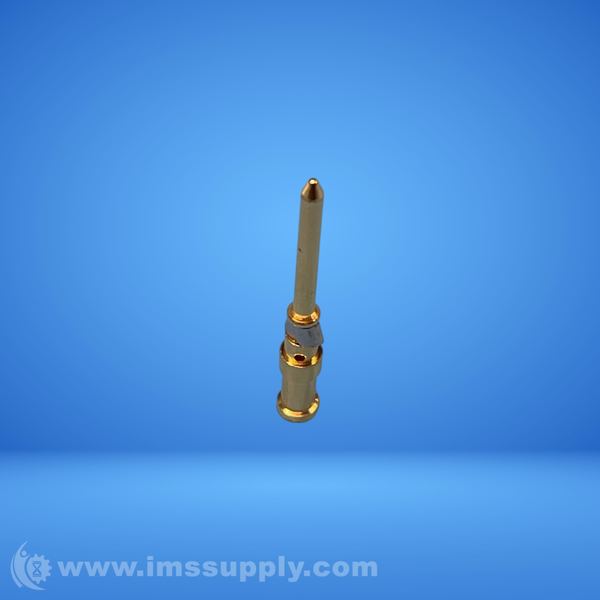

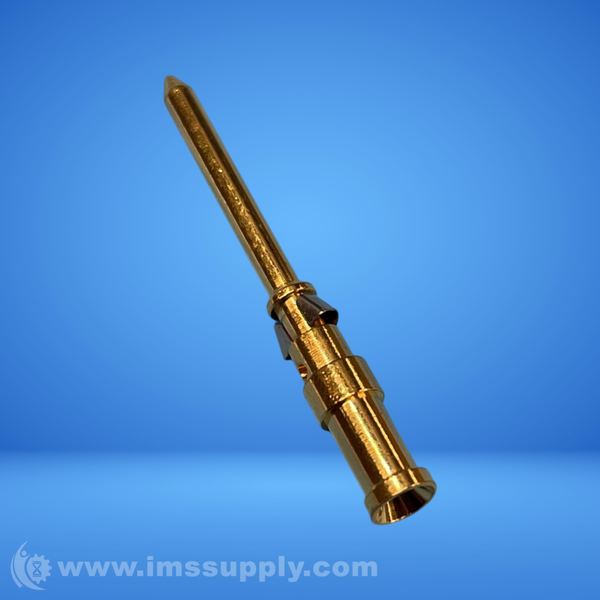

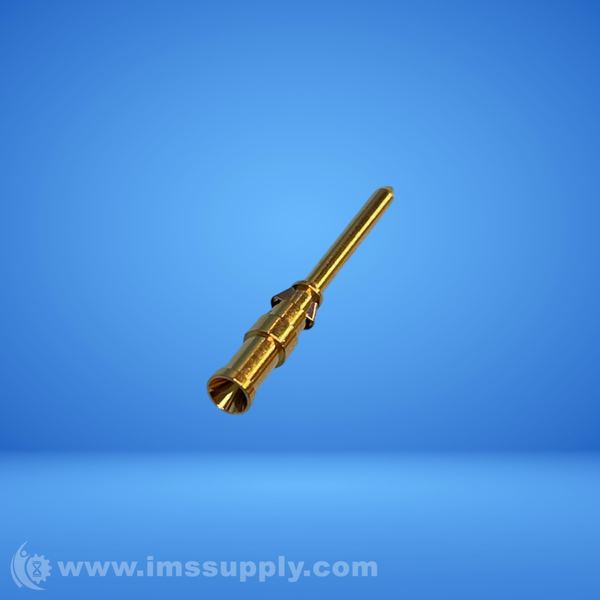

Harting 09-15-000-6124 Crimp Contact
Male crimp contact for Han D series connectors, copper alloy with gold plated finish, 0.14-0.37mm˛ wire cross-section, 10A rated current
Specifications
- Series: Han D
- Type of contact: Crimp contact
- Gender: Male
- Conductor cross-section: 0.14 ... 0.37 mm˛
- Conductor cross-section [AWG]: AWG 26 ... AWG 22
- Rated current: 10 A
- Contact resistance: 3 mO
- Stripping length: 8 mm
- Material (contacts): Copper alloy
- Surface (contacts): Gold plated
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- Net weight: 0.4 g
- Country of origin: Germany
New - Open Box (Special):
1 part remaining.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 23 minutes.
New - Missing Box (Special):
98 parts remaining.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 23 minutes.
