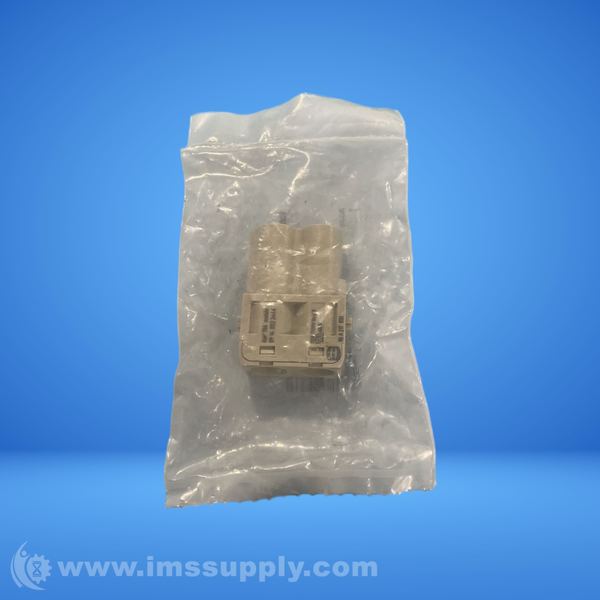

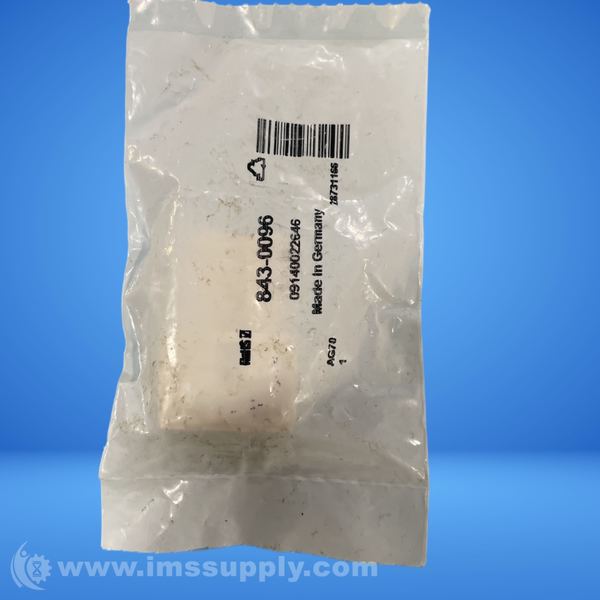

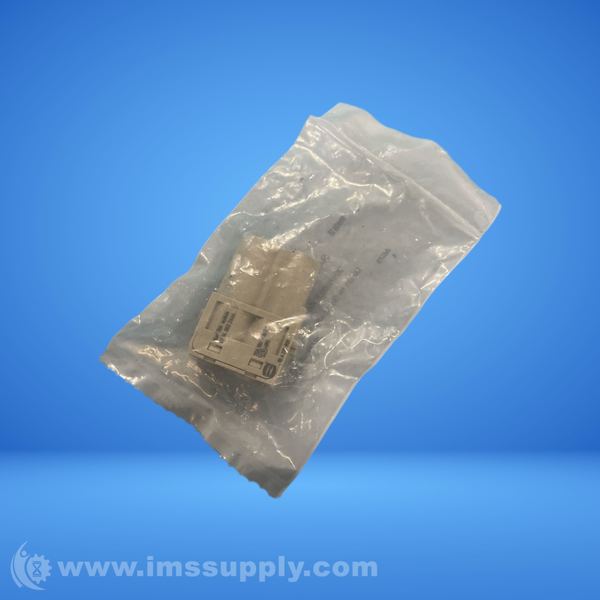

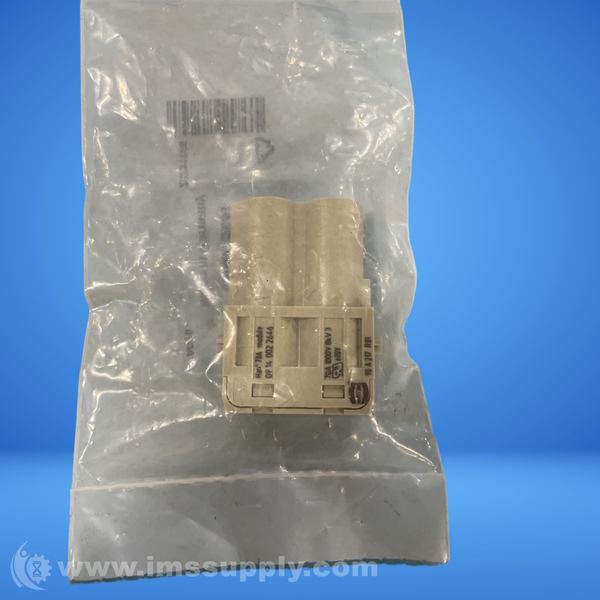

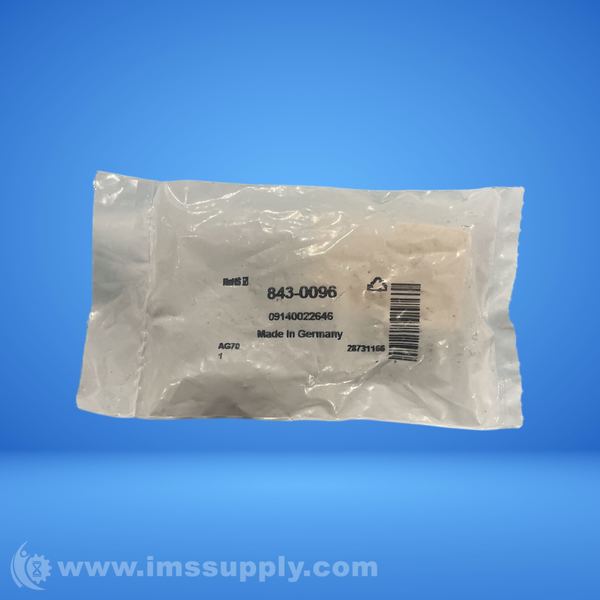

HARTING 09140022646 HAN 70A AXIAL MODULE
Quick Overview
Manufactured By: HARTING
Manufacturer Part Number: 09140022646
IMS Product Code: 2132635
Packaging: Sold Individually
Description:
Harting 09140022646 Han 70A Axial Module
Han 70A axial module with 2 male contacts for 6-16 mm² conductors, rated for 70A and 1000V, part of the Han-Modular series.
Specifications
- Series: Han-Modular
- Type: Han 70A axial module
- Gender: Male
- Number of Contacts: 2
- Conductor Cross-Section: 6 ... 16 mm²
- Rated Current: 70 A
- Rated Voltage: 1000 V
- Contact Material: Copper alloy
- Contact Surface: Silver plated
- Material (insert): Polycarbonate (PC)
- Colour (insert): RAL 7032 (pebble grey)
- Tightening Torque: 2 Nm @ 6 mm², 3 Nm @ 10 mm², 4 Nm @ 14 mm², 4 Nm @ 16 mm²
- Limiting Temperature: -40 ... +125 °C
- Mating Cycles: = 500
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 11 hours and 30 minutes.
