HARTING 09 14 006 2733 HAN E QUICK-LOCK MODULE
Quick Overview
Manufactured By: HARTING
Manufacturer Part Number: 09140062733
IMS Product Code: 2132614
Packaging: Sold Individually
Description:

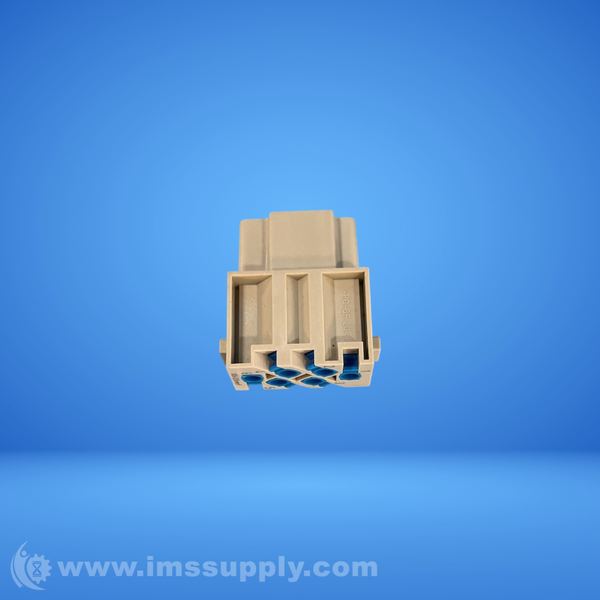

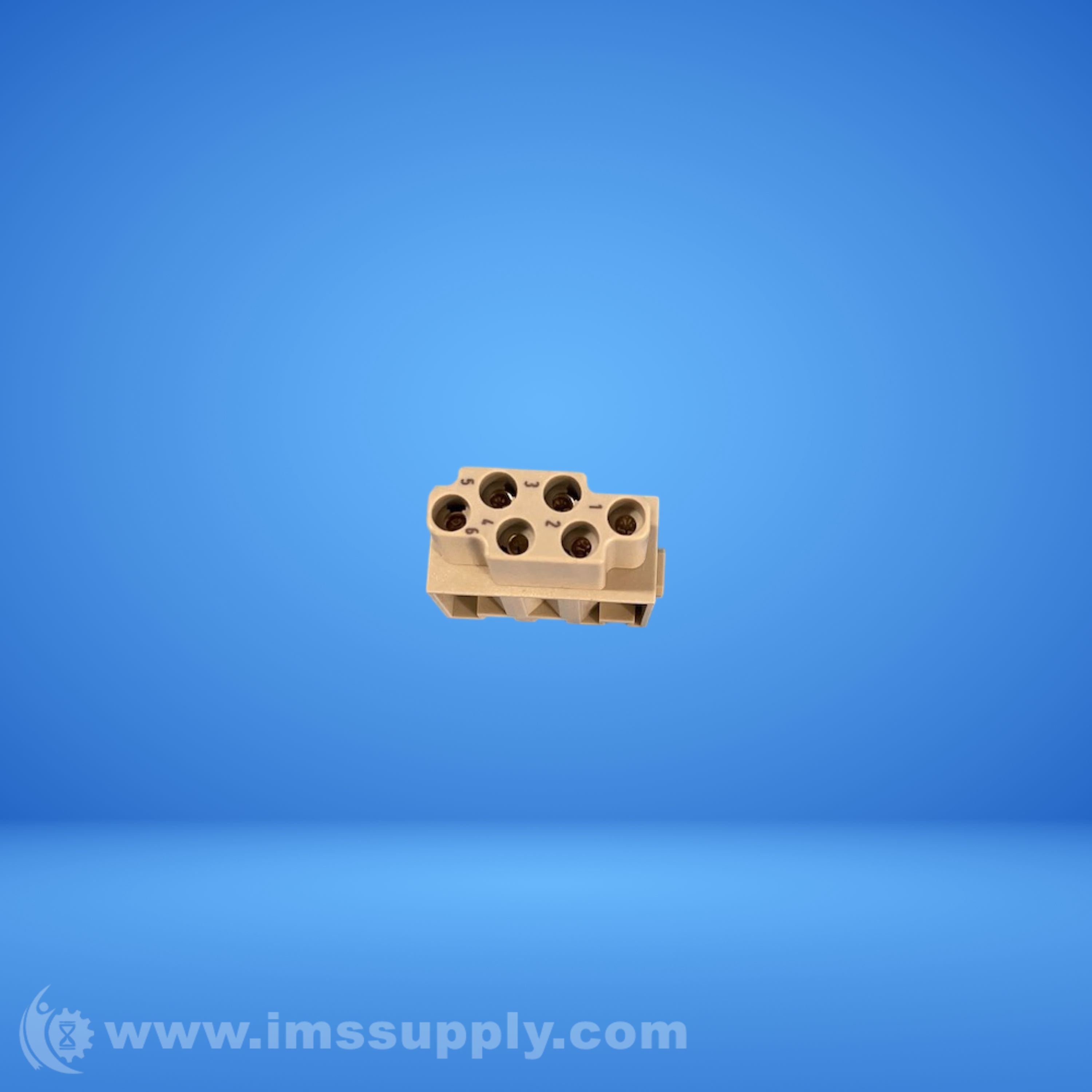

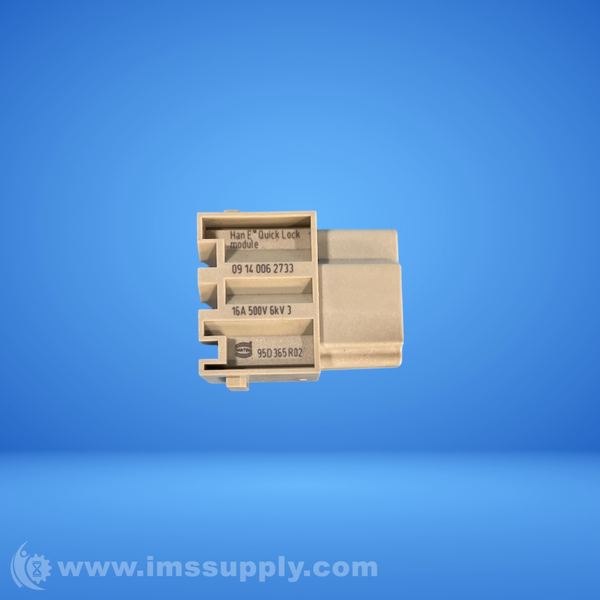

Harting 09 14 006 2733 Han E Quick-Lock Module
Han E Quick-Lock module, female, 6 contacts, Han-Modular series
Specifications
- Series: Han-Modular
- Type of module: Han E module
- Size of the module: Single module
- Termination method: Han-Quick Lock termination
- Gender: Female
- Number of contacts: 6
- Conductor cross-section: 0.5 ... 2.5 mm
- Wire outer diameter: =3.6 mm
- Rated current: 16 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- Pollution degree: 3
- Rated voltage acc. to UL: 600 V
- Insulation resistance: >10^10 Ohm
- Contact resistance: = 1 mOhm
- Limiting temperature: -40 ... +125 degrees C
- Mating cycles: = 500
- Material (insert): Polycarbonate (PC)
- Colour (insert): RAL 7032 (pebble grey)
- Material (contacts): Copper alloy
- Surface (contacts): Silver plated
- Material flammability class acc. to UL 94: V-0
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
