HARTING 09140083101 HAN EE MODULE
Quick Overview
Manufactured By: HARTING
Manufacturer Part Number: 09140083101
IMS Product Code: 2147192
Packaging: Sold Individually
Description:

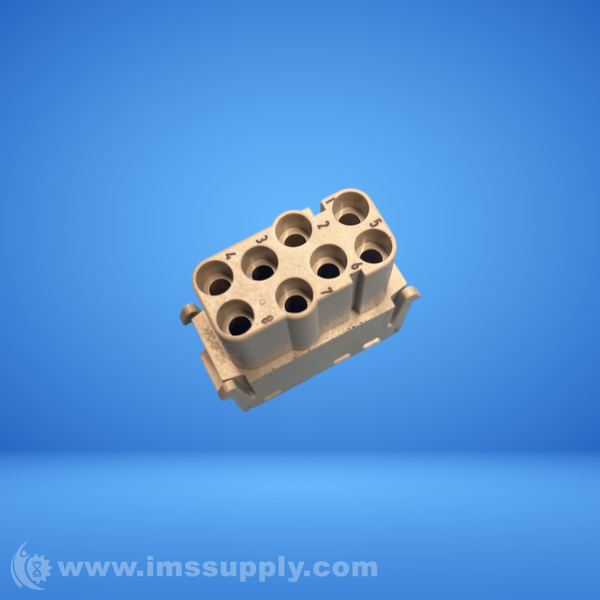

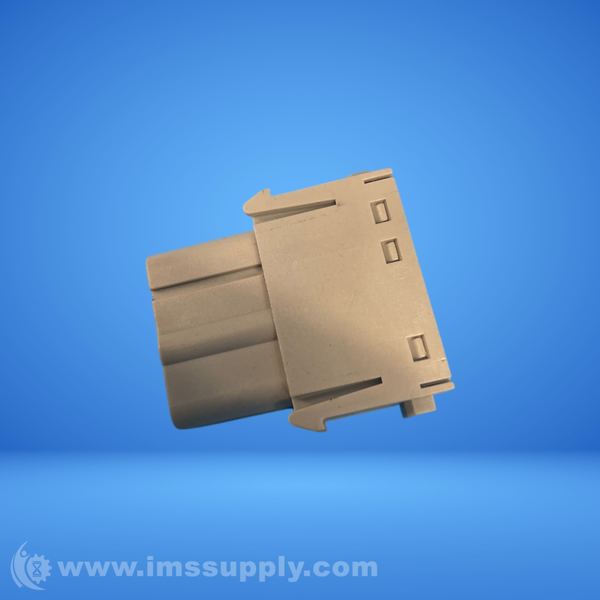

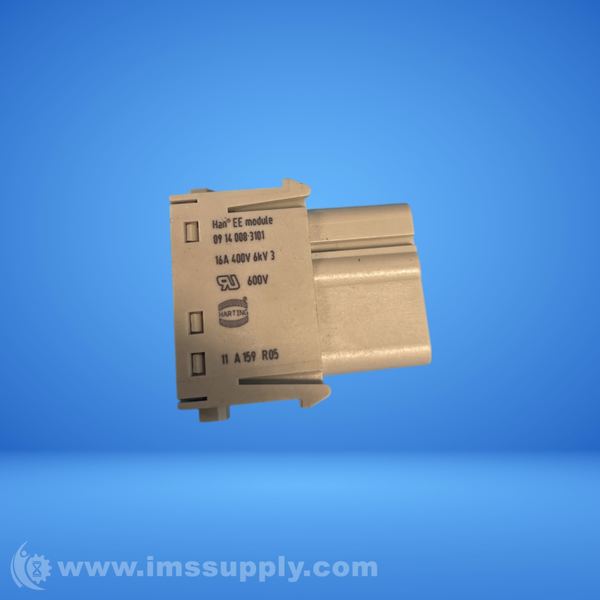

Harting 09140083101 Han EE Module
Han EE module with 8 contacts, crimp termination, female gender, rated for 16A and 400V. Constructed from polycarbonate (PC) in RAL 7032 pebble grey finish.
Specifications
- Series: Han-Modular
- Type of module: Han EE module
- Size of the module: Single module
- Termination method: Crimp termination
- Gender: Female
- Number of contacts: 8
- Conductor cross-section: 0.14 ... 4 mm
- Wire outer diameter: 4.8 mm
- Rated current: 16 A
- Rated voltage: 400 V
- Rated impulse voltage: 6 kV
- Pollution degree: 3
- Rated voltage acc. to UL: 600 V
- Limiting temperature: -40 ... +125 degrees C
- Mating cycles: 10,000
- Material (insert): Polycarbonate (PC)
- Colour (insert): RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94: V-0

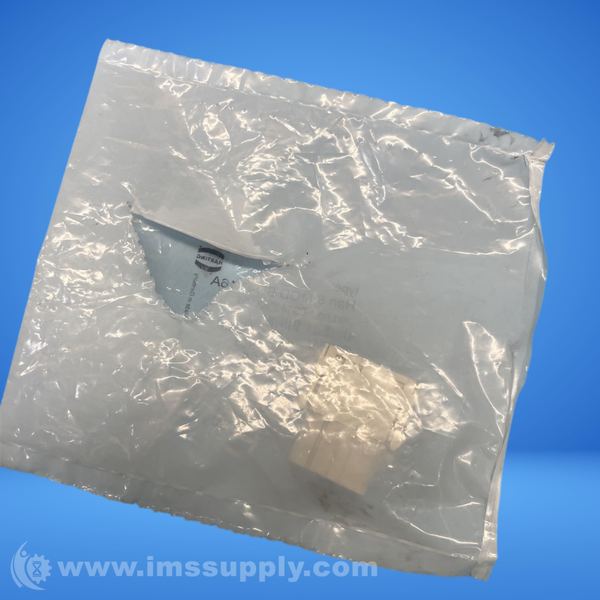

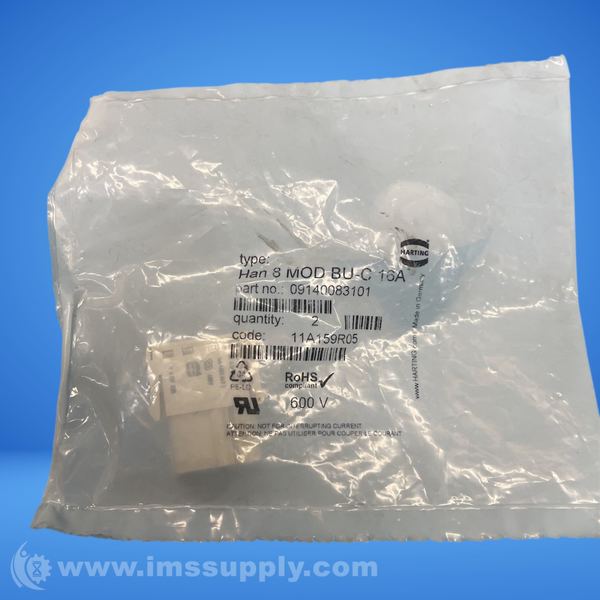

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
