HARTING 09160423001 MALE CONNECTOR INSERT
Quick Overview
Manufactured By: HARTING
Manufacturer Part Number: 09160423001
IMS Product Code: 1762753
Packaging: Sold Individually
Description:

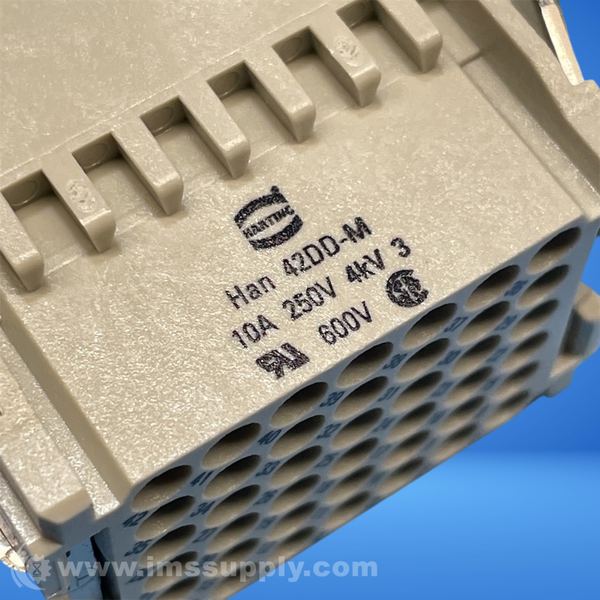

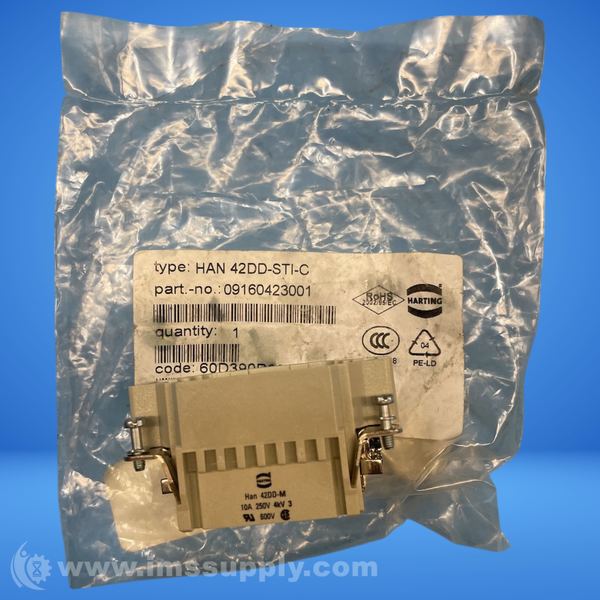

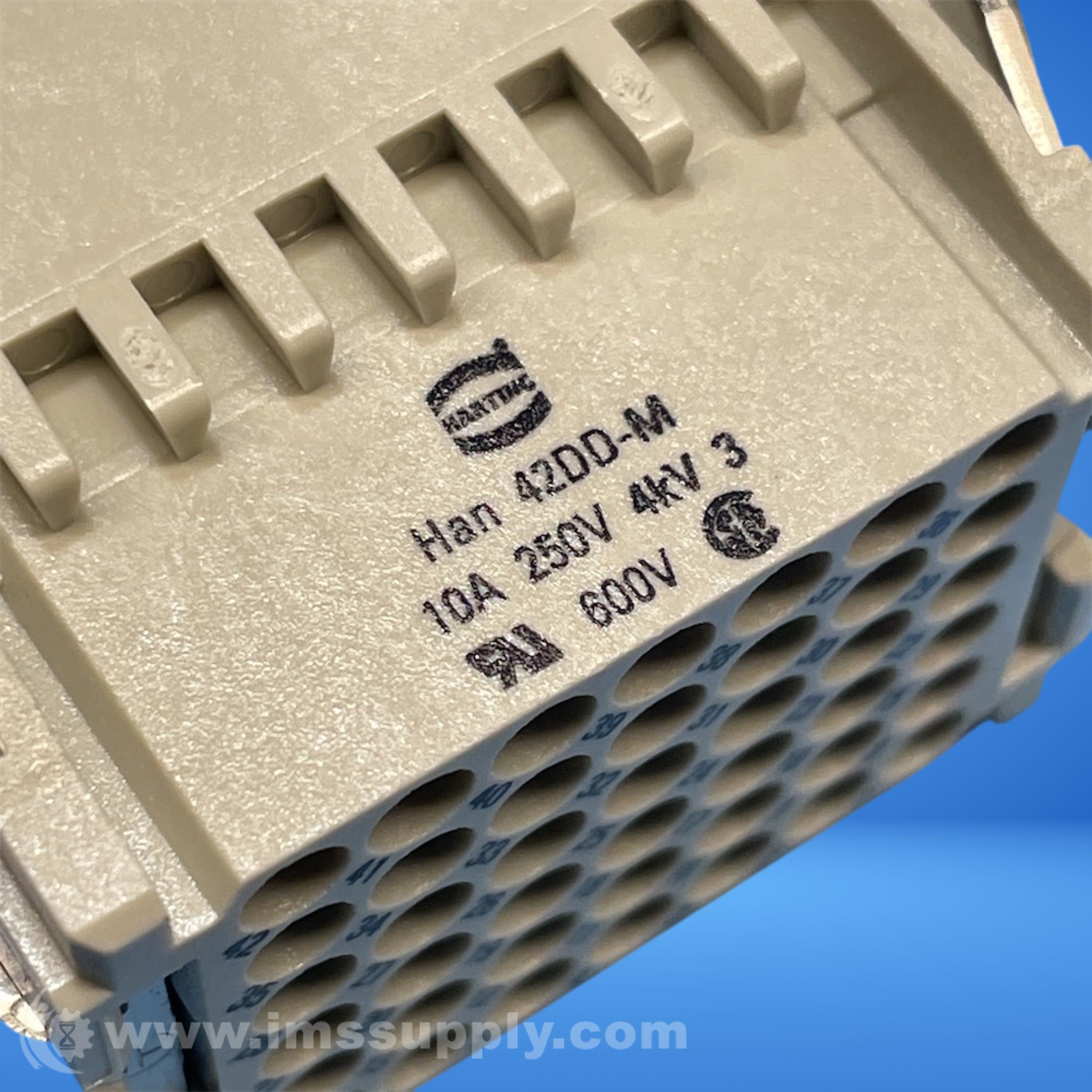

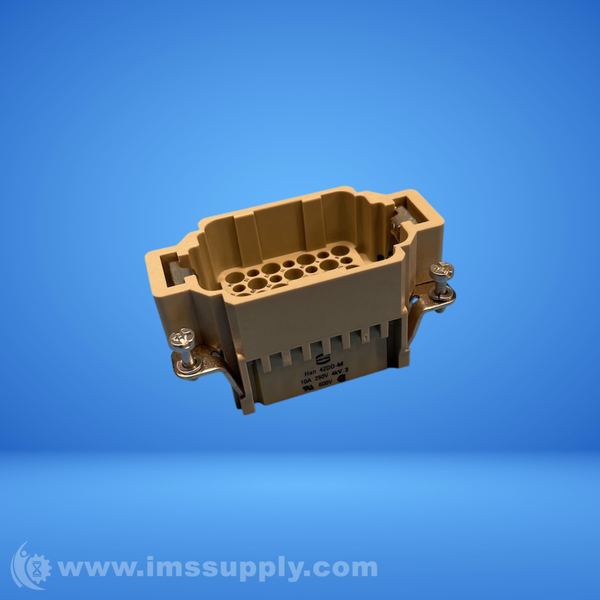

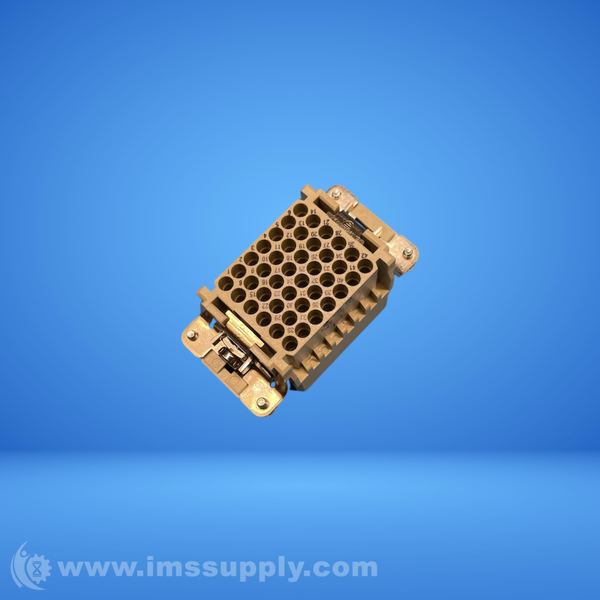

Harting 09160423001 Male Connector Insert
42-pole male connector insert with crimp termination and PE contact
Specifications
- Termination method: Crimp termination
- Gender: Male
- Size: 10 B
- Number of contacts: 42
- PE contact: Yes
- Conductor cross-section: 0.14 ... 2.5 mm²
- Rated current: 10 A
- Rated voltage: 250 V
- Rated impulse voltage: 4 kV
- Pollution degree: 3
- Rated voltage acc. to UL: 600 V
- Rated voltage acc. to CSA: 600 V
- Insulation resistance: >10¹° O
- Tightening torque: 1.2 Nm
- Limiting temperature: -40 ... +125 °C
- Mating cycles: >= 500
- Colour (insert): RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94: V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII substances: Not contained
- REACH ANNEX XIV substances: Not contained
- REACH SVHC substances: Not contained
- California Proposition 65 substances: Yes
- California Proposition 65 substances: Nickel
- Fire protection on railway vehicles: EN 45545-2 (2020-08)
- Requirement set with Hazard Levels: R22 (HL 1-3), R23 (HL 1-3)
- Specifications: IEC 60664-1, IEC 61984, UL / CSA
- Approvals: DNV GL
- Net weight: 30 g
- Country of origin: Romania
- European customs tariff number: 85366990
- eCl@ss: 27440205
- ETIM: EC000438
- UNSPSC 24.0: 39121522
- Type of connector: HDC
- Connector: contact insert
- Kind of connector: male
- Current rating: 10A
- Rated voltage: 250V
- Manufacturer series: Han® DD
- Number of pins: 42
- Connector pinout layout: 42+PE
- Case: size 10B
- Electrical mounting: crimped
- Application - series/manufacturer: Han D®
- Flammability rating: UL94V-0
- Connector variant: w/o contacts
- Insulator material: polycarbonate
- Mechanical durability: 500 cycles
- Insert mounting: 57x27mm
- Operating temperature: -40...125°C
- Contact Material: Copper
- Contact Plating: Silver
- Housing Material: Polycarbonate
- Material: Polyamide
- Contact Gender: Male
- Contact Resistance: 3 mO
- Max Current Rating: 10 A
- Max Operating Temperature: 125 °C
- Min Operating Temperature: -40 °C
- Number of Poles: 42
- Number of Positions: 42
- Number of Rows: 6
- Orientation: Straight
- Termination: Crimp
- Test Current: 10 A
- Test Voltage: 2 kV
- Voltage Rating: 250 V
- Voltage Rating (AC): 250 V
- Voltage Rating (DC): 250 V
- Working Voltage: 250 V
- Depth: 33.6 mm
- Length: 64 mm
- Wire Gauge (Max): 14 AWG
- Wire Gauge (Min): 26 AWG
- Ratings: IP65
