HARTING 09200102612 HAN 10A MALE SCREW TERMINAL INSERT
Quick Overview
Manufactured By: HARTING
Manufacturer Part Number: 0920 010 2612
IMS Product Code: 1803977
Packaging: Sold Individually
Description:

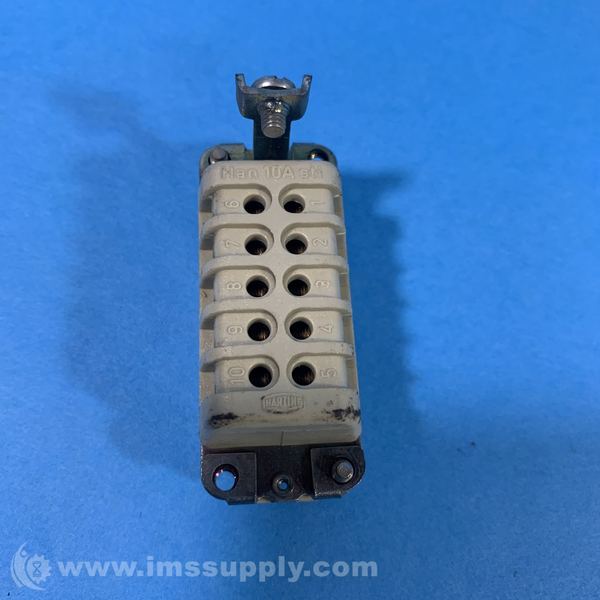

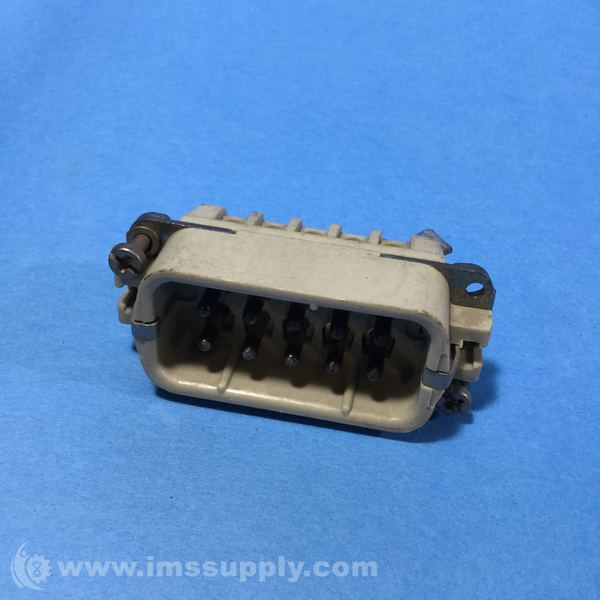

Harting 09200102612 Han 10A Male Screw Terminal Insert
Han 10A male screw terminal insert with 10 contacts and PE contact, screw termination, size 10A, rated current 16A, rated voltage 250V.
Specifications
- Series: Han A
- Version: Male
- Number of contacts: 10
- PE contact: Yes
- Termination method: Screw termination
- Rated current: 16 A
- Rated voltage: 250 V
- Conductor cross-section: 0.75 ... 2.5 mm
- Material (insert): Polycarbonate (PC)
- Material (contacts): Copper alloy
- Surface (contacts): Silver plated
- Limiting temperature: -40 ... +125 degrees C
- Tightening torque: 0.5 Nm Contact screw M3, 0.5 Nm Fixing screws M3, 0.8 Nm PE screw M3.5
- Mating cycles: >= 500
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
