HARTING 09330102701 FEMALE INSERT
Quick Overview
Manufactured By: HARTING
Manufacturer Part Number: 09330102701
IMS Product Code: 1876360
Packaging: Sold Individually
Description:

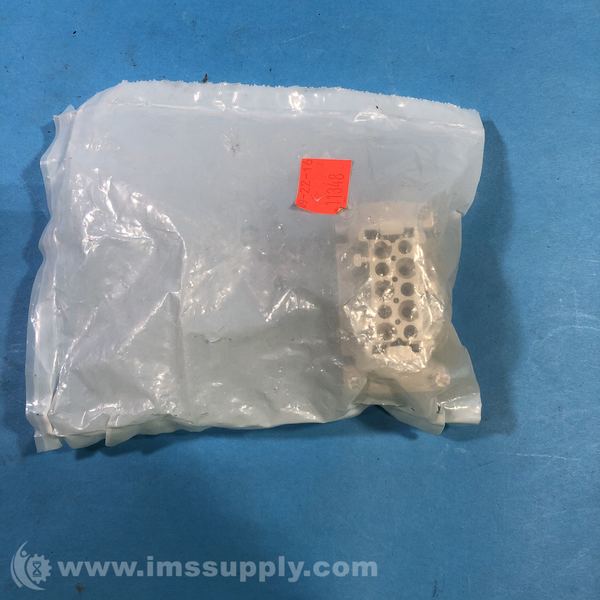

Harting 09330102701 Female Insert
Female screw terminal insert with 10 contacts for use with Harting Han E Series industrial connectors
Specifications
- Series: Han E
- Number of Positions: 10
- Termination: Screw
- Gender: Female
- Size: 10 B
- With wire protection: Yes
- PE contact: Yes
- Conductor cross-section: 0.75 ... 2.5 mm
- Conductor cross-section [AWG]: AWG 18 ... AWG 14
- Rated current: 16 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- Pollution degree: 3
- Insulation resistance: >10
- Contact resistance: 1 m
- Stripping length: 7.5 mm
- Tightening torque: 0.5 Nm Contact screw M3, 0.5 Nm Fixing screws M3, 1.2 Nm PE screw M4
- Limiting temperature: -40 ... +125 degrees C
- Mating cycles: >= 500
- Material (insert): Polycarbonate (PC)
- Colour (insert): RAL 7032 (pebble grey)
- Material (contacts): Copper alloy
- Surface (contacts): Silver plated
- Material flammability class acc. to UL 94: V-0
- RoHS: compliant with exemption
- RoHS exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 2 hours and 54 minutes.
