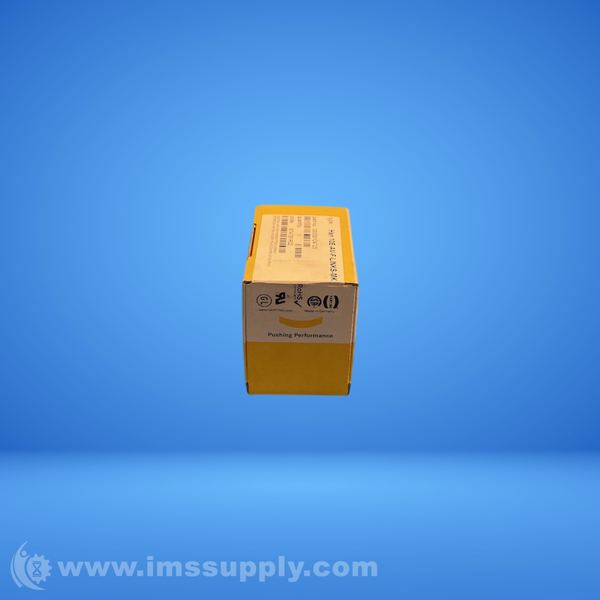

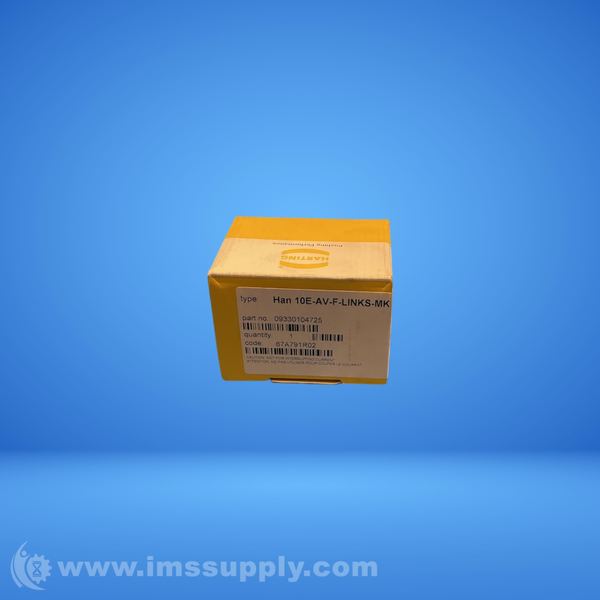

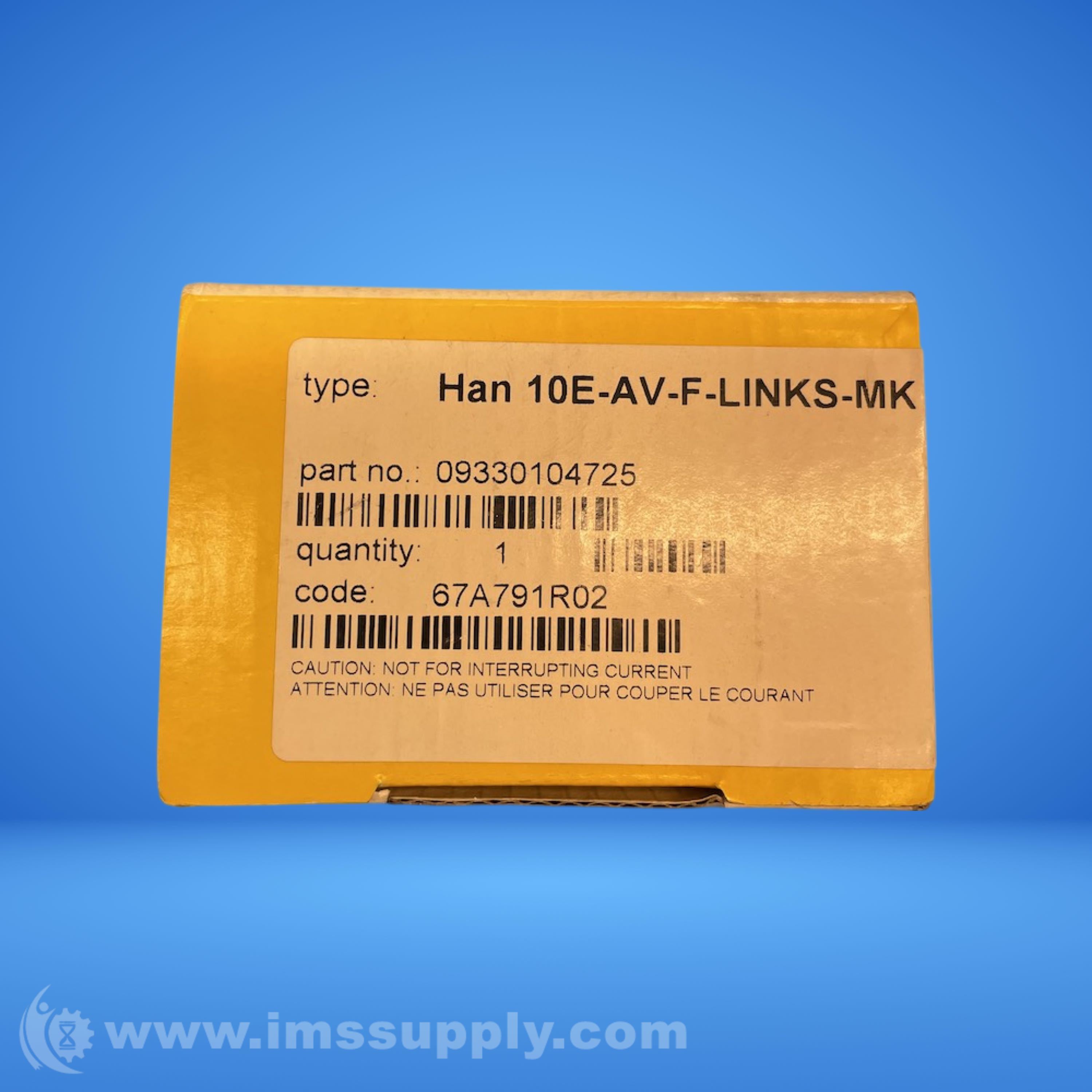

HARTING 09330104725 TERMINAL BLOCK CONNECTOR
Quick Overview
Manufactured By: HARTING
Manufacturer Part Number: 09330104725
IMS Product Code: 2148711
Packaging: Sold Individually
Description:
Harting 09330104725 Terminal Block Connector
Terminal block connector, Screw termination, Female, Polycarbonate (PC), Rated current: 16 A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.2 ... 2.5 mm², Copper alloy, Silver plated
Specifications
- Series: Han E AV
- Termination method: Screw termination
- Gender: Female
- Size: 10 B
- Number of contacts: 10
- PE contact: Yes
- Conductor cross-section: 0.2 ... 2.5 mm²
- Rated current: 16 A
- Rated voltage: 500 V
- Rated impulse voltage: 6 kV
- Pollution degree: 3
- Rated voltage acc. to UL: 600 V
- Insulation resistance: >10¹° O
- Contact resistance: = 4 mO
- Tightening torque: 0.5 Nm
- Limiting temperature: -40 ... +125 °C
- Mating cycles: = 500
- Material (insert): Polycarbonate (PC)
- Colour (insert): RAL 7032 (pebble grey)
- Material (contacts): Copper alloy
- Surface (contacts): Silver plated
- Material flammability class acc. to UL 94: V-0
