HARTING 21031111405 M12 CIRCULAR CONNECTOR
Quick Overview
Manufactured By: HARTING
Manufacturer Part Number: 21-03-111-1405
IMS Product Code: 819966
Packaging: Sold Individually
Description:

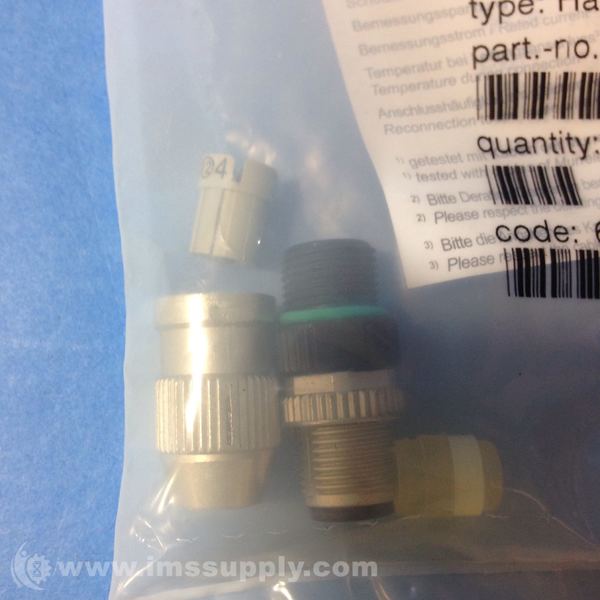

Harting 21031111405 M12 Circular Connector
M12 circular connector with 4 contacts, straight male configuration, insulation displacement termination, rated for 4A at 32V, IP65/IP67 protection, polyamide housing and brass contacts with gold plating.
Specifications
- Series: Circular connectors M12
- Number of contacts: 4
- Coding: A-coding
- Locking type: Screw locking
- Conductor cross-section: 0.14 ... 0.34 mm˛
- Wire outer diameter: = 1.6 mm
- Rated current: 4 A
- Rated voltage: 32 V
- Cable diameter: 2.9 ... 5.1 mm
- Degree of protection: IP65 / IP67
- Material (insert): Polyamide (PA)
- Material (contacts): Brass
- Surface (contacts): Au over Ni
- Material (hood/housing): Polyamide (PA)
New - Missing Box (Special):

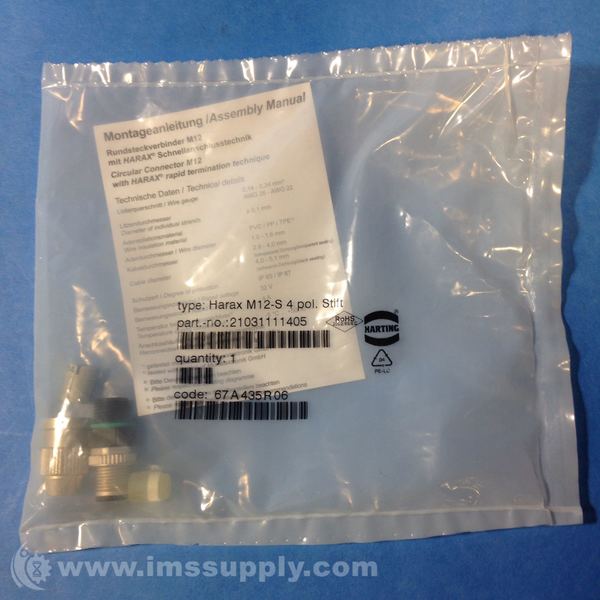

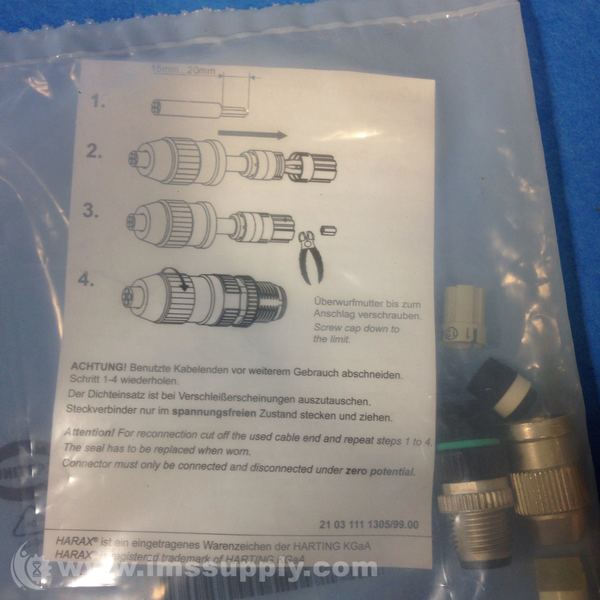

Comes with small plastic accessory and assembly manual.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 53 minutes.
