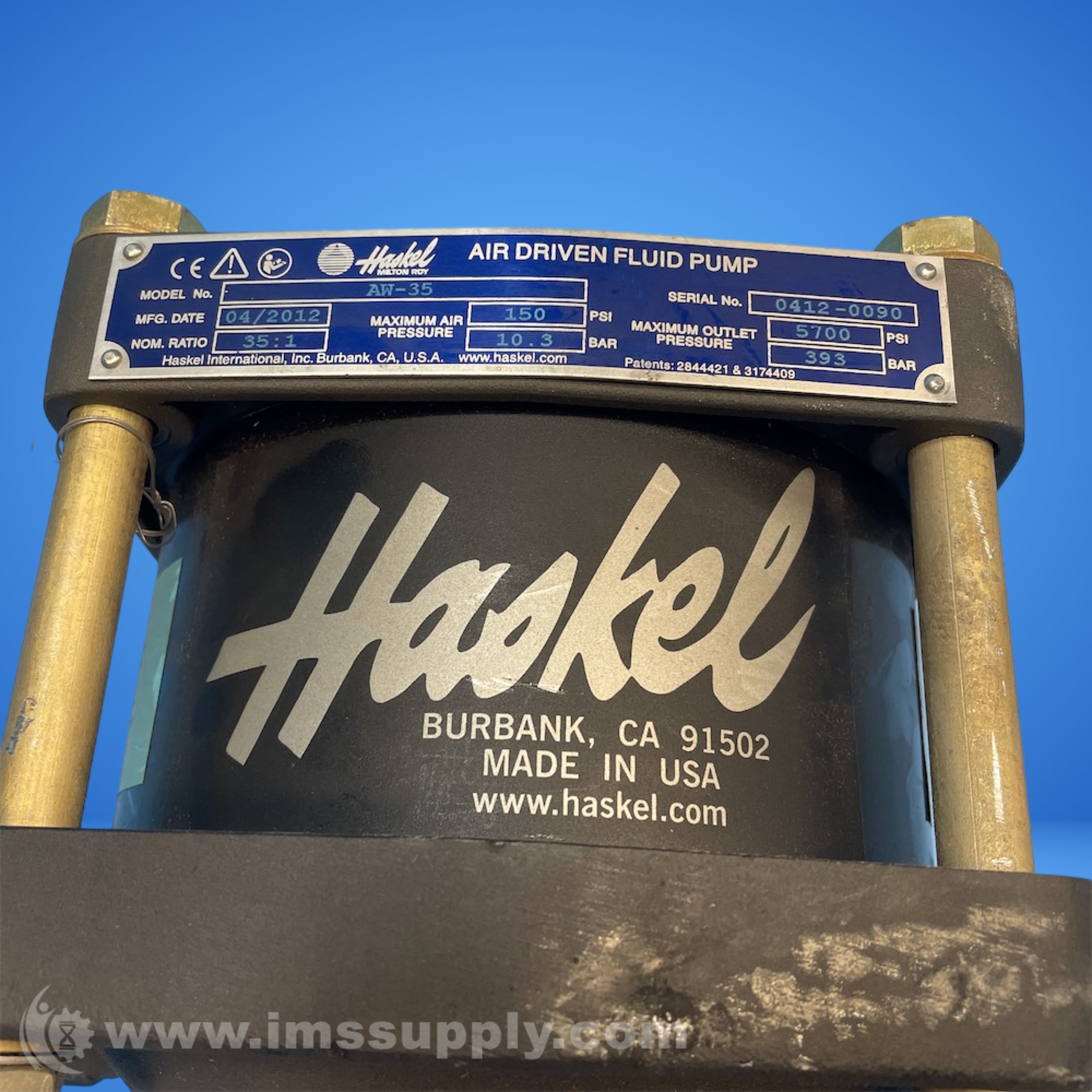

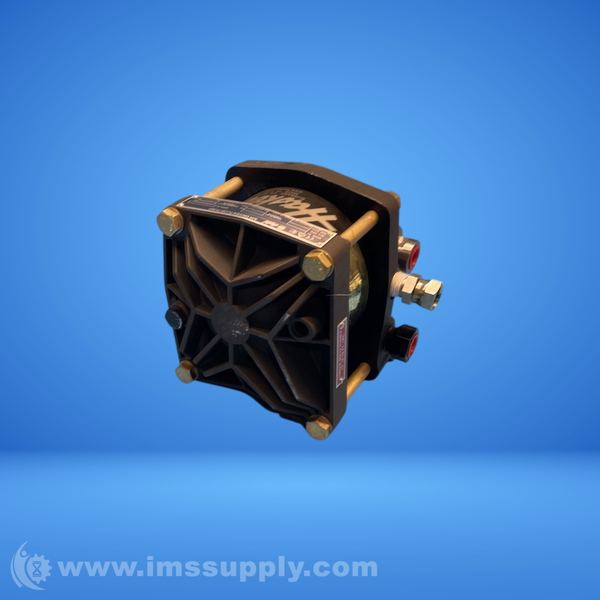

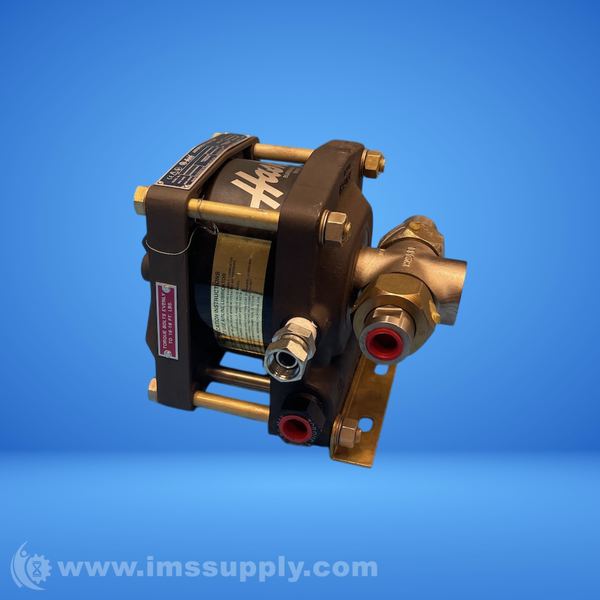

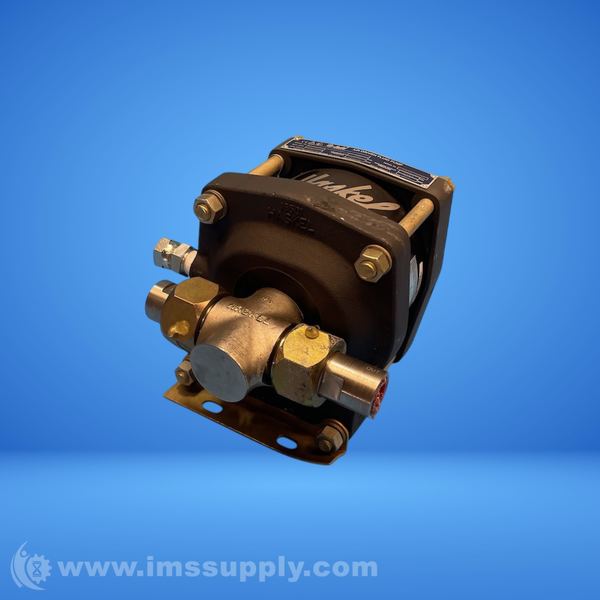

HASKEL AW-35 AIR DRIVEN LIQUID PUMP
Quick Overview
Manufactured By: HASKEL
Manufacturer Part Number: AW-35
IMS Product Code: 2139800
Packaging: Sold Individually
Description:
Haskel AW-35 Air Driven Liquid Pump
Haskel AW-35 pneumatic driven pump offers safe operation with no heat, flame or risk of spark. It is suitable for most liquids and liquefied gases, producing pressures up to 5700 PSI (393 bar). The pump features a single air head, 35:1 nominal pressure ratio, and is made with nickel-plated steel, stainless steel, and non-metallic materials.
Specifications
- Nominal Ratio: 35:1
- Actual Ratio: 40:1
- Max Air Pressure: 150 PSIG
- Max Outlet Pressure (Continuous): 5700 PSIG
- Max Outlet Pressure (Intermittent): 5700 PSIG
- Piston Displacement Per Cycle: 1.16 in3
- Max Flow: 348 in3/min
- Power: 1.5HP
- Air Head: single
- Max Cycles: 80/min
- Air Inlet Connection: 1/2" FNPT
- Liquid Inlet Connection: 1/2" FNPT
- Liquid Outlet Connection: 1/2" FNPT
- Materials of Construction: Pump section: Nickel-plated steel & SS, Plunger: 440C SS, Non-metallics: Urethane, Buna-N, PTFE
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
