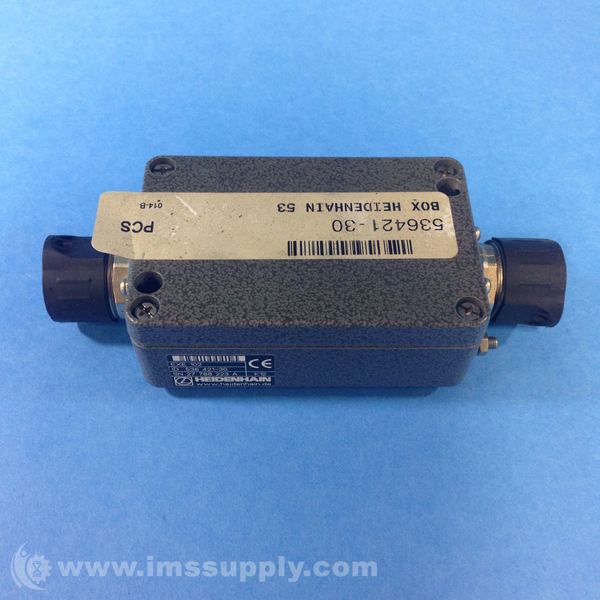

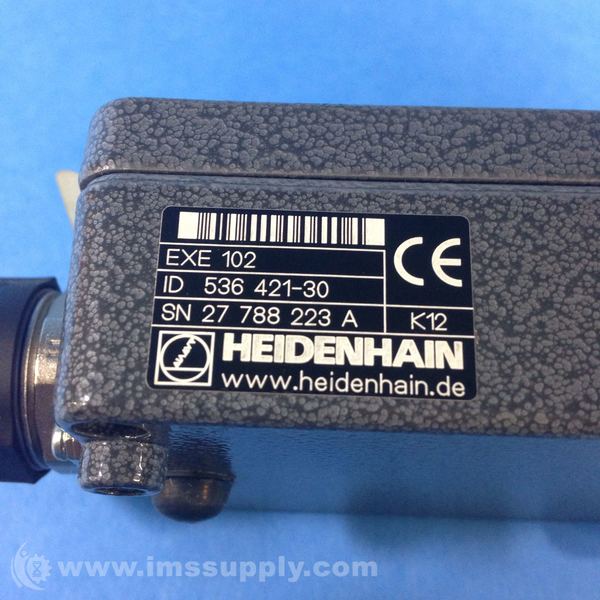

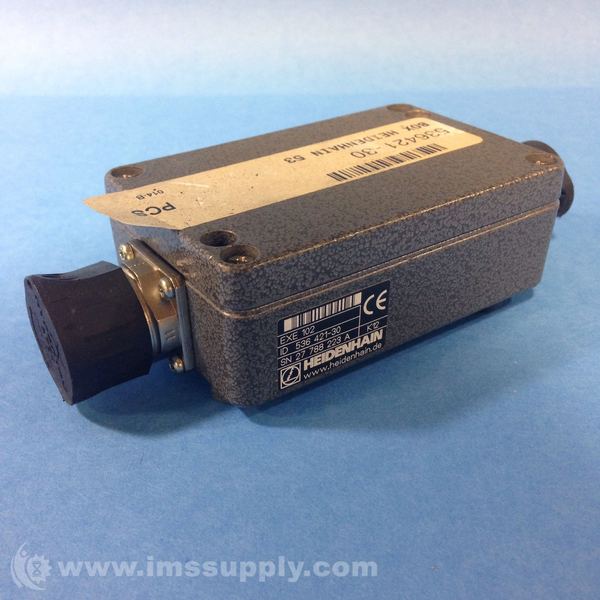

HEIDENHAIN CORP 536 421-30 EXE102 INTERPOLATION BOX
Quick Overview
Manufactured By: HEIDENHAIN CORP
Manufacturer Part Number: 536 421-30
IMS Product Code: 1734729
Packaging: Sold Individually
Description:
Digitizer Box
Specifications: EXE 101 EXE 102
Input: 11 µAPP
Electrical Connection: M23 flange socket (female) 9-pin
Cable length: ≤ 30 m for IEncoder ≤ 120 mA
Interpolation1): 5-fold, 10-fold, 20-fold, 25-fold, 50-fold, 100-fold
Input frequency1) for interpolation: Nominal values2)
EXE 101: 5-fold 100 kHz 100 kHz 100 kHz 100 kHz 80 kHz 50 kHz 25 kHz
10-fold 100 kHz 100 kHz 66 kHz 50 kHz 40 kHz 25 kHz 12.5 kHz
EXE 102: 20-fold 60 kHz 50 kHz 33 kHz 25 kHz 20 kHz 12.5 kHz 6.25 kHz
25-fold 60 kHz 40 kHz 26 kHz 20 kHz 16 kHz 10 kHz 5 kHz
50-fold 40 kHz 20 kHz 13 kHz 10 kHz 8 kHz 5 kHz 2.5 kHz
100-fold 20 kHz 10 kHz 6.6 kHz 5 kHz 4 kHz 2.5 kHz 1.25 kHz
Output: TTL (clocked)
Electrical connection: M23 flange socket (male) 12-pin
Cable length: ≤ 100 m (Uas ≤ 50 m)
Edge separation a: ≥ 0.100 µs
≥ 0.220 µs
≥ 0.345 µs
≥ 0.465 µs
≥ 0.585 µs
≥ 0.950 µs
≥ 1.925 µs
Reference mark signal1): Pulse width 90° elec. or 270° elec.
Fault indication1): Through fault detection signal Uas or, in addition, Ua1/Ua2 high impedance
Power supply: 5 V ± 5%
Current consumption3): EXE 101: ≤ 120 mA, EXE 102: ≤ 140 mA
Operating temperature: 0 °C to 70 °C
Storage temperature: –30 °C to 80 °C
Vibration 50 to 2000 Hz: ≤ 100 m/s2
Shock 11 ms: ≤ 300 m/s2
Degree of protection: IP 65
Weight: Approx. 0.3 kg
