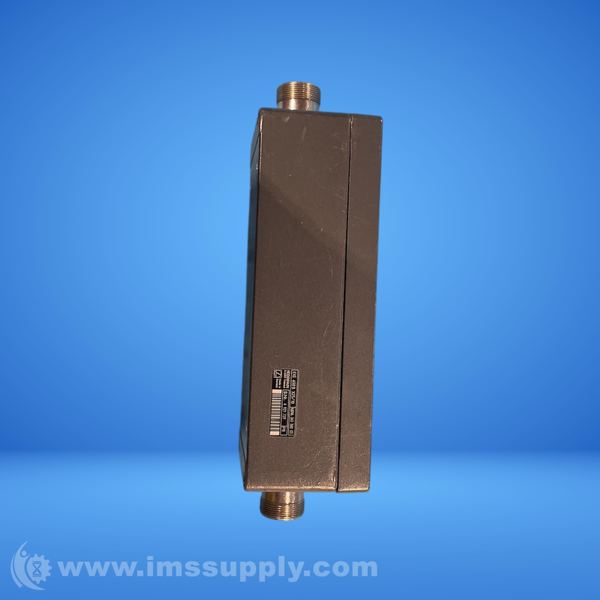

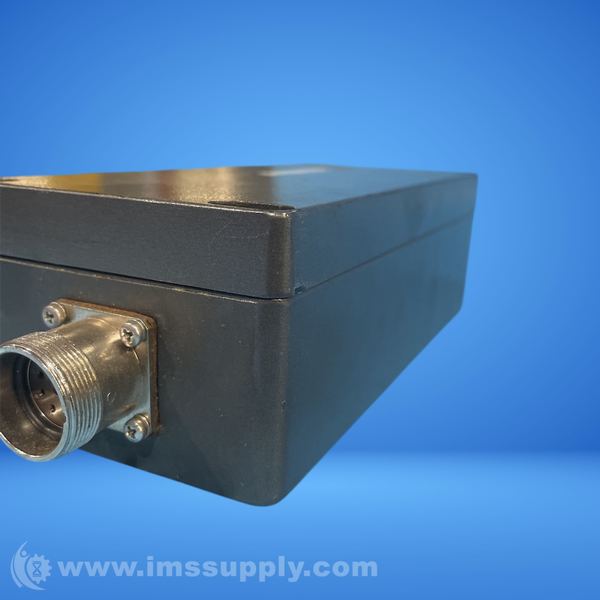

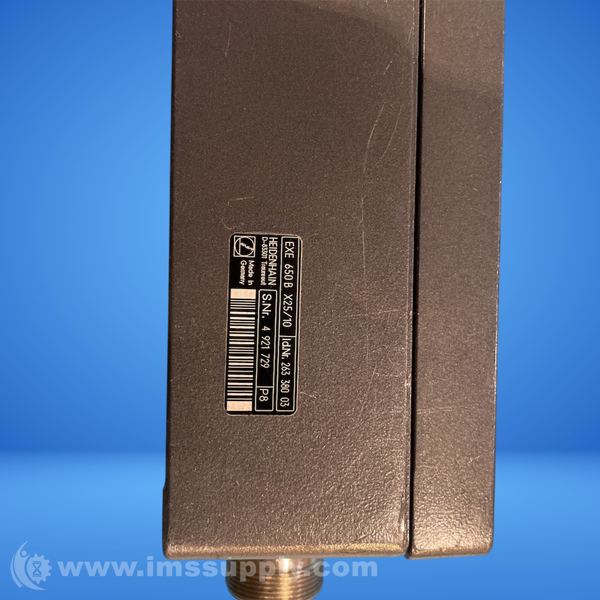

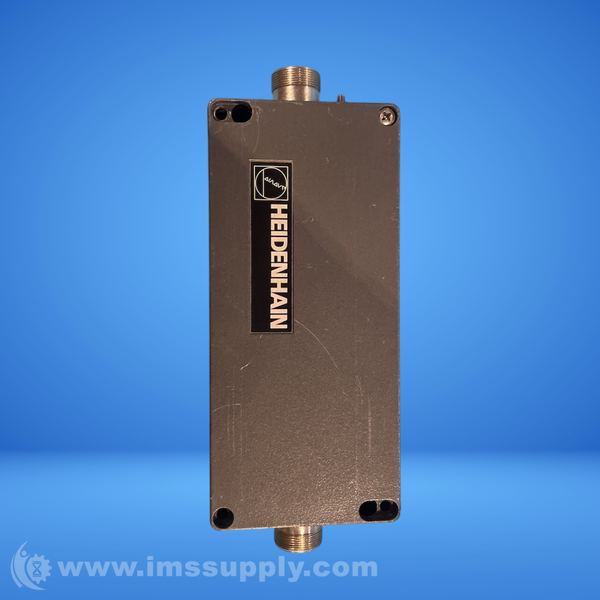

HEIDENHAIN EXE 650B X25/10 ENCODER INTERPOLATOR
Quick Overview
Manufactured By: HEIDENHAIN CORP
Manufacturer Part Number: EXE 650B X25/10
IMS Product Code: 2161729
Packaging: Sold Individually
Description:
Heidenhain EXE 650B X25/10 Encoder Interpolator
Encoder interpolator with 25-fold interpolation, TTL output, 8MHz clock frequency, and 5VDC power requirements.
Specifications
- Encoder Input: 11�App
- Adjustable Output: TTL
- Interpolation: 25-fold
- Input Frequency: 60kHz/40kHz/20kHz/10kHz
- Clock Frequency: 8MHz
- Min Edge Separation: 0.125�s/0.25�s/0.5�s/1�s
- Encoder Input Connector: M23 9-Pin Male Flange Socket
- Output Connector: M23 12-Pin Female Flange Socket
- Power Requirements: 5VDC
- Dimensions: 218 x 78 x 56mm
- Weight: 1.01 kg
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
